Pi-hole DNS server is not working

[Mustafa_Khurram]

Please follow the below template, it will help us to help you!

Expected Behaviour:

Websites should be loading

Actual Behaviour:

Websites are not loading

Debug Token:

https://tricorder.pi-hole.net/hy0sqwch68

[jfb]

From a client that you believe should be connected to the Pi-Hole for DNS, from the command prompt or terminal on that client (and not via ssh or Putty to the Pi), what is the output of

nslookup pi.hole

nslookup pi.hole 192.168.1.249

[Mustafa_Khurram]

nslookup pi.hole

;; connection timed out; no servers could be reached

nslookup pi.hole 192.168.1.249

Server: 192.168.1.249
Address: 192.168.1.249#53

Name: pi.hole
Address: 192.168.1.249
Name: pi.hole
Address: 2604:2000:1484:6e3:6d90:9bbb:ef78:fea4

[jfb]

From this same client, what is the output of ipconfig /all

This will show us the DHCP and DNS details.

[Mustafa_Khurram]

I don't think ipconfig is on linux so I ran ifconfig instead.

ifconfig -a

enp0s31f6: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.1.6  netmask 255.255.255.0  broadcast 192.168.1.255
        inet6 fe80::2206:4607:4c55:3d4c  prefixlen 64  scopeid 0x20<link>
        inet6 2604:2000:1484:6e3:5527:2b1c:717f:7798  prefixlen 64  scopeid 0x0<global>
        inet6 2604:2000:1484:6e3:39f8:3f53:4716:421  prefixlen 64  scopeid 0x0<global>
        ether b0:6e:bf:cf:97:67  txqueuelen 1000  (Ethernet)
        RX packets 1412173  bytes 1500556684 (1.5 GB)
        RX errors 8  dropped 303  overruns 0  frame 4
        TX packets 564551  bytes 92155378 (92.1 MB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
        device interrupt 16  memory 0xf7400000-f7420000

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 18927  bytes 1706596 (1.7 MB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 18927  bytes 1706596 (1.7 MB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

wlp5s0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        ether 40:9f:38:a6:72:b9  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

[jfb]

From the terminal on that Linux client, what are the outputs of the following:

sudo grep -v '#\|^$' /etc/dhcpcd.conf

cat /etc/resolv.conf

[Mustafa_Khurram]

sudo grep -v '#\|^$' /etc/dhcpcd.conf

grep: /etc/dhcpcd.conf: No such file or directory

cat /etc/resolv.conf

> # This file is managed by man:systemd-resolved(8). Do not edit.
> #
> # This is a dynamic resolv.conf file for connecting local clients to the
> # internal DNS stub resolver of systemd-resolved. This file lists all
> # configured search domains.
> #
> # Run "resolvectl status" to see details about the uplink DNS servers
> # currently in use.
> #
> # Third party programs must not access this file directly, but only through the
> # symlink at /etc/resolv.conf. To manage man:resolv.conf(5) in a different way,
> # replace this symlink by a static file or a different symlink.
> #
> # See man:systemd-resolved.service(8) for details about the supported modes of
> # operation for /etc/resolv.conf.
>
> nameserver 127.0.0.53
> options edns0
> search home

[deHakkelaar]

resolvectl status

?

[Mustafa_Khurram]

resolvectl status

Global
       LLMNR setting: no
MulticastDNS setting: no
  DNSOverTLS setting: no
      DNSSEC setting: no
    DNSSEC supported: no
          DNSSEC NTA: 10.in-addr.arpa
                      16.172.in-addr.arpa
                      168.192.in-addr.arpa
                      17.172.in-addr.arpa
                      18.172.in-addr.arpa
                      19.172.in-addr.arpa
                      20.172.in-addr.arpa
                      21.172.in-addr.arpa
                      22.172.in-addr.arpa
                      23.172.in-addr.arpa
                      24.172.in-addr.arpa
                      25.172.in-addr.arpa
                      26.172.in-addr.arpa
                      27.172.in-addr.arpa
                      28.172.in-addr.arpa
                      29.172.in-addr.arpa
                      30.172.in-addr.arpa
lines 1-23...skipping...
Global
       LLMNR setting: no
MulticastDNS setting: no
  DNSOverTLS setting: no
      DNSSEC setting: no
    DNSSEC supported: no
          DNSSEC NTA: 10.in-addr.arpa
                      16.172.in-addr.arpa
                      168.192.in-addr.arpa
                      17.172.in-addr.arpa
                      18.172.in-addr.arpa
                      19.172.in-addr.arpa
                      20.172.in-addr.arpa
                      21.172.in-addr.arpa
                      22.172.in-addr.arpa
                      23.172.in-addr.arpa
                      24.172.in-addr.arpa
                      25.172.in-addr.arpa
                      26.172.in-addr.arpa
                      27.172.in-addr.arpa
                      28.172.in-addr.arpa
                      29.172.in-addr.arpa
                      30.172.in-addr.arpa
                      31.172.in-addr.arpa
                      corp
                      d.f.ip6.arpa
                      home
                      internal
                      intranet
                      lan
                      local
                      private
                      test

Link 3 (wlp5s0)
      Current Scopes: none
DefaultRoute setting: no
       LLMNR setting: yes
MulticastDNS setting: no
  DNSOverTLS setting: no
      DNSSEC setting: no
    DNSSEC supported: no

Link 2 (enp0s31f6)
      Current Scopes: DNS
DefaultRoute setting: yes
       LLMNR setting: yes
MulticastDNS setting: no
  DNSOverTLS setting: no
      DNSSEC setting: no
    DNSSEC supported: no
  Current DNS Server: 192.168.1.1
         DNS Servers: 192.168.1.1
          DNS Domain: ~.
                      home
~
~
~

[deHakkelaar]

@Mustafa_Khurram

Current DNS Server: 192.168.1.1
             DNS Servers: 192.168.1.1

nslookup pi.hole 192.168.1.1

?

[Mustafa_Khurram]

nslookup pi.hole 192.168.1.1
Server: 192.168.1.1
Address: 192.168.1.1#53

** server can't find pi.hole: REFUSED

[deHakkelaar]

Thats different from what you initially posted:

@Mustafa_Khurram

nslookup pi.hole

;; connection timed out; no servers could be reached

Is above the full output ? No "Server" mentioned ?
Has DNS severs changed in meantime ?

[jfb]

Your DNS path through the router doesn't appear to lead to Pi-Hole. When you went straight to Pi-hole the router was out of the loop and it worked.

[deHakkelaar]

Yeah and above.
The lookup should return the IP of Pi-hole for proper blocking to work:

dehakkelaar@laptop:~$ nslookup pi.hole
Server:         10.0.0.2
Address:        10.0.0.2#53

Name:   pi.hole
Address: 10.0.0.2

[Mustafa_Khurram]

nslookup pi.hole 192.168.1.249

Connects to Pi-Hole

nslookup pi.hole

Times out

nslookup pi.hole 192.168.1.1

Server cant find Pi-Hole

Your DNS path through the router doesn't appear to lead to Pi-Hole. When you went straight to Pi-hole the router was out of the loop and it worked.

That's weird because I only changed the DNS in my router setting and not for any of my devices individually.

[deHakkelaar]

Can you post screenshots of all your router DNS and DHCP settings ?
Can paste directly into discourse here.
Try configure the router properly by handing out the Pi-hole IP as a single DNS server to the clients through the DHCP process:

https://docs.pi-hole.net/main/post-install/

If you dont have those options in your router, you could also let Pi-hole do DHCP for your network intead of your router:

How do I use Pi-hole's built in DHCP server (and why would I want to)?

Using Your Existing Router For Network-wide Ad Blocking You might not need to use Pi-hole's DHCP server: In many home environments, your router also functions as your DHCP server. In this case, you can often set Pi-hole to be the DNS server for your network clients in the router's DHCP (or LAN) settings page, which allows all of your network clients to block ads simply by connecting to the network. Setting it up this way is also what makes Pi-hole very powerful for network-wide ad blocking. …

[deHakkelaar]

Is that all there is ? No LAN DHCP settings etc ?
Screenshots posted are for the WAN (Internet) side of the router and not the LAN side where Pi-hole and the clients are connected.

EDIT: ow you might want to redact your "Wan IPv6 Address" from screenshot above.

[jfb]

Turn off IPv6 and restart/renew and see if situation improves.

[deHakkelaar]

Above and disconnect/reconnect network for that Linux test client to have effect.
And dont configure your router to be an upstream DNS server for Pi-hole or you'll be creating a DNS loop!
You'll be missing out on individual client stats on the web GUI with this setup but for that, you'd really need a router with more options.

[Mustafa_Khurram]

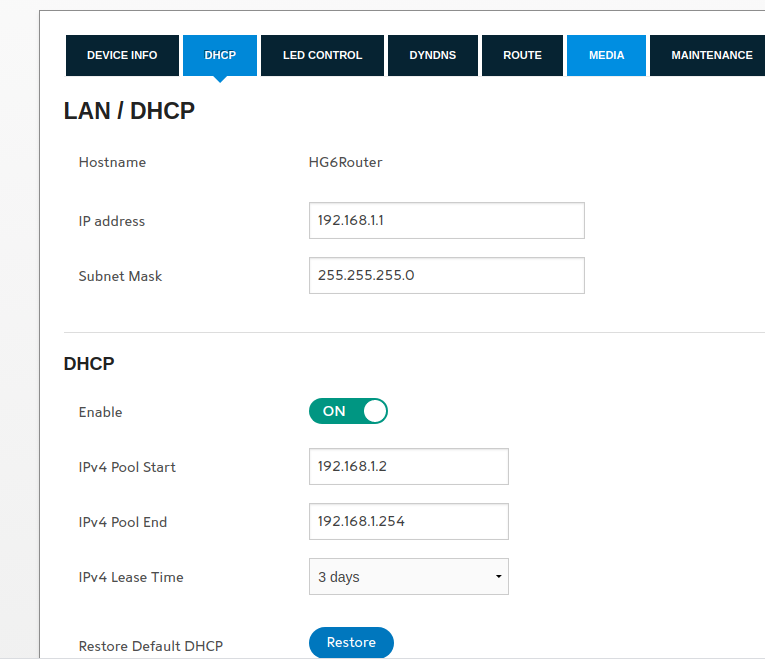

Turn off IPv6 and restart/renew and see if situation improves.

It didn't change anything.

Is there anything here that I can change?
