hey guys

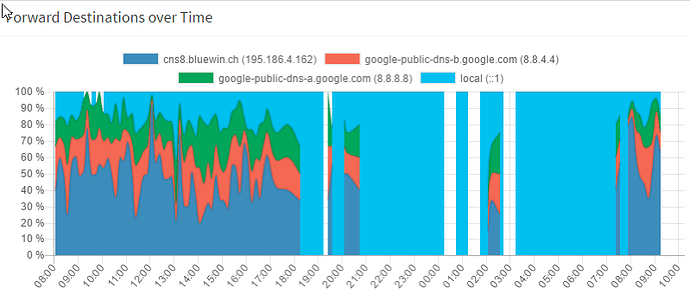

can you tell me why my graph has these strange breaks?
thanks
btw (to developers some more optional tags would be quiet usefully and it would look better)
thanks
Please provide the output of
http://pi.hole/admin/api.php?overTimeDataForwards&getForwardDestinationNames
Note: You have to be logged in in order to get the data.[quote="kint, post:1, topic:2693"]
to developers some more optional tags would be quiet usefully
and it would look better
[/quote]
What do you mean with "optional tags" ?
Hi,
this also was discussed here: forward destinations over time · Issue #21 · pi-hole/FTL · GitHub
But the problem still exists for me.

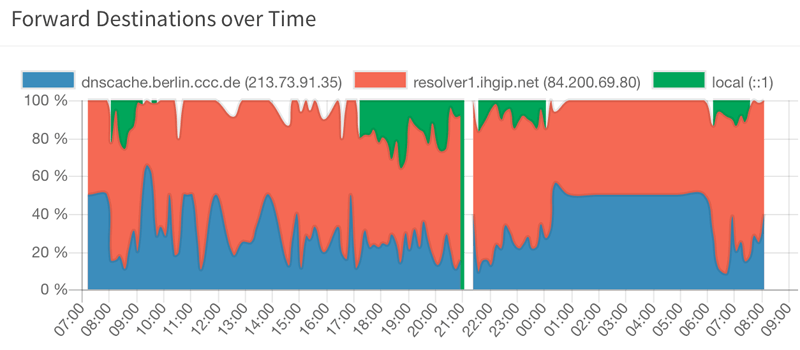

I'm getting a gap between 21:05 and 21:25 with these logs:
"1492714500":[4,19,2],"1492715100":[0,0,1],"1492716300":[2,3,0],"1492716900":[9,67,15]
Maybe this can help...
Frank
Please post the full output so we can load it and examine what the JavaScript is doing
Hi,

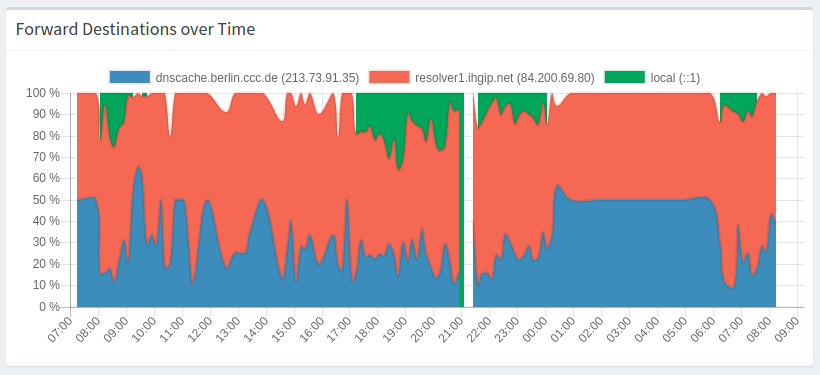

ok, here the log and graphic output:
{"over_time":{"1492664700":[0,0,4],"1492665300":[1,1,0],"1492667700":[1,1,0],"1492668300":[12,48,17],"1492668900":[11,55,4],"1492669500":[9,31,11],"1492670100":[10,58,23],"1492670700":[9,26,7],"1492671300":[21,37,9],"1492671900":[14,54,1],"1492672500":[32,26,1],"1492673100":[34,18,0],"1492673700":[41,25,1],"1492674300":[19,46,1],"1492674900":[1,2,0],"1492675500":[2,5,0],"1492676100":[2,2,0],"1492676700":[4,18,0],"1492677300":[1,3,1],"1492677900":[1,1,0],"1492678500":[2,2,0],"1492679100":[4,4,0],"1492679700":[3,8,0],"1492680300":[2,16,0],"1492682100":[1,1,0],"1492684500":[2,8,1],"1492685700":[3,9,0],"1492686900":[1,3,0],"1492687500":[1,2,0],"1492689300":[1,1,0],"1492691700":[2,11,2],"1492692300":[4,11,0],"1492692900":[2,3,0],"1492693500":[2,14,1],"1492694100":[13,33,0],"1492694700":[15,38,3],"1492695300":[7,14,0],"1492696500":[2,7,1],"1492698300":[1,2,0],"1492698900":[1,3,1],"1492699500":[1,5,0],"1492700100":[1,1,0],"1492700700":[2,15,0],"1492701300":[16,67,20],"1492701900":[43,69,25],"1492702500":[76,200,61],"1492703100":[37,93,24],"1492703700":[4,10,4],"1492704300":[34,78,27],"1492704900":[138,316,133],"1492705500":[53,71,56],"1492706100":[33,75,30],"1492706700":[44,153,111],"1492707300":[80,102,83],"1492707900":[32,103,14],"1492708500":[27,47,11],"1492709100":[10,28,7],"1492709700":[13,17,6],"1492710300":[24,49,22],"1492710900":[24,90,16],"1492711500":[6,28,11],"1492712100":[12,42,20],"1492712700":[20,31,17],"1492713300":[5,18,1],"1492713900":[10,75,8],"1492714500":[4,19,2],"1492715100":[0,0,1],"1492716300":[2,3,0],"1492716900":[9,67,15],"1492717500":[10,47,9],"1492718100":[18,85,10],"1492718700":[14,89,5],"1492719300":[11,34,1],"1492719900":[13,40,6],"1492720500":[16,28,3],"1492721100":[12,26,2],"1492721700":[10,25,6],"1492722300":[18,55,9],"1492722900":[29,82,10],"1492723500":[11,24,4],"1492724100":[15,46,8],"1492724700":[14,38,9],"1492725300":[29,50,4],"1492725900":[45,95,24],"1492726500":[9,18,0],"1492727100":[9,6,1],"1492728900":[1,1,0],"1492732500":[1,1,0],"1492736100":[1,1,0],"1492739700":[1,1,0],"1492743300":[1,1,0],"1492746900":[1,1,0],"1492748100":[24,45,11],"1492748700":[2,14,1],"1492749900":[1,9,1],"1492750500":[23,31,6],"1492751100":[12,38,8],"1492751700":[3,8,1],"1492752300":[13,65,10],"1492752900":[15,66,3],"1492753500":[12,30,0],"1492754100":[20,58,1],"1492754700":[22,29,0],"1492755300":[12,19,0]},"forward_destinations":{"dnscache.berlin.ccc.de|213.73.91.35":2869,"resolver1.ihgip.net|84.200.69.80":6272,"local|::1":696}}
Okay, I see where the problem is coming from. This is the first time we use the new checkout feature for this:
Please try
sudo pihole checkout web fix/overtimegraphs
and see if the issue is solved for you after the usual browser JavaScript cache flushing.
Before

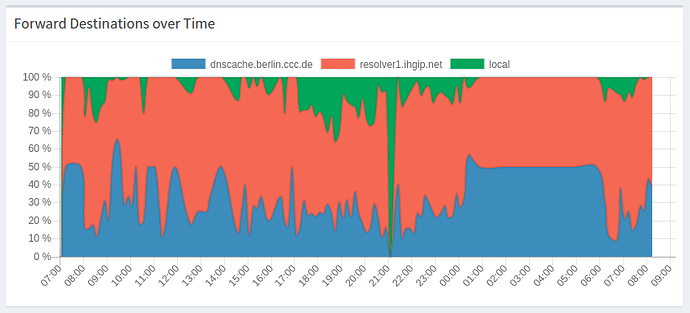

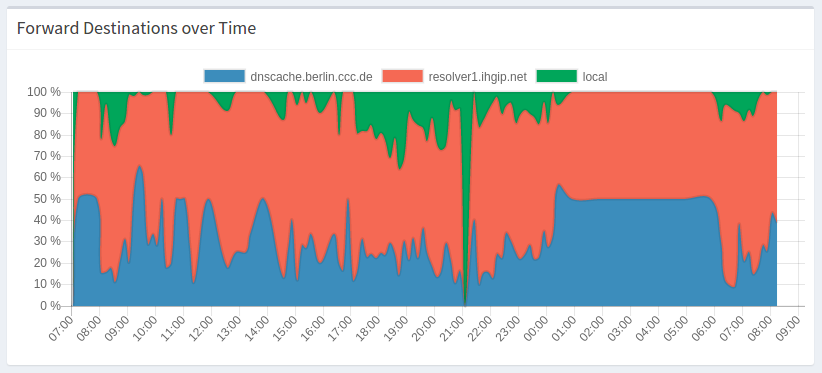

After
1 Like
1 Like
Works great! Thank you for this quick fix!
It has already been merged onto development. You can go back by calling
sudo pihole checkout web devel
1 Like
