Goal:
I want my traffic to go to pihole -> opendns (for web filtering) -> web
I don't want to use family shield (need proxy on occasion)
.
Issue:
Web filtering stopped working when I moved to pihole
OpenDNS ip update client says i'm not connected
.
Setup:
router points to pi's IP
pihole conf files confirmed to have openDNS IPs setup
.
Troubleshooting checks:
with openDNS ip's in my router for dns - i have web filtering (but no pihole obviously)
with pi IP for router DNS, I have NO web filtering
Can you run a pihole -d and get us the token value so we can start to take a look at things for you?
Hi -
I ran pihole -d and attached the log- any help is appreciated!
...can't attach a .txt file; so i'm trying a link to a google doc; I did not see a token in the terminal output, I don't think the upload worked.
log file
.
Edit; i've now realized why i got no "token" - the pi itself can't connect to the net - but otherdevcies can, and the admin page shows dns activity - so that's pretty confusing. I'm assuming pihole didn't install correctly if it killed the pi net access.
Yeah, it looks like your Pi-hole is blocking ads correctly, but it cannot reach the upstream servers. What's the output of
cat /etc/resolv.conf
I was bothered that my install was old. I did a fresh raspian install; pihole install; then updated. lots of reboots. when i got pi-hole up and running again, i lost internet access on the pi again. that's a little bothersome - but i'm glad you guys are helping!
.
here are results for cat / etc/resolv.conf
.
Generated by resolvconf
nameserver 127.0.0.1
What about output from this command
ip route | grep default
and the first couple lines from
traceroute doubleclick.com
traceroute google.com
pi@raspberrypi:~ $ ip route | grep default
default via 192.168.2.1 dev eth0 metric 202
.
pi@raspberrypi:~ $ traceroute doubleclick.com
traceroute to doubleclick.com (192.168.2.3), 30 hops max, 60 byte packets
1 0000mps.webpreview.dsl.net (192.168.2.3) 0.117 ms 0.061 ms 0.049 ms
.
traceroute google.com ...
pi@raspberrypi:~ $ traceroute google.com
google.com: Name or service not known
Cannot handle "host" cmdline arg `google.com' on position 1 (argc 1)
ping 192.168.2.1
pi@raspberrypi:~ $ ping 192.168.2.1
PING 192.168.2.1 (192.168.2.1) 56(84) bytes of data.
From 192.168.2.3 icmp_seq=1 Destination Host Unreachable
From 192.168.2.3 icmp_seq=2 Destination Host Unreachable
From 192.168.2.3 icmp_seq=3 Destination Host Unreachable
From 192.168.2.3 icmp_seq=4 Destination Host Unreachable
arp -a | grep '(192.168.2.1)'
pi@raspberrypi:~ $ arp -a | grep '(192.168.2.1)'
? (192.168.2.1) at c4:a8:1d:8a:78:a4 [ether] on eth0
How is your Pi connected to the network?
When you ping it, it seems to be responding with a different IP address...
Since your Pi cannot access your router (gateway) you won't be able to get out to the Internet, thus no upstream servers can be contacted.
pi has an ethernet cable running to 1 of 4 router ports
yea; whats weird is everything was just fine (web access) but web fails when i install pihole (or perhaps when i set the dns on the router to point to pi)

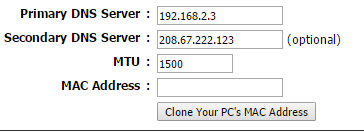

Send a screenshot of where you made this change in the router.
attached.
Stumped for now. I'll try again tomorrow
is it in some kind of death loop - pi tries to get dns from router, but gets sent back to itself...? but i assume that's the whole point. Alright - I'll wait on you (because i have no clue!).
If i uninstall pihole, and see if internet access returns, would that be of any help?
The problem is DEFINATELY turned on/off when I set the DNS to the pi on the router; when i set it to pi, pi loses WAN access; when it's not set it can access the WAN.
Can other devices on your network get out to the Internet?
Your D-Link router is responding to pings with your Pi's IP address for some reason.
