This process collects information from your Pi-hole, and optionally uploads it to a unique and random directory on tricorder.pi-hole.net.
The intent of this script is to allow users to self-diagnose their installations. This is accomplished by running tests against our software and providing the user with links to FAQ articles when a problem is detected. Since we are a small team and Pi-hole has been growing steadily, it is our hope that this will help us spend more time on development.
NOTE: All log files auto-delete after 48 hours and ONLY the Pi-hole developers can access your data via the given token. We have taken these extra steps to secure your data and will work to further reduce any personal information gathered.
*** [ INITIALIZING ]
[i] 2018-03-26:16:40:14 debug log has been initialized.
*** [ INITIALIZING ] Sourcing setup variables
[i] Sourcing /etc/pihole/setupVars.conf...
*** [ DIAGNOSING ]: Core version
[✓] Core:
[i] Branch: master
[i] Commit: 80c3b93-dirty
*** [ DIAGNOSING ]: Web version
*** [ DIAGNOSING ]: FTL version
[✓] FTL: vDev- (https://discourse.pi-hole.net/t/how-do-i-update-pi-hole/249)
*** [ DIAGNOSING ]: dnsmasq version
[i] 2.72
*** [ DIAGNOSING ]: lighttpd version
[i] opt
*** [ DIAGNOSING ]: php version
[i] 5.6.33
*** [ DIAGNOSING ]: Operating system
[✓] Raspbian GNU/Linux 8 (jessie)
*** [ DIAGNOSING ]: SELinux
[i] SELinux not detected
*** [ DIAGNOSING ]: Processor
*** [ DIAGNOSING ]: Networking
[✓] IPv4 address(es) bound to the eth0 interface:
192.168.50.50/24 does not match the IP found in /etc/pihole/setupVars.conf (https://discourse.pi-hole.net/t/use-ipv6-ula-addresses-for-pi-hole/2127)
[✓] IPv6 address(es) bound to the eth0 interface:
fe80::cf5d:8e0a:3135:4cd0 does not match the IP found in /etc/pihole/setupVars.conf (https://discourse.pi-hole.net/t/use-ipv6-ula-addresses-for-pi-hole/2127)
^ Please note that you may have more than one IP address listed.
As long as one of them is green, and it matches what is in /etc/pihole/setupVars.conf, there is no need for concern.
The link to the FAQ is for an issue that sometimes occurs when the IPv6 address changes, which is why we check for it.
[i] Default IPv4 gateway: 192.168.50.254
* Pinging 192.168.50.254...
[✓] Gateway responded.
*** [ DIAGNOSING ]: Ports in use
[] is in use by
[11333] is in use by rspamd
[143] is in use by dovecot
[143] is in use by systemd
[] is in use by
[] is in use by
[22] is in use by sshd
[25] is in use by master
[3306] is in use by mysqld
[389] is in use by slapd
[4190] is in use by dovecot
[443] is in use by nginx
[465] is in use by master
[5222] is in use by lua5.1
[5269] is in use by lua5.1
[53] is in use by dnsmasq
[587] is in use by master
[80] is in use by lighttpd
[993] is in use by dovecot
[993] is in use by systemd
[9981] is in use by tvheadend
[9982] is in use by tvheadend
[11334] is in use by rspamd
[5290] is in use by lua5.1
[5582] is in use by lua5.1
[61209] is in use by glances
[6379] is in use by redis-ser
[6787] is in use by yunohost-
*** [ DIAGNOSING ]: Name resolution (IPv4) using a random blocked domain and a known ad-serving domain
[✓] beta.adyea.com is 127.0.0.1 via localhost (127.0.0.1)
[✓] beta.adyea.com is 127.0.0.1 via Pi-hole (127.0.0.1)
[✓] doubleclick.com is 172.217.19.238 via a remote, public DNS server (8.8.8.8)
*** [ DIAGNOSING ]: Pi-hole processes
[✓] dnsmasq daemon is active
[✗] lighttpd daemon is unknown
[✓] pihole-FTL daemon is active
*** [ DIAGNOSING ]: Setup variables
PIHOLE_INTERFACE=eth0
IPV4_ADDRESS=127.0.0.1
IPV6_ADDRESS=
PIHOLE_DNS_1=
PIHOLE_DNS_2=
QUERY_LOGGING=true
INSTALL_WEB=true
*** [ DIAGNOSING ]: Dashboard and block page
[✗] X-Header does not match or could not be retrieved.
HTTP/1.1 302 Moved Temporarily
Server: nginx
Date: Mon, 26 Mar 2018 16:40:35 GMT
Content-Type: text/html
Content-Length: 154
Connection: keep-alive
Location: https://localhost/yunohost/admin
[✗] X-Header does not match or could not be retrieved.
HTTP/1.1 302 Moved Temporarily
Server: nginx
Date: Mon, 26 Mar 2018 16:40:35 GMT
Content-Type: text/html
Content-Length: 154
Connection: keep-alive
Location: https://localhost/yunohost/admin
*** [ DIAGNOSING ]: Gravity list
-rw-r--r-- 1 root root 3983636 Mar 25 02:00 /etc/pihole/gravity.list
-----head of gravity.list------
127.0.0.1 0.0.0.0
127.0.0.1 0000mps.webpreview.dsl.net
127.0.0.1 0001.2waky.com
127.0.0.1 000dom.revenuedirect.com
-----tail of gravity.list------
127.0.0.1 zzsyw.com
127.0.0.1 zztxdown.com
127.0.0.1 zzz.clickbank.net
127.0.0.1 zz.zeroredirect1.com
*** [ DIAGNOSING ]: contents of /etc/pihole
-rw-r--r-- 1 root root 633 Mar 24 23:07 /etc/pihole/adlists.list
https://raw.githubusercontent.com/StevenBlack/hosts/master/hosts
https://mirror1.malwaredomains.com/files/justdomains
http://sysctl.org/cameleon/hosts
https://zeustracker.abuse.ch/blocklist.php?download=domainblocklist
https://s3.amazonaws.com/lists.disconnect.me/simple_tracking.txt
https://s3.amazonaws.com/lists.disconnect.me/simple_ad.txt
https://hosts-file.net/ad_servers.txt
-rw-r--r-- 1 root root 37 Mar 25 02:00 /etc/pihole/local.list
127.0.0.1 domaine.fr
127.0.0.1 pi.hole
-rw-r--r-- 1 root root 206 Mar 24 23:03 /etc/pihole/logrotate
/var/log/pihole.log {
daily
copytruncate
rotate 5
compress
delaycompress
notifempty
nomail
}
/var/log/pihole-FTL.log {
weekly
copytruncate
rotate 3
compress
delaycompress
notifempty
nomail
}
-rw-r--r-- 1 root root 117 Mar 24 23:07 /etc/pihole/whitelist.txt
raw.githubusercontent.com
mirror1.malwaredomains.com
sysctl.org
zeustracker.abuse.ch
s3.amazonaws.com
hosts-file.net
*** [ DIAGNOSING ]: contents of /etc/dnsmasq.d
-rw-r--r-- 1 root root 1514 Mar 24 23:34 /etc/dnsmasq.d/01-pihole.conf
addn-hosts=/etc/pihole/gravity.list
addn-hosts=/etc/pihole/black.list
addn-hosts=/etc/pihole/local.list
domain-needed
localise-queries
bogus-priv
server=
server=
interface=eth0
cache-size=10000
log-queries
log-facility=/var/log/pihole.log
local-ttl=2
log-async
*** [ DIAGNOSING ]: contents of /etc/lighttpd
/etc/lighttpd does not exist.
*** [ DIAGNOSING ]: contents of /etc/cron.d
-rw-r--r-- 1 root root 1500 Mar 24 23:07 /etc/cron.d/pihole
59 1 * * 7 root PATH="$PATH:/usr/local/bin/" pihole updateGravity
00 00 * * * root PATH="$PATH:/usr/local/bin/" pihole flush once quiet
@reboot root /usr/sbin/logrotate /etc/pihole/logrotate
*** [ DIAGNOSING ]: contents of /var/log/lighttpd
/var/log/lighttpd does not exist.
*** [ DIAGNOSING ]: contents of /var/log
-rw-r--r-- 1 pihole pihole 157476 Mar 26 16:35 /var/log/pihole-FTL.log
[2018-03-26 00:00:05.544] Gravity list entries: 122287
[2018-03-26 00:00:05.545] No blacklist present
[2018-03-26 00:00:05.545] No wildcard blocking list present
[2018-03-26 00:00:05.545] Reading from /var/log/pihole.log.1 (rw-r--r--)
[2018-03-26 00:00:05.545] Notice: Increasing queries struct size from 0 to 10000 (320.39 KB)
[2018-03-26 00:00:05.545] Notice: Increasing overTime struct size from 0 to 100 (324.39 KB)
[2018-03-26 00:00:05.545] Notice: Increasing forwarded struct size from 0 to 4 (324.47 KB)
[2018-03-26 00:00:05.586] New forward server: 80.67.169.12 ns0.fdn.org (0/4)
[2018-03-26 00:00:05.587] Notice: Increasing domains struct size from 0 to 1000 (344.49 KB)
[2018-03-26 00:00:05.587] Notice: Increasing clients struct size from 0 to 10 (344.68 KB)
[2018-03-26 00:00:05.587] New client: 127.0.0.1 localhost (0/10)
[2018-03-26 00:00:05.652] New forward server: 80.67.169.40 ns1.fdn.org (1/4)
[2018-03-26 00:00:05.656] New client: 192.168.50.49 (1/10)
[2018-03-26 00:00:05.661] New client: 192.168.50.51 (2/10)
[2018-03-26 00:00:05.663] New client: 74.82.47.50 scan-09l.shadowserver.org (3/10)
[2018-03-26 00:00:05.673] New client: 192.168.50.47 (4/10)

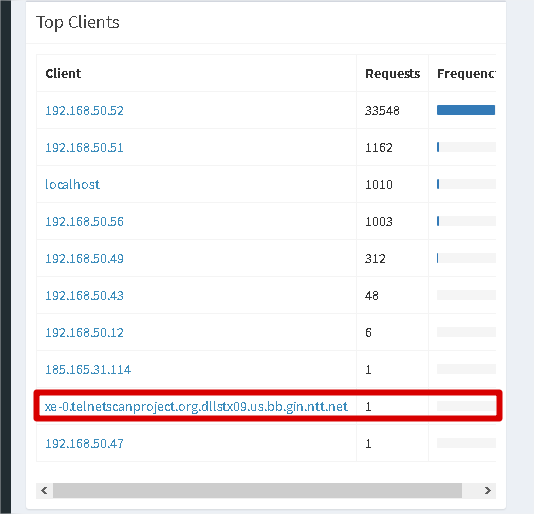

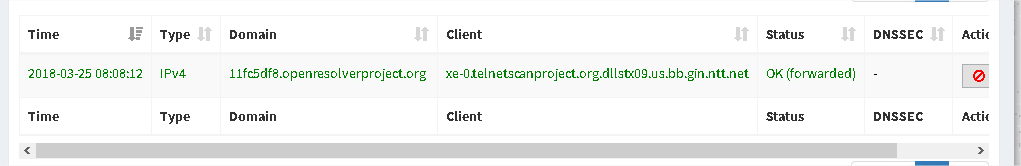

[2018-03-26 00:00:05.679] New client: 129.250.206.86 xe-0.telnetscanproject.org.dllstx09.us.bb.gin.ntt.net (5/10)
[2018-03-26 00:00:05.689] New client: 192.168.50.52 (6/10)
[2018-03-26 00:00:05.708] New client: 192.168.50.56 (7/10)
[2018-03-26 00:00:05.851] New client: 192.168.50.12 (8/10)
[2018-03-26 00:00:06.351] Notice: Increasing queries struct size from 10000 to 20000 (686.82 KB)
[2018-03-26 00:00:06.700] Notice: Increasing domains struct size from 1000 to 2000 (711.68 KB)
[2018-03-26 00:00:06.785] New client: 192.168.50.43 (9/10)
[2018-03-26 00:00:06.812] Notice: Increasing clients struct size from 10 to 20 (713.35 KB)
[2018-03-26 00:00:07.074] Notice: Increasing queries struct size from 20000 to 30000 (1.04 MB)
*** [ DIAGNOSING ]: Pi-hole log
-rw-r--r-- 1 dnsmasq root 1797796505 Mar 26 16:40 /var/log/pihole.log
-----head of pihole.log------
Mar 26 00:00:05 dnsmasq[751]: query[PTR] 12.169.67.80.in-addr.arpa from 127.0.0.1
Mar 26 00:00:05 dnsmasq[751]: forwarded 12.169.67.80.in-addr.arpa to 80.67.169.12
Mar 26 00:00:05 dnsmasq[751]: forwarded 12.169.67.80.in-addr.arpa to 80.67.169.40
Mar 26 00:00:05 dnsmasq[751]: reply 80.67.169.12 is ns0.fdn.org
Mar 26 00:00:05 dnsmasq[751]: reply 80.67.169.12 is ns0.fdn.fr
Mar 26 00:00:05 dnsmasq[751]: query[PTR] 40.169.67.80.in-addr.arpa from 127.0.0.1
Mar 26 00:00:05 dnsmasq[751]: forwarded 40.169.67.80.in-addr.arpa to 80.67.169.12
Mar 26 00:00:05 dnsmasq[751]: reply 80.67.169.40 is ns1.fdn.org
Mar 26 00:00:05 dnsmasq[751]: query[PTR] 49.50.168.192.in-addr.arpa from 127.0.0.1
Mar 26 00:00:05 dnsmasq[751]: config 192.168.50.49 is NXDOMAIN
Mar 26 00:00:05 dnsmasq[751]: query[PTR] 51.50.168.192.in-addr.arpa from 127.0.0.1
Mar 26 00:00:05 dnsmasq[751]: config 192.168.50.51 is NXDOMAIN
Mar 26 00:00:05 dnsmasq[751]: query[PTR] 47.50.168.192.in-addr.arpa from 127.0.0.1
Mar 26 00:00:05 dnsmasq[751]: config 192.168.50.47 is NXDOMAIN
Mar 26 00:00:05 dnsmasq[751]: query[PTR] 52.50.168.192.in-addr.arpa from 127.0.0.1
Mar 26 00:00:05 dnsmasq[751]: config 192.168.50.52 is NXDOMAIN
Mar 26 00:00:05 dnsmasq[751]: query[PTR] 56.50.168.192.in-addr.arpa from 127.0.0.1
Mar 26 00:00:05 dnsmasq[751]: config 192.168.50.56 is NXDOMAIN
Mar 26 00:00:05 dnsmasq[751]: query[PTR] 12.50.168.192.in-addr.arpa from 127.0.0.1
Mar 26 00:00:05 dnsmasq[751]: config 192.168.50.12 is NXDOMAIN
