Pihole failing to resolve DNS

dishwashrman · June 8, 2019, 8:21pm

Please follow the below template, it will help us to help you!

Expected Behaviour:

Browsing to a site from a device on my wifi will load the page and block adds

Actual Behaviour:

Browsing to a site results in a "server IP address could not be found" error. I did not set up the pihole to work across my entire network (yet), but was just testing from a laptop by following the third set of instructions in this guide. After I do this setup my device does not show up as a client in the pihole admin console

Debug Token:

[Replace this text with the debug token provided from running pihole -d (or running the debug script through the web interface]

jfb · June 8, 2019, 9:45pm

Please upload a debug log and post the token here so we can look under the hood.

jfb · June 8, 2019, 9:48pm

Also, what OS is your client laptop using? If Windows, then please post the output of ipconfig/all on that client.

dishwashrman · June 8, 2019, 9:50pm

See link below. I'm not sure if there will be anything helpful there as it seems like my laptop isn't connecting to the pihole for DNS at all. I can ping the IP from my laptop and get a response, though

https://tricorder.pi-hole.net/8sj9gexy1g

jfb · June 8, 2019, 9:53pm

From your debug log, some connectivity problems on your Pi - I'm only showing the IPv4 part but IPv6 has similar problems. Since there is no outward-facing IP address available, none of the clients can communicate with the Pi (and thus the Pi-Hole). Fix this problem and your Pi-Hole should work.

*** [ DIAGNOSING ]: Networking
[✗] No IPv4 address(es) found on the eth0 interface.

[✗] No IPv6 address(es) found on the eth0 interface.

[i] Default IPv4 gateway: 192.168.1.254
   * Pinging 192.168.1.254...
[✗] Gateway did not respond. (https://discourse.pi-hole.net/t/why-is-a-default-gateway-important-for-pi-hole/3546)

    PIHOLE_INTERFACE=eth0
    IPV4_ADDRESS=192.168.1.64/24

ip addr may shed some light on the IP configuration of the Pi

dishwashrman · June 8, 2019, 10:14pm

Ok, I think I've fixed the connectivity issues. I'm now able to connect to pihole from my laptop, and I can log in to the admin portal & see I now have two clients. However, it doesn't seem like my laptop is generating anything in the console--is there some other step I need to take for it to start actually blocking ads?

jfb · June 8, 2019, 10:25pm

Nothing more should be required. Generate a new debug log and post the token.

dishwashrman · June 8, 2019, 11:01pm

Ok the internet issues actually weren't resolved. I'm still able to connect to the admin console and SSH onto the pi, but it's giving the IPV4 error in when I run debug. Do you know how I can resolve that? I have assigned it a static IP address--see screenshot from my router settings below

Output from my desktop from I run ipconfig/all
Windows IP Configuration

Host Name . . . . . . . . . . . . : DESKTOP-6D4G7JD
Primary Dns Suffix . . . . . . . :
Node Type . . . . . . . . . . . . : Hybrid
IP Routing Enabled. . . . . . . . : No
WINS Proxy Enabled. . . . . . . . : No
DNS Suffix Search List. . . . . . : home

Ethernet adapter Ethernet:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Intel(R) Ethernet Connection (2) I219-V
Physical Address. . . . . . . . . : 30-5A-3A-57-B2-15
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes

Wireless LAN adapter Local Area Connection* 12:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft Wi-Fi Direct Virtual Adapter
Physical Address. . . . . . . . . : 12-E3-27-12-8F-67
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes

Wireless LAN adapter Local Area Connection* 13:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft Wi-Fi Direct Virtual Adapter #2
Physical Address. . . . . . . . . : 22-E3-27-12-8F-67
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes

Wireless LAN adapter Wi-Fi:

Connection-specific DNS Suffix . : home
Description . . . . . . . . . . . : Qualcomm Atheros AR938x Wireless Network Adapter
Physical Address. . . . . . . . . : 60-E3-27-12-8F-67
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes
IPv6 Address. . . . . . . . . . . : 2a00:23c4:b416:5d00:cdbe:d1a0:ecff:ca7e(Preferred)
IPv6 Address. . . . . . . . . . . : fdaa:bbcc:ddee:0:cdbe:d1a0:ecff:ca7e(Preferred)
Temporary IPv6 Address. . . . . . : 2a00:23c4:b416:5d00:c542:6be4:1ab:2fb2(Preferred)
Temporary IPv6 Address. . . . . . : fdaa:bbcc:ddee:0:c542:6be4:1ab:2fb2(Preferred)
Link-local IPv6 Address . . . . . : fe80::cdbe:d1a0:ecff:ca7e%4(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.1.65(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Lease Obtained. . . . . . . . . . : Saturday, June 8, 2019 6:05:22 PM
Lease Expires . . . . . . . . . . : Sunday, June 9, 2019 11:46:29 PM
Default Gateway . . . . . . . . . : fe80::da7d:7fff:fef2:e7c1%4
192.168.1.254
DHCP Server . . . . . . . . . . . : 192.168.1.254
DHCPv6 IAID . . . . . . . . . . . : 476111655
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-1E-4E-83-94-30-5A-3A-57-B2-15
DNS Servers . . . . . . . . . . . : 192.168.1.64
NetBIOS over Tcpip. . . . . . . . : Enabled
Connection-specific DNS Suffix Search List :
home

dishwashrman · June 8, 2019, 11:03pm

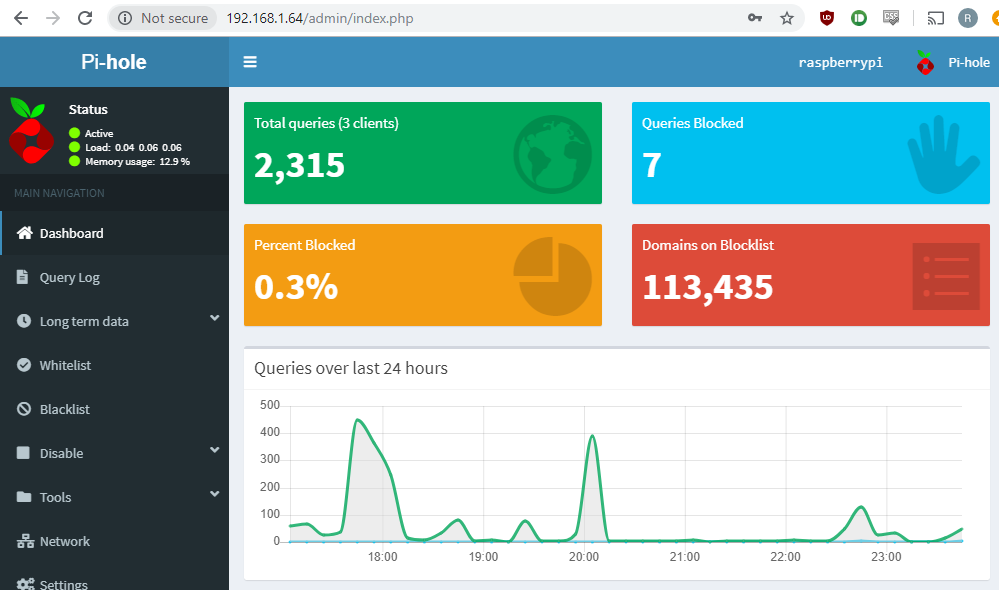

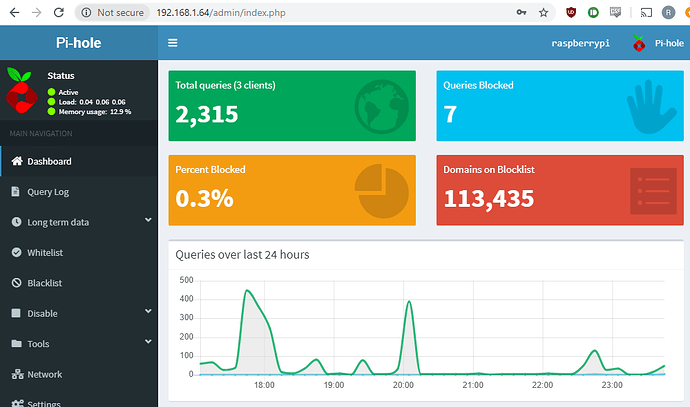

Here's a screenshot of the admin console taken from my desktop just to show it is loading and shows the now 3 connected devices

jfb · June 8, 2019, 11:29pm

Check the output of these and see if the expected clients are connecting:

echo ">top-clients" | nc 127.0.0.1 4711

echo ">top-domains" | nc 127.0.0.1 4711

dishwashrman · June 8, 2019, 11:48pm

Ok, I did a complete de-install and re-install of pihole and got it to finally work I think what happened is when I was initially setting it up I was using wifi and later switched to ethernet. Running either of the reconfiguration options was not fixing whatever issue that introduced, but totally removing it and re-installing seems to have done the trick!

Final issue... now when I browse to the admin console from my desktop (which worked previously) I'm getting a 403 - Forbidden error. Any thoughts on what's contributing to that? Copied the error log below

https://tricorder.pi-hole.net/qohag7p5j8

dishwashrman · June 9, 2019, 12:10am

Ok, so after I reboot the pihole the IPV4 error comes back. Is that a sign that my IP is not actually giving me a static address? Or is there something else I can do to prevent this from happening?

jfb · June 9, 2019, 12:20am

Check the IP configuration of the Pi with this Linux command:

ip addr

dishwashrman · June 9, 2019, 12:27am

This is the output for that before I reboot, when the error is not there:
https://tricorder.pi-hole.net/saeh8e8ocg

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether b8:27:eb:ed:a5:13 brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.64/24 brd 192.168.1.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 2a00:23c4:b416:5d00:46a4:229:1320:3da4/64 scope global mngtmpaddr noprefixroute dynamic
       valid_lft 21474830sec preferred_lft 21474830sec
    inet6 fdaa:bbcc:ddee:0:f130:d1a1:4b04:1da2/64 scope global mngtmpaddr noprefixroute
       valid_lft forever preferred_lft forever
    inet6 fe80::ad5:b6bc:2e8a:1478/64 scope link
       valid_lft forever preferred_lft forever
3: wlan0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether b8:27:eb:b8:f0:46 brd ff:ff:ff:ff:ff:ff
    inet6 2a00:23c4:b416:5d00:6e6:708b:48fe:ccca/64 scope global mngtmpaddr noprefixroute dynamic
       valid_lft 21474831sec preferred_lft 21474831sec
    inet6 fdaa:bbcc:ddee:0:ca2d:d460:f2f9:72b4/64 scope global mngtmpaddr noprefixroute
       valid_lft forever preferred_lft forever
    inet6 fe80::8bb:9844:7d15:7bc0/64 scope link
       valid_lft forever preferred_lft forever

And this is the output after I reboot when the IPv4 error is there:
https://tricorder.pi-hole.net/ubherd08l7

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether b8:27:eb:ed:a5:13 brd ff:ff:ff:ff:ff:ff
    inet6 2a00:23c4:b416:5d00:46a4:229:1320:3da4/64 scope global mngtmpaddr noprefixroute dynamic
       valid_lft 21474829sec preferred_lft 21474829sec
    inet6 fdaa:bbcc:ddee:0:f130:d1a1:4b04:1da2/64 scope global mngtmpaddr noprefixroute
       valid_lft forever preferred_lft forever
    inet6 fe80::ad5:b6bc:2e8a:1478/64 scope link
       valid_lft forever preferred_lft forever
3: wlan0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether b8:27:eb:b8:f0:46 brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.64/24 brd 192.168.1.255 scope global wlan0
       valid_lft forever preferred_lft forever
    inet6 2a00:23c4:b416:5d00:6e6:708b:48fe:ccca/64 scope global mngtmpaddr noprefixroute dynamic
       valid_lft 21474829sec preferred_lft 21474829sec
    inet6 fdaa:bbcc:ddee:0:ca2d:d460:f2f9:72b4/64 scope global mngtmpaddr noprefixroute
       valid_lft forever preferred_lft forever
    inet6 fe80::8bb:9844:7d15:7bc0/64 scope link
       valid_lft forever preferred_lft forever

jfb · June 9, 2019, 12:48am

When you reboot, your IP is reverting to WiFi. Disable the WiFi and ensure that MAC address is not in the router reservation. Then, run pihole -r and select reconfigure for the ethernet IP address.

dishwashrman · June 9, 2019, 1:00pm

Thanks, this fixed that issue! I couldn't figure out what was going on with the admin page, but I figured something went wrong with the un-installs/installs, so I totally rebuilt the raspberry pi and re-did the pihole setup and that appears to have worked
