Expected Behaviour:
I've setup and configured Pi-hole on a ODROID C4. This device also functions VPN gateway / proxy for my network. This guide pretty much sums up my setup however I've the following differences:
- Using wireguard + Mullvad instead of NordVPN
- Using a ODROID C4 instead of a RPi 4
The VPN gateway is working fine and all my devices are using this device as gateway. Pi-hole is running the latest version and conditional forwarding is turned off in the configuration. I'm using cloudflared as DNS server (127.0.0.1:5053), however I've tried without running this as well to no difference.
The wireguard configuration contains a DNS Server entry which points to the local machine since I want ALL DNS queries to be resolved by the Pi-hole.
Actual Behaviour:
My problem is that browsing certain websites is extremely slow. It doesn't happen all the time, but frequently enough that it's noticeable. Sometimes it can take up to almost 30 seconds to load a web page. Things I tried to resolve the issue:
- Disable IPv6
- Using the iptables rules from here
- Disable conditional forwarding
- Change the IPV4_ADDRESS and IPV6_ADDRESS in the setupVars.conf to 0.0.0.0 / 0000:0000:0000(etc..)

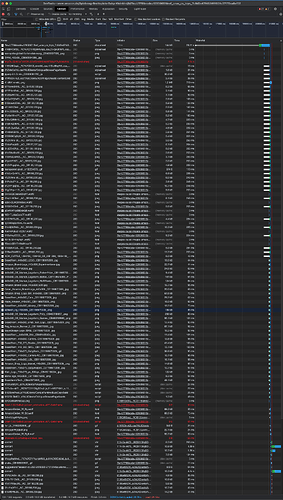

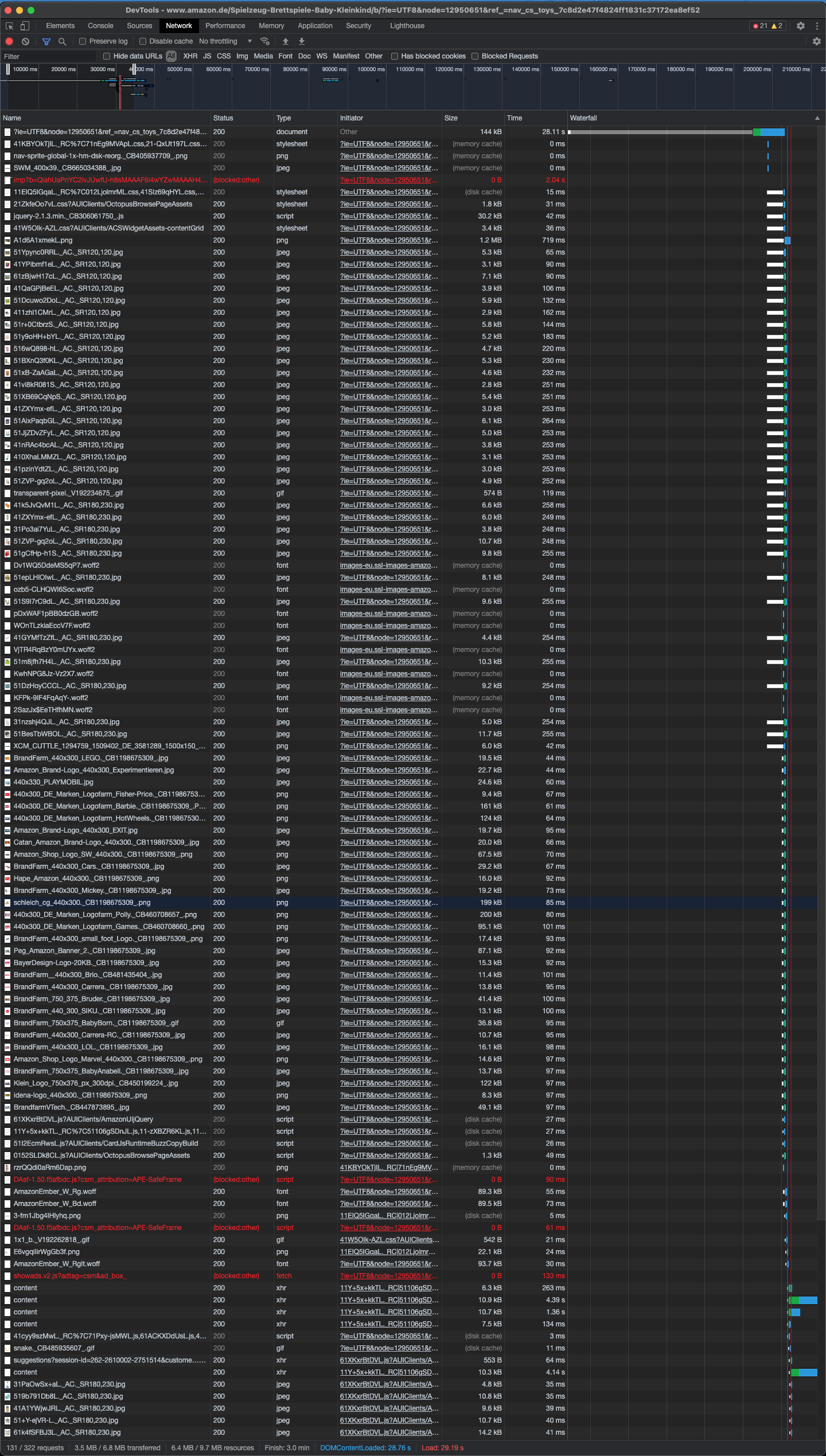

I tried different browsers (Google, Brave, Firefox) and the results are similar. If I configure cloudflare DNS (1.1.1.1, 1.0.0.1) manually on my network interface I never experience the slowness. The ODROID C4 load is at the bare minimum so I doubt it is a resource issue. See below an example of loading a page from amazon.de where it took 29.19s to load the page:
The weird thing is that if I use "dig" to measure performance there's no significant delay noticeable:
dig a amazon.de @10.13.37.20 -p 53 | grep time
;; Query time: 83 msec
dig a amazon.de @10.13.37.20 -p 53 | grep time
;; Query time: 2 msec
dig a amazon.de @10.13.37.20 -p 53 | grep time
;; Query time: 2 msec
dig a amazon.de @8.8.8.8 -p 53 | grep time
;; Query time: 24 msec
dig a amazon.de @8.8.8.8 -p 53 | grep time
;; Query time: 19 msec
dig a amazon.de @8.8.8.8 -p 53 | grep time
;; Query time: 19 msec
I'm pretty sure something is wrong with my setup rather then my browser or device since it is happening throughout my entire network (iPhone, Apple TV, Windows devices & MacOS devices)
Debug Token:
I've generated and uploaded the debug logs. I went through it myself and couldn't find directly any obvious errors that would lead to this issue. One thing I'm thinking about is that perhaps I should configure the gateway as 127.0.0.1 instead of the RFC1918 internal IP, since the device where Pi-hole is installed on is functioning as gateway for the network.
The debug token is: https://tricorder.pi-hole.net/91j9w2xpu9
