Negative Domains on Adlists / Gravity DNS Resolution

broomwalker · March 31, 2023, 10:19pm

Hi all, I've been following this guide where I've been re-doing my Pi4B 8GB in docker/portainer:

Pihole + unbound docker setup on Raspberry Pi – xFelix

I've got two (2) issues that I think are related:

Domains on Adlists are a negative number:

image1259×146 18.8 KB
I get the following error when updating gravity:

[✗] DNS resolution is currently unavailable
[✗] DNS resolution is not available

My docker compose file is the following:

version: '3'

networks:
  dns_net:
    driver: bridge
    ipam:
        config:
        - subnet: 172.22.0.0/16

services:
  pihole:
    container_name: pihole
    hostname: pihole
    image: pihole/pihole:latest
    networks:
      dns_net:
        ipv4_address: 172.22.0.6
    ports:
    - "53:53/tcp"
    - "53:53/udp"
    - "8080:80/tcp"
    environment:
    - 'TZ=Australia/Sydney'
    - 'WEBPASSWORD=password'
    - 'DNS1=172.20.0.7#5053'
    - 'DNS2=no'
    volumes:
    - '/home/pi/pihole/etc-pihole/:/etc/pihole/'
    - '/home/pi/pihole/etc-dnsmasq.d/:/etc/dnsmasq.d/'
    restart: unless-stopped
  unbound:
    container_name: unbound
    image: mvance/unbound-rpi:latest
    networks:
      dns_net:
        ipv4_address: 172.22.0.7
    volumes:
    - /home/pi/unbound:/opt/unbound/etc/unbound
    ports:
    - "5053:5053/tcp"
    - "5053:5053/udp"
    healthcheck:
      disable: true
    restart: unless-stopped

Thank you

Bucking_Horn · March 31, 2023, 10:29pm

Those two observations are likely unrelated.

is likely caused by:

not matching:

Once you've fixed that, please upload a debug log and post just the token URL that is generated after the log is uploaded by running the following command from the Pi-hole host terminal:

pihole -d

or do it through the Web interface:

Tools > Generate Debug Log

broomwalker · April 1, 2023, 9:40am

Wow, what a mistake. Thank you!
I've made the update but updating Gravity still is an issue.

Portainer view showing update:

https://tricorder.pi-hole.net/2rUFIj1a/

Bucking_Horn · April 1, 2023, 3:03pm

Your gravity database seems empty:

*** [ DIAGNOSING ]: Gravity Database
-rw-rw-r-- 1 pihole pihole 92K Apr  1 01:31 /etc/pihole/gravity.db

Try to trigger an online gravity update via Pi-hole's Adlist group management.

Likely unrelated, but you should also set the recommended FTLCONF_LOCAL_IPV4 environment variable for your Pi-hole container to your host's(!) private IP and restart your container.

broomwalker · April 1, 2023, 10:11pm

Thanks, I'm on the "Adlist Group Management" page but I can't find an obvious way to trigger a gravity update? It gives a hint that directs me back to the "Update Gravity" page. Apologies, not sure what you mean for me to do.

Please note that I've had these adlists disabled (besides Pihole's default list) when I did the debug log. Doesn't make any different if I have these enabled or disabled.

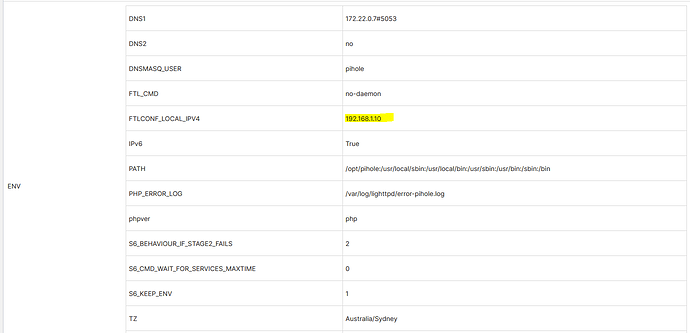

By host you mean the Rasp Pi's IP address? I've done so:

Doesn't seem to have fixed either issue above.

rdwebdesign · April 1, 2023, 10:22pm

Use Tools > Update Gravity.

broomwalker · April 1, 2023, 10:35pm

Oh right, that's what I've been doing & reporting back on in my first (original configuration) & second posts (updated DNS IP). Sorry must have misinterpreted.

I've done it again in light of the FTLCONF_LOCAL_IPV4 update in the docker-compose file:

[✗] DNS resolution is currently unavailable
[✗] DNS resolution is not available

broomwalker · April 22, 2023, 4:22am

Hi, I’m not sure what I might next need to do. Would appreciate any advice or help.

Thank you

Bucking_Horn · April 22, 2023, 6:48am

Please share your current Docker configuration for Pi-hole, as well as a fresh debug token.

broomwalker · April 22, 2023, 9:39am

Thank you. Debug token is here: https://tricorder.pi-hole.net/Qm06mN0v/

Docker compose file is:

version: '3'

networks:
  dns_net:
    driver: bridge
    ipam:
        config:
        - subnet: 172.22.0.0/16

services:
  pihole:
    container_name: pihole
    hostname: pihole
    image: pihole/pihole:latest
    networks:
      dns_net:
        ipv4_address: 172.22.0.6
    ports:
    - "53:53/tcp"
    - "53:53/udp"
    - "8080:80/tcp"
    environment:
    - 'TZ=Australia/Sydney'
    - 'WEBPASSWORD=password'
    - FTLCONF_LOCAL_IPV4=192.168.1.10
    - 'DNS1=172.22.0.7#5053'
    - 'DNS2=no'
    volumes:
    - '/home/pi/pihole/etc-pihole/:/etc/pihole/'
    - '/home/pi/pihole/etc-dnsmasq.d/:/etc/dnsmasq.d/'
    restart: unless-stopped
  unbound:
    container_name: unbound
    image: mvance/unbound-rpi:latest
    networks:
      dns_net:
        ipv4_address: 172.22.0.7
    volumes:
    - /home/pi/unbound:/opt/unbound/etc/unbound
    ports:
    - "5053:5053/tcp"
    - "5053:5053/udp"
    healthcheck:
      disable: true
    restart: unless-stopped

broomwalker · April 24, 2023, 12:27pm

Hi, just following up before the token expires. Thank you

rdwebdesign · April 24, 2023, 5:08pm

Sorry, the token is already expired.

Please, generate a new one.

broomwalker · April 24, 2023, 11:34pm

No worries, thank you!

https://tricorder.pi-hole.net/u8Dd7Ocy/

broomwalker · April 26, 2023, 10:41am

Bump before token expires. Thank you

Bucking_Horn · April 26, 2023, 8:03pm

Your gravity database still seems empty:

*** [ DIAGNOSING ]: Info table
  property              value
  --------------------  ----------------------------------------
  version               15
  Last gravity run finished at:

Please perform an update via Tools | Update Gravity and share the output.

broomwalker · April 26, 2023, 10:53pm

[✗] DNS resolution is currently unavailable
[✗] DNS resolution is not available

Bucking_Horn · April 27, 2023, 6:22am

That would suggest that your machine hosting Docker (or just your Pi-hole container) is not able to resolve upstream DNS.

Please make sure that your Docker host OS is allowing required ports, specifically DNS/port 53 traffic.

Run from that machine, what is the output of:

cat /etc/resolv.conf

nslookup pi.hole

dig +short -t txt versions.pi-hole.net @ns1.pi-hole.net

broomwalker · April 27, 2023, 12:43pm

# Generated by resolvconf
domain home
nameserver 192.168.1.10
nameserver 192.168.1.1

Server:         192.168.1.10
Address:        192.168.1.10#53

Name:   pi.hole
Address: 192.168.1.10

Raspbian=10,11 Ubuntu=20,22 Debian=10,11 Fedora=36,37 CentOS=8,9

Bucking_Horn · April 27, 2023, 6:54pm

That output isn't entirely ok (quite probably, we'd have to take care of your router's 192.168.1.1 showing up as a nameserver at a later time).
Nevertheless, it would suggest that your Pi-hole host is able to resolve DNS.
In particular, the last output confirms that you can access the list of Pi-hole's supported OSs.

That would suggest that your issue is caused by your Pi-hole container's and/or your upstream unbound container's DNS operation failing.

What is the output of:

dig pi.hole @192.168.1.10

(expected answer 192.168.1.10)

dig pi.hole @192.168.1.10 -p 5053

(expected answer NXDOMAIN)

broomwalker · April 27, 2023, 9:38pm

; <<>> DiG 9.16.37-Debian <<>> pi.hole @192.168.1.10
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 63873
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
;; QUESTION SECTION:
;pi.hole.                       IN      A

;; ANSWER SECTION:
pi.hole.                0       IN      A       192.168.1.10

;; Query time: 0 msec
;; SERVER: 192.168.1.10#53(192.168.1.10)
;; WHEN: Fri Apr 28 07:36:47 AEST 2023
;; MSG SIZE  rcvd: 52

; <<>> DiG 9.16.37-Debian <<>> pi.hole @192.168.1.10 -p 5053
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NXDOMAIN, id: 50980
;; flags: qr rd ra; QUERY: 1, ANSWER: 0, AUTHORITY: 1, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1472
;; QUESTION SECTION:
;pi.hole.                       IN      A

;; AUTHORITY SECTION:
.                       770     IN      SOA     a.root-servers.net. nstld.verisign-grs.com. 2023042702 1800 900 604800 86400

;; Query time: 63 msec
;; SERVER: 192.168.1.10#5053(192.168.1.10)
;; WHEN: Fri Apr 28 07:37:53 AEST 2023
;; MSG SIZE  rcvd: 111
