How to configure Pi-hole with my Binatone DT920W router

[jitendravyas]

My hardware

• A macbook
• 3 Android Devices
• 1 Google Home Mini
• 1 Amazon Echo

I have purchased this kit https://uk.pi-supply.com/products/pi-hole-kit-network-wide-ad-blocker

I have connected the kit to my HDMI monitor and Externa Keyboard mouse, for now, to set up.

My router is Binatone DT920w something similar to https://www.youtube.com/watch?v=B2__wk_Yol8

My Kit is connected to my router via LAN cable. Both are on same Wi-Fi.

I have read this guide How do I configure my devices to use Pi-hole as their DNS server? BUT I'm unable to know how to configure my router to use Pi-hole.

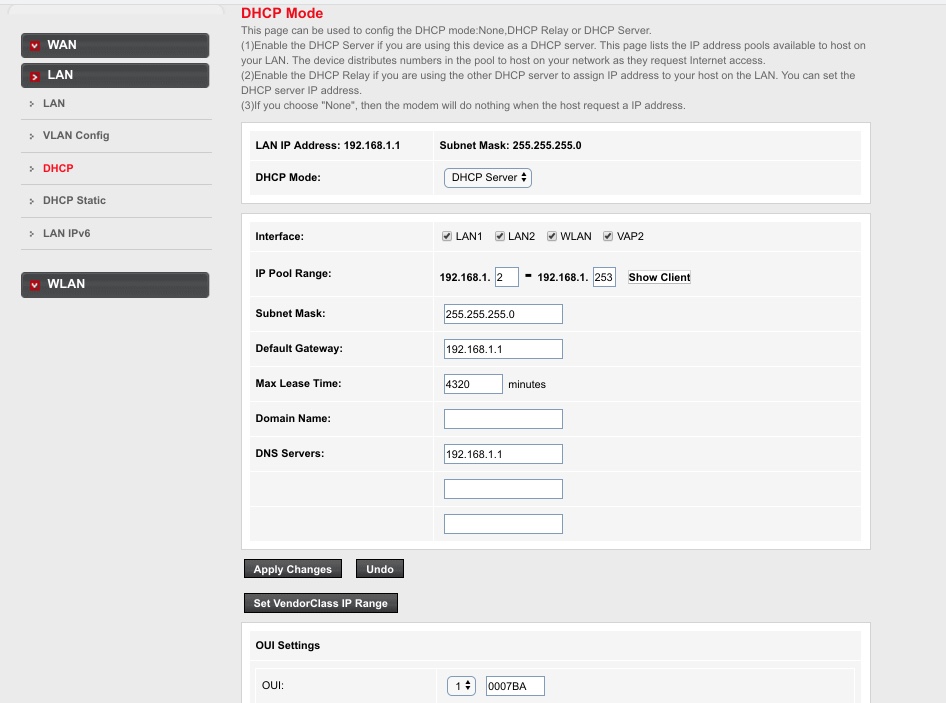

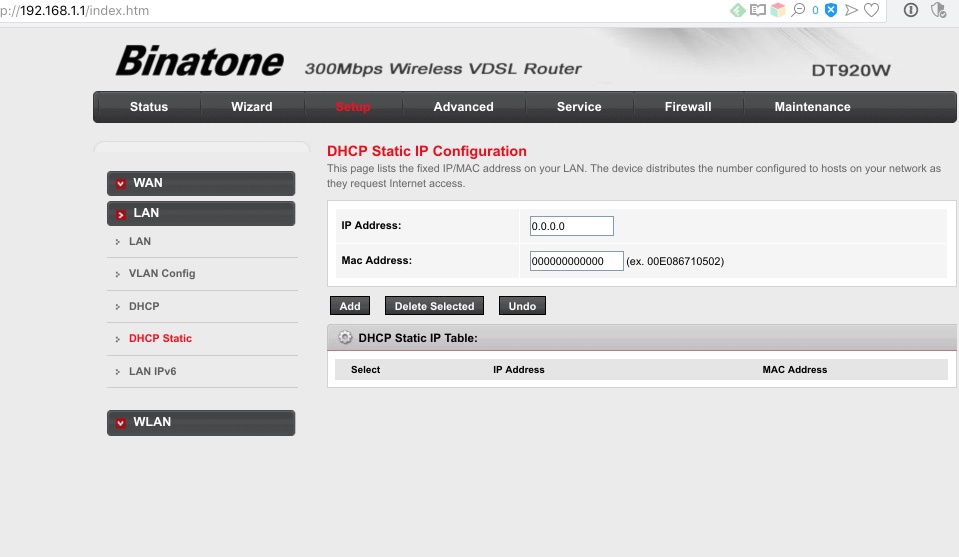

I have these two DHCP related screens in my router.

And

Please help me.

[AndrewZ]

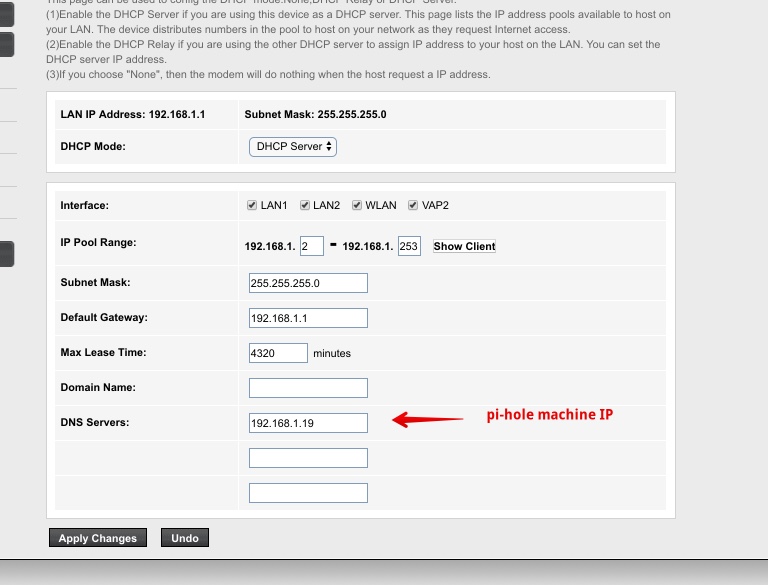

Just put the IP address of Pi-hole into 'DNS Servers', simply replace the existing default value.

[jitendravyas]

How to know IP address of Pi-hole?

[jitendravyas]

Ok I got ipaddress by typing

ping pi-hole

and replaced the ID in my router

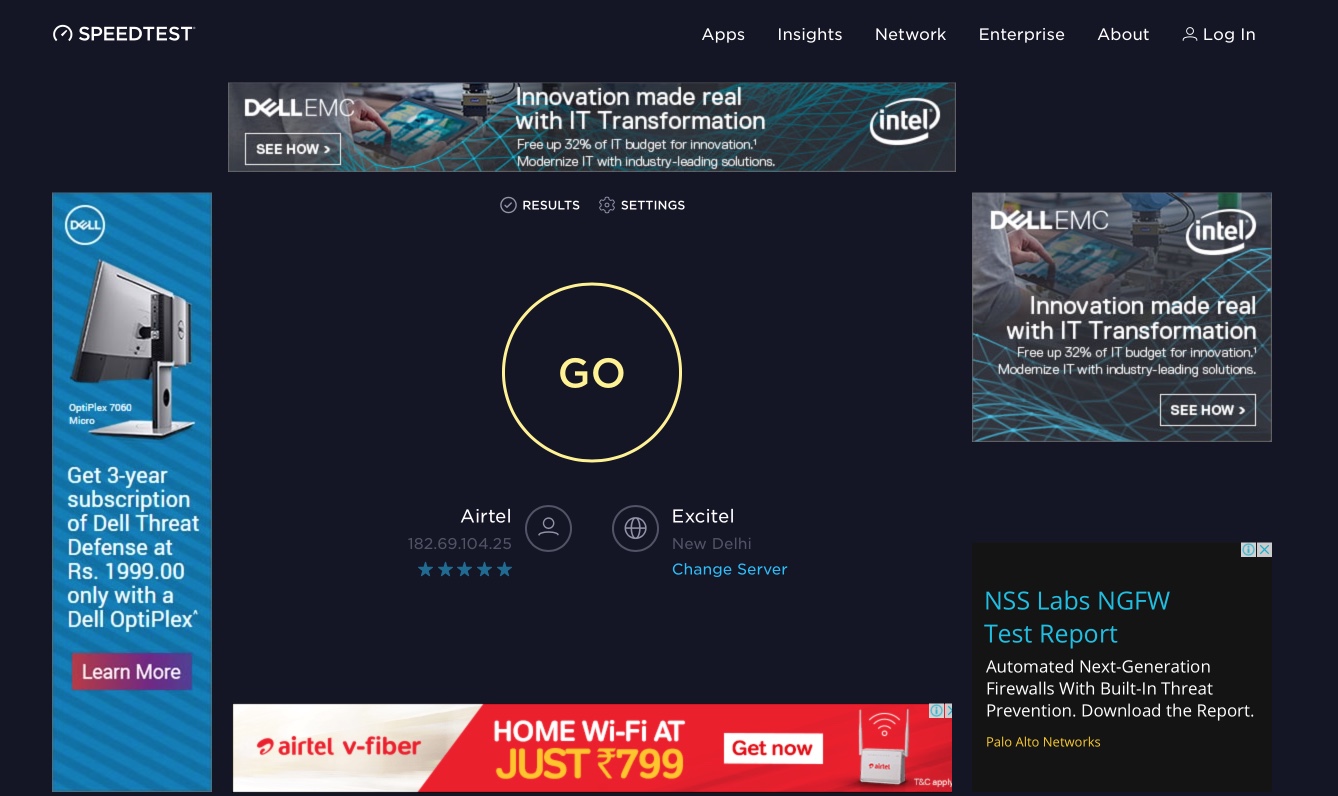

but ads are still displaying on browser on my Macbook

[jfb]

You have a lease duration of 72 hours, so if you did not renew the lease and flush the DNS cache on the MacBook, it will not use the new DNS.

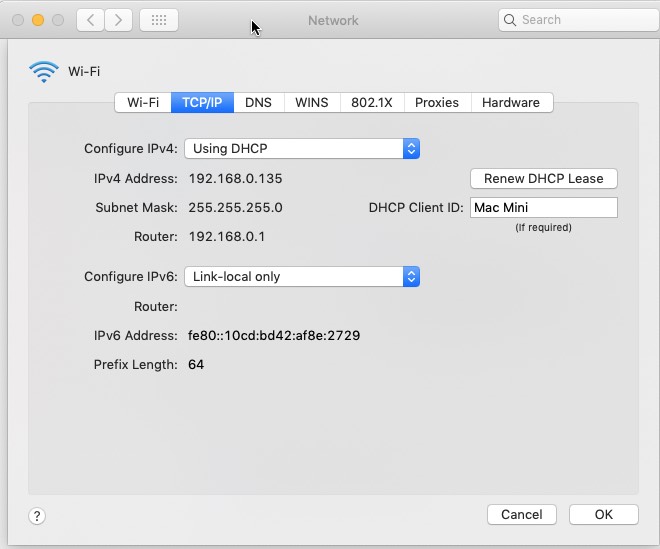

System Preferences > Network > Advanced > TCP/IP > renew lease

Then flush the DNS cache with this terminal command on the Mac:

sudo killall -HUP mDNSResponder

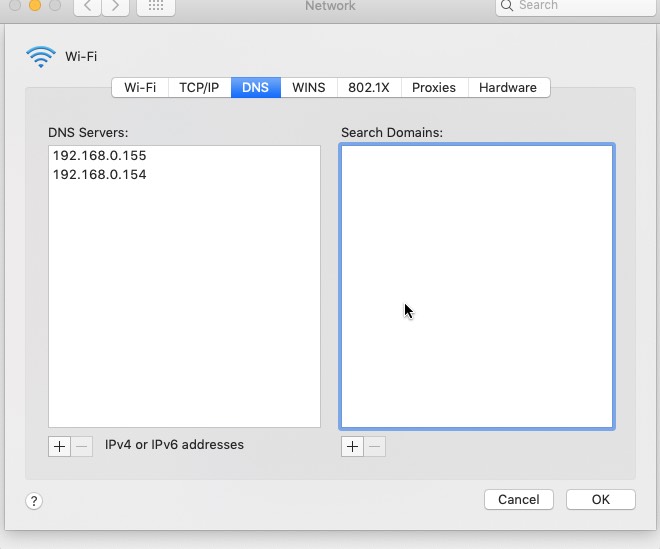

Your DNS tab on the network preference pane should show the DNS address of the Pi-Hole at this point. This example shows two Pi-Holes in parallel, with the IP for each.

If needed, this command shows the order of the nameservers that your Mac is using:

scutil --dns
