DNS Nameserver Spoofability Test went from Moderate to Very poor after configuring Unbound

[GoPihole]

I just configured Unbound on my pihole using office guide and followed this post to configure on openwrt.

I ran DNS Nameserver Spoofability Test before and after Unbound and I see a huge difference. My ISP name is visible in test now

Expected Behaviour:

Before

Actual Behaviour:

After

Debug Token:

https://tricorder.pi-hole.net/yvqaae80dx

Is this behavior right or have I missed something?

[jpgpi250]

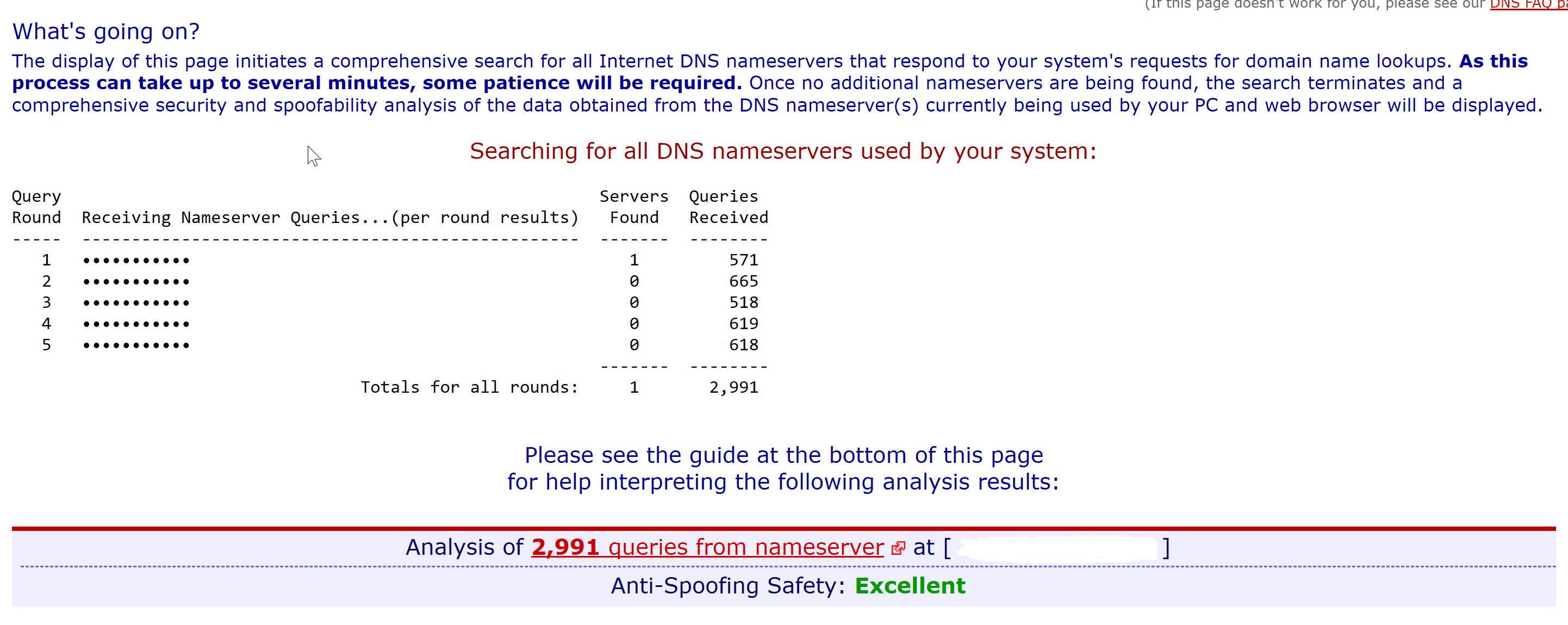

I run pihole + unbound + redis on my pi, was very interested in the result of the spoof test. My firewall is a pfsense, with a NAT rule, redirecting all DNS requests, NOT originating from the pi, to pihole. The result:

Therefore, I assume there is something wrong with your config, pihole and unbound are NOT the cause.

edit
in a discussion on a dutch forum, some people listed the required openwrt rules, required to achieve redirection:

I don't use openwrt, so I'm NOT able to verify this!

#keep network on pi-hole
iptables -t nat -I PREROUTING -i br-lan -p tcp --dport 53 -j DNAT --to 10.0.0.xx:53
iptables -t nat -I PREROUTING -i br-lan -p udp --dport 53 -j DNAT --to 10.0.0.xx:53

#punch DNS hole for pi-hole
iptables -t nat -I PREROUTING -i br-lan -p tcp -s 10.0.0.xx --dport 53 -j ACCEPT
iptables -t nat -I PREROUTING -i br-lan -p udp -s 10.0.0.xx --dport 53 -j ACCEPT

OR, consolidated version:

iptables -t nat -I PREROUTING -i br-lan -p tcp --dport 53 -s ! 10.0.0.xx -j DNAT --to 10.0.0.xx:53
iptables -t nat -I PREROUTING -i br-lan -p udp --dport 53 -s ! 10.0.0.xx -j DNAT --to 10.0.0.xx:53

/edit

[Tntdruid]

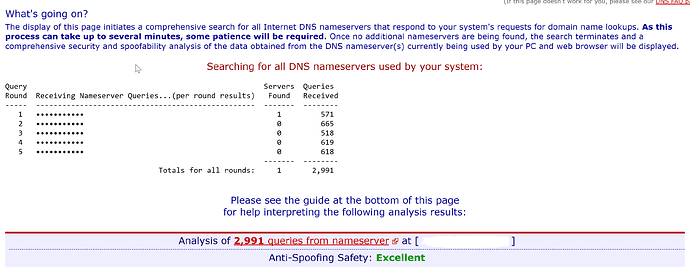

Says: Anti-Spoofing Safety: Excellent

[deHakkelaar]

Same: "Anti-Spoofing Safety: Excellent"

[GoPihole]

Below is my custom firewall rules which I had added during setup, looks different that yours.

iptables -t nat -A PREROUTING -i br-lan ! -s 192.168.31.14 -p udp --dport 53 -j REDIRECT
iptables -t nat -A PREROUTING -i br-lan ! -s 192.168.31.14 -p tcp --dport 53 -j REDIRECT
iptables -t nat -A PREROUTING -i pppoe-wan -p udp --dport 53 -j REDIRECT
iptables -t nat -A PREROUTING -i pppoe-wan -p tcp --dport 53 -j REDIRECT

192.168.31.14 is my pihole
