Clients Cannot Access/Resolv Internet When Using Pihole DNS

Help Community Help
1

The issue I am facing:
I am unable to use pihole from clients. Clients cannot access the internet.

Details about my system:
I am running on a Pi 3 that is also running Homebridge. So, I'm using nginx for my web server.

What I have changed since installing Pi-hole:
Initially, I installed pi-hole while my pi was wireless. Everything seemed to be working correctly. But, I wanted a wired connection. So, I took steps to change this.

  1. I plugged in the ethernet cable
  2. reserved the wired address in the router
  3. modified dhcpcd.conf to use eth0
  4. modified setupVars.conf to use eth0 and the new address
  5. ran pihole -up
  6. ran pihole arpflush
  7. restarted the pi

If my client is using the router's DNS, it can access the Pi-hole webpage where everything appears functional. But, if I set the client DNS to point to the pihole, I cannot access anything outside of my local network. I even see queries in the query logs where the pihole appears to be sending the requests upstream.

If I log onto my pi via ssh, I can ping and dig google.com.

resolv.conf shows my routers address. So, I tried changing that to 127.0.0.1, but that shut down internet access from the pi, so I put it back. I think it's bad practice to change resolv.conf by hand anyway.

I have run pihole -d several times and I'm not noticing any failures or fatal errors.

If I set my client DNS to point to the pi-hole, I cannot ping or dig anything successfully.

I've opened every db in sqlite3 and queried every table looking for any leftover from changing from wlan0 to eth0 or anything with my previous IP. I also grep'd /etc/pihole looking for anything that I might have missed. But, I couldn't find anything.

What troubleshooting steps can I do next to locate the problem? I'm a developer by trade (mostly PL-SQL). I am very comfortable on the command line. But, I'm not particularly strong with networking. I just get by in that area.

1 Like
2

Please upload a debug log and post just the token generated by

pihole -d

allowing to upload when prompted, or do it through the Web interface:

Tools > Generate Debug Log

1 Like
3

hed89fusmo

4

While resolv.conf controls just your RPi 3's DNS resolution (and only that), your observation would suggest that something is suppressing DNS requests to public DNS servers (as that's what Pi-hole is trying to forward its clients DNS queries to).

This suspicon is further supported by your debug log showing that Pi-hole is forwarding requests as received by its clients, but never receives an answer from its upstream DNS servers (click for detailed log excerpt).
*** [ DIAGNOSING ]: Pi-hole log
-rw-r--r-- 1 pihole pihole 129096 Jan 18 11:05 /var/log/pihole.log
   -----head of pihole.log------
   Jan 18 00:00:20 dnsmasq[1483]: query[PTR] 2.2.2.4.in-addr.arpa from 127.0.0.1
   Jan 18 00:00:20 dnsmasq[1483]: forwarded 2.2.2.4.in-addr.arpa to 4.2.2.2
   Jan 18 00:00:20 dnsmasq[1483]: forwarded 2.2.2.4.in-addr.arpa to 4.2.2.1
   Jan 18 00:00:25 dnsmasq[1483]: query[PTR] 2.2.2.4.in-addr.arpa from 127.0.0.1
   Jan 18 00:00:25 dnsmasq[1483]: forwarded 2.2.2.4.in-addr.arpa to 4.2.2.2
   Jan 18 00:00:25 dnsmasq[1483]: forwarded 2.2.2.4.in-addr.arpa to 4.2.2.1
   Jan 18 01:00:00 dnsmasq[1483]: query[PTR] 2.2.2.4.in-addr.arpa from 127.0.0.1
   Jan 18 01:00:00 dnsmasq[1483]: forwarded 2.2.2.4.in-addr.arpa to 4.2.2.2
   Jan 18 01:00:00 dnsmasq[1483]: forwarded 2.2.2.4.in-addr.arpa to 4.2.2.1
   Jan 18 01:00:05 dnsmasq[1483]: query[PTR] 2.2.2.4.in-addr.arpa from 127.0.0.1
   Jan 18 01:00:05 dnsmasq[1483]: forwarded 2.2.2.4.in-addr.arpa to 4.2.2.2
   Jan 18 01:00:05 dnsmasq[1483]: forwarded 2.2.2.4.in-addr.arpa to 4.2.2.1
   Jan 18 01:53:37 dnsmasq[1483]: query[SOA] local from 10.0.0.9
   Jan 18 01:53:37 dnsmasq[1483]: forwarded local to 4.2.2.2
   Jan 18 01:53:37 dnsmasq[1483]: forwarded local to 4.2.2.1
   Jan 18 01:53:38 dnsmasq[1483]: query[SOA] local from 10.0.0.9
   Jan 18 01:53:38 dnsmasq[1483]: forwarded local to 4.2.2.2
   Jan 18 01:53:38 dnsmasq[1483]: forwarded local to 4.2.2.1
   Jan 18 01:56:35 dnsmasq[1483]: query[SOA] local from 10.0.0.9
   Jan 18 01:56:35 dnsmasq[1483]: forwarded local to 4.2.2.2

You could try to confirm this by forcing an nslookup through a public DNS server from your RPi, e.g. through 1.1.1.1:

nslookup duckduckgo.com 1.1.1.1

You may also want to confirm this behaviour from other client machines on your network.

If that lookup fails, check whether outbound(!) port 53 (DNS) is allowed for Pi-hole's RPi 3 host machine on your router.

5

I do experience similar behavior. The DNS requests are received by the pi-hole server, get resolved, but they will not be forwarded to the originating client, thus breaking name resolution. DNS works on the pi-hole with every public server that i tried.

6

Thanks. nslookup succeeded. I did it on my local client and it also worked. I tried it from my client both using and not using the pihole for DNS. To be clear, it worked in all cases.

pi@homebridge : ~ $ nslookup duckduckgo.com 1.1.1.1
Server: 1.1.1.1
Address: 1.1.1.1#53
Non-authoritative answer:
Name: duckduckgo.com
Address: 52.149.246.39
7

That would preclude your router is blocking outbound DNS traffic.

From a client that uses Pi-hole for DNS (not from your Pi-hole machine), what's the output of

nslookup pi.hole

nslookup flurry.com

nslookup flurry.com 80.241.218.68

What's the exact URL you are using to access Pi-hole's admin UI when using your router for DNS?

8

Thank you.

Using my macbook air, I set the DNS to the IP address of the Pi. I ran the following from the macbook terminal:

backdoc@MacBook-Air ~ % nslookup pi.hole
Server: 10.0.0.50
Address: 10.0.0.50#53

Name: pi.hole
Address: 10.0.0.50

backdoc@MacBook-Air ~ % nslookup flurry.com
Server: 10.0.0.50
Address: 10.0.0.50#53

Name: flurry.com
Address: 0.0.0.0

backdoc@MacBook-Air ~ % nslookup flurry.com 80.241.218.68
Server: 80.241.218.68
Address: 80.241.218.68#53

Name: flurry.com
Address: 0.0.0.0

I am using http://10.0.0.50/admin/index.php from my macbook to access my pi, which works whether or not my macbook's DNS is using my pi-hole or my router's address.

Just in case I'm doing something wrong on the client, here are my client settings:

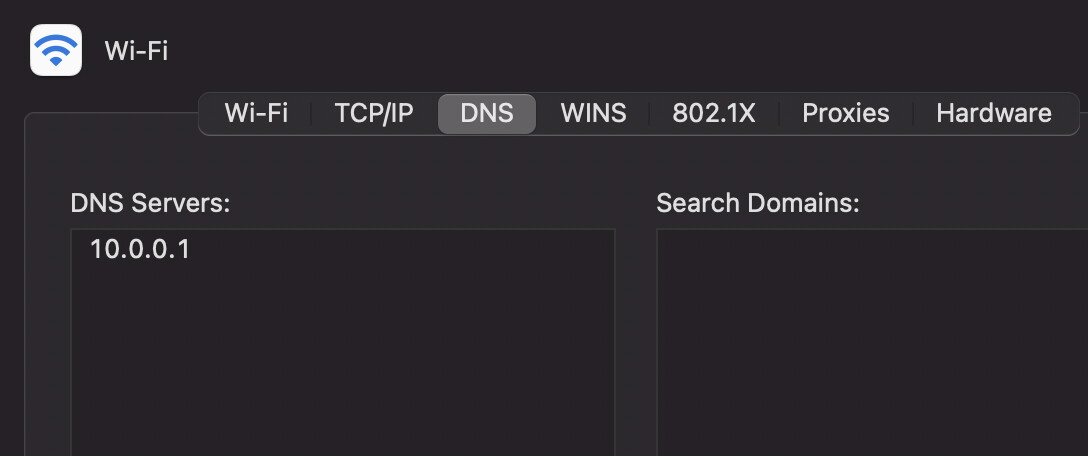

FWIW, my macbook network configuration looks like this:

image1086×408 39.6 KB

And, the DNS alternates between 10.0.0.1 or 10.0.0.50, depending upon whether or not I'm trying to use the pihole for DNS, which in order to reply to the post, I have to be using the router's address atm:

image1088×456 31.7 KB

9

All of your nslookups have returned ok so far:

You can resolve a public domain (duckduckgo.com) through a public DNS server (1.1.1.1), pi.hole can be resolved, Pi-hole does block domains as expected (returning 0.0.0.0 for flurry.com), and so does a public blocking DNS server.

What does nslookup duckduckgo.com pi.hole return?

And how did you configure your router to make use of Pi-hole?

10

I'm confused what "pi.hole" is and how it works. I'm familiar with /etc/hosts and thought it might have been configured there (on the pi-hole), but it wasn't. Consequently, I wasn't sure the context you needed me to run, "nslookup duckduckgo.com pi.hole", so I ran it all 3 ways that I could think of:

  1. From the pi-hole
pi@homebridge:~ $ nslookup duckduckgo.com pi.hole
nslookup: couldn't get address for 'pi.hole': not found
  1. From the client using router's DNS
backdoc@MacBook-Air Downloads % nslookup duckduckgo.com pi.hole
nslookup: couldn't get address for 'pi.hole': not found
  1. From the client configured to use pi-hole for DNS
backdoc@MacBook-Air Downloads % nslookup duckduckgo.com pi.hole
;; connection timed out; no servers could be reached

I go to the router's internet page and instead of using the ISP's DNS, I hard code the pi-hole's IP address. I did that back when my pi-hole was on wifi and it worked fine. But, since I reconfigured it to use ethernet, if I configure the router to use DNS, I can't get out to the Internet at all, even from the router itself. So, of course, no clients can reach out.

11

This domain is defined in /etc/pihole/local.list. In my case, the file contains the following. Your IP's will be different and your unique name on line one will be different, but pi.hole will always appear on line 2.

cat /etc/pihole/local.list
192.168.0.160 nanopi
192.168.0.160 pi.hole

Only the Pi-hole can resolve this name to an IP, which is why we use that as a test in our troubleshooting steps.

The unique name is also used to access the web admin page: http://pi.hole/admin

12

Thanks for the explanation. After sending my reply, I found that file and the custom list, too (which was empty).

I’m away from my house now. But, I think it also had my homebridge hostname.

It looks like /etc/hosts and kinda made sense after finding that file.

I appreciate you helping me troubleshoot. Are there any other files that might have gotten my old IP stuck in it? I’ve already used “find” and “grep” to search. If it’s not a config file somewhere, I don’t know what else to try.

13

Manual changes shouldn't be required if you switch from wlan0 to eth0.
Did you run pihole -r with Reconfigure to that effect?

14

Yes. I did. I think there are two options and I ended up trying repair and reconfigure. Ultimately, I ran pihole -up. And, this evening I noticed that it required updating, so I just ran it again. And, then I tried changing my DNS on my client and still have trouble.

I know it would probably be easier to just wipe it and start over. But, I've never been one to go around problems. I like to plow through them because I feel like I learn from them. Maybe this effort will benefit the project in some way, if no other way than future users encountering the same problem. So, I'm good with troubleshooting this, at least for now. It bugs me not knowing why it's messed up.

15

You may have accumulated a lot of (potentially conflicting) settings in your network interface configuration during your multiple reconfiguration attempts.

Let's have a look at those settings. What is the output of the following command on your Pi-hole machine:

grep -v '^#\|^$' /etc/dhcpcd.conf
16

I did hand edit it. I had never heard of dhcpCd.conf. I remember it being dhcpd.conf. So, that confused me and I accidentally had it named wrong. But, I thought that I had it named wrong when it was actually working. But, just to be clear, I currently have it named dhcpcd.conf (as seen below).

pi@homebridge:~ $ grep -v '^#\|^$' /etc/dhcpcd.conf
hostname
clientid
persistent
option rapid_commit
option domain_name_servers, domain_name, domain_search, host_name
option classless_static_routes
option interface_mtu
require dhcp_server_identifier
slaac private
        #### static ip_address=10.0.0.135/24
        #### static routers=10.0.0.1
        #### static domain_name_servers=208.67.222.222 208.67.220.220
interface eth0
        static ip_address=10.0.0.50/24
        static routers=10.0.0.1
        static domain_name_servers=127.0.0.1
17

A post was split to a new topic: Issues with Pi-hole and WireGuard

18

I want to thank you for your efforts. You have been the only one who has been able to offer some troubleshooting steps. So, I’m very appreciative. But, since nobody else seems to have any suggestions, once you are out of ideas, I may just have to reinstall on another pi or some other box. Are you ready to call it unsolved and move on? I’m good with continuing to dig into it. I’d rather figure it out. I’m just not good enough with networking to know what to try next.

19

Sorry for the delay - your answer managed to escape my attention.

Your dhcpcp.conf looks ok, there's only one active static configuration for eth0. Since you seem to have renamed that file sometime in the past, that may or may not have contributed to your issue, though that's purely speculative.

Since diagnostic nslookups didn't return anything unusual as long as you'd configured your client to use Pi-hole for DNS, there is no real indication as to why it should fail when you configure Pi-hole for your entire network through your router.

So far, we have not examined how your router would actually do that.
It would be preferred to have your router distribute Pi-hole as local DNS server via DHCP. If instead it would only allow configuration of Pi-hole as its upstream DNS server, it may suppress Pi-hole's answers if DNS Rebind Protection is active for Pi-hole.
In that case, exempt Pi-hole from Rebind Protection (or disable it altogether if that's not possible).

20

No apology necessary.

I've been thinking about this and trying to digest your comment so I could reply with something coherent and not too much for you sift through. But, I'm a little confused about some of what you said.

Just to regroup, I'm not currently using the router other than the pihole and the macbook client are getting their IP's from the router, and ultimately the pihole would direct traffic through the router. But, the testing I have been doing has been to point the macbook's DNS to the pihole, which kinda eliminates some of the router issues you raised, doesn't it?

I have a Netgear X6 R8000. I tried to find some documentation on this and looked around the router settings. I didn't see anything on this.

I tried disabling the pihole with the pihole GUI. I thought that might rule out the pihole altogether. I'm not sure if it does rule it out, but it didn't allow my client to get to the internet either. So, I'm not sure if that gained insight.

Where does the traffic go after a query? Is there a log I can tail? I looked at /var/log/pihole.log and /var/log/pihole-FTL.log, but they don't seem to log queries, or at least I couldn't see any. Is there a debug or "very verbose" log I can enable? I'm a command line guy. So, command line tail -f or something is preferable to me over gui. Could there be anything stuck in the database? I don't really have anything I wouldn't mind losing. I have maybe a half dozen things I've whitelisted like sonos and amazon. I could refresh the databases if that would be diagnostic.
