24 hour graph hour axis is not correct

Please follow the below template, it will help us to help you!

Expected Behaviour:

Running the FTL dev version and expecting to see hour increments on the 24 hour graph.

Actual Behaviour:

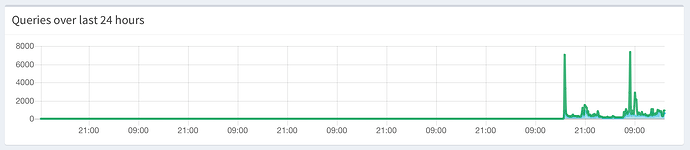

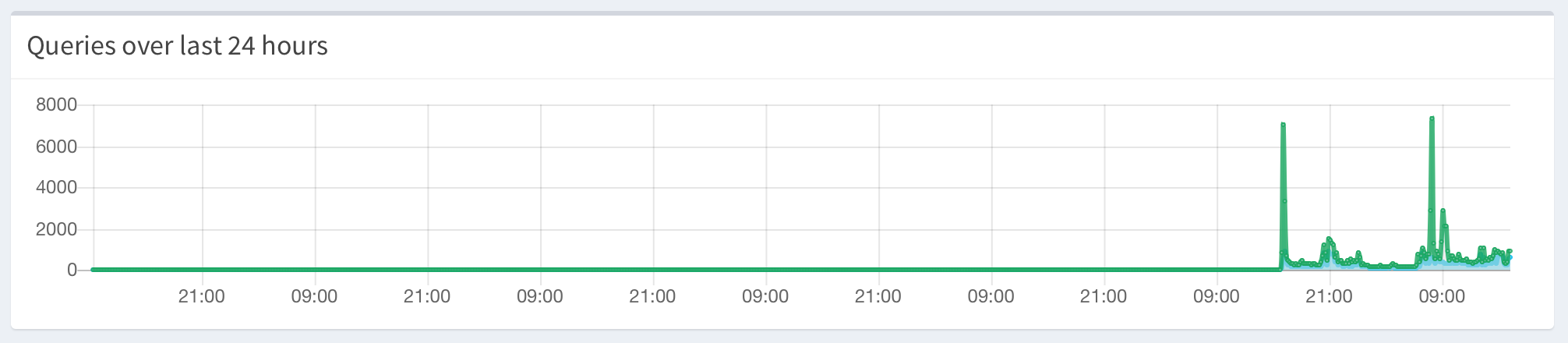

Hour axis only shows 21:00 and 9:00 as per the screenshot.

Debug Token:

pq56iu904a

See 24H Query shows 4x 24H timeframe

I read that before posting and think that the proposed issue/resolution doesn't apply. I set my pi up a few weeks ago, and I tested accessing the interface from my Mac and iPhone with same results. So i know it is not the browser clock and I know it can't be the Pi clock.

The pi was configured for the EDT TZ when I set it up weeks ago and my iPhone and Mac get time via NTP.

What is the output of this command?

echo ">ClientsoverTime" | nc localhost 4711 | tail

It should return some timestamps and numbers. Check that the timestamps are not in the future.

I let it run for a while but get no output.

pi@strat0varius:~ $ date
Sat Jul 14 21:13:12 EDT 2018
pi@strat0varius:~ $ echo ">ClientsoverTime" | nc localhost 4711 | tail

^C
pi@strat0varius:~ $ date
Sat Jul 14 21:14:22 EDT 2018
pi@strat0varius:~ $

Did a netstat to see if I have anything listening on 4711 but don't see anything.

pi@strat0varius:~ $ sudo netstat -nlup
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
udp 0 0 0.0.0.0:53 0.0.0.0:* 3942/pihole-FTL
udp 0 0 0.0.0.0:67 0.0.0.0:* 3942/pihole-FTL
udp 0 0 0.0.0.0:44099 0.0.0.0:* 354/avahi-daemon: r
udp 0 0 0.0.0.0:68 0.0.0.0:* 602/dhcpcd
udp 0 0 0.0.0.0:5353 0.0.0.0:* 354/avahi-daemon: r
udp6 0 0 :::47461 :::* 354/avahi-daemon: r
udp6 0 0 :::53 :::* 3942/pihole-FTL
udp6 0 0 :::5353 :::* 354/avahi-daemon: r

pi@strat0varius:~ $
pi@strat0varius:~ $ sudo netstat -nltp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 127.0.0.1:4711 0.0.0.0:* LISTEN 3942/pihole-FTL
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 643/lighttpd
tcp 0 0 0.0.0.0:53 0.0.0.0:* LISTEN 3942/pihole-FTL
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 621/sshd
tcp6 0 0 ::1:4711 :::* LISTEN 3942/pihole-FTL
tcp6 0 0 :::80 :::* LISTEN 643/lighttpd
tcp6 0 0 :::53 :::* LISTEN 3942/pihole-FTL
tcp6 0 0 :::22 :::* LISTEN 621/sshd

Your second command shows that it is listening on 127.0.0.1 and ::1 (IPv6 localhost). Try using 127.0.0.1 instead of localhost.

I missed that line. Tried 127.0.0.1, no change. Also checked to see if localhost resolves and it does.

pi@strat0varius:~ $ echo ">ClientsoverTime" | nc 127.0.0.1 4711 | tail
^C
pi@strat0varius:~ $ ping localhost
PING localhost(localhost (::1)) 56 data bytes
64 bytes from localhost (::1): icmp_seq=1 ttl=64 time=0.127 ms
64 bytes from localhost (::1): icmp_seq=2 ttl=64 time=0.081 ms
64 bytes from localhost (::1): icmp_seq=3 ttl=64 time=0.071 ms
^C
--- localhost ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2054ms
rtt min/avg/max/mdev = 0.071/0.093/0.127/0.024 ms
pi@strat0varius:~ $

Anything interesting in FTL's log?

tail /var/log/pihole-FTL.log

Nope, not as far as I can tell.
The following command fixed it: sudo service pihole-FTL restart

Based on this behavior and the other user's experienced behavior...I wonder if it is a bug with the dev FTL version.

If you're able to reproduce the issue, share the full FTL log.
