Wildcard domain is blocked even when added to whitelist

Help
1

Installation & Hardware

  • Raspberry Pi 4b Cluster is being used
  • K3s installation of Pi-hole
  • Installation used: GitHub - David-VTUK/k8spihole
  • Ubuntu Server 20.04 Installation

Problem

I have a Grafana install, together with Prometheus which should be accessible over a wildcard domain.
I used "grafana.192.168.1.200.nip.io", but Pi-hole blocks the domain due to not being on any blacklist, which i don't understand. Same goes for "xip.io" domains.

When adding the wildcard domain to the whitelist, it is still getting blocked, with the reason being:"Manually Blacklisted by Wildcard". I just whitelisted it, how can it be blacklisted? When blacklisting the wildcard domain it also displays the message above.

I don't know if i do something wrong or if it's a bug, it's my first time setting up Pi-hole and i couldn't find a solution online. I have added some screenshots.

Any help would be appreciated :slight_smile:

Debug Token:

Debug Token: https://tricorder.pi-hole.net/gnok8vxq1o

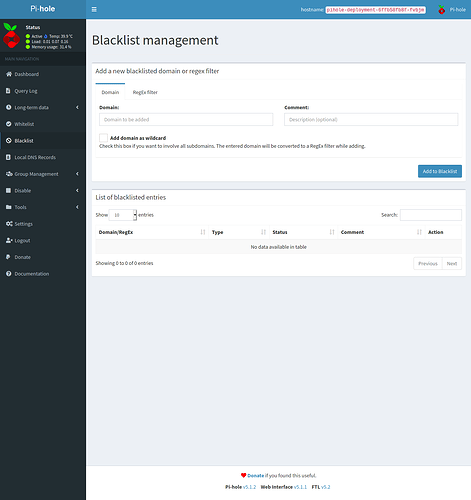

blacklist
blacklist1247×1323 69.4 KB

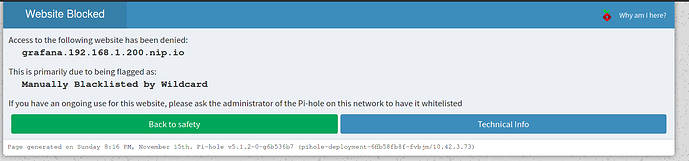

grafana_blacklisted
grafana_blacklisted1283×300 40.3 KB

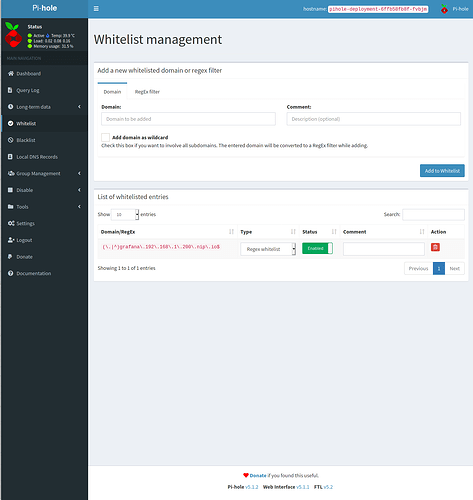

whitelist
whitelist1250×1321 77.7 KB

2

I think the error is misleading. What it really shows (if you would use another blocking mode like NULL) is 404 - page noch found.

Try to run from a client

nslookup grafana.192.168.1.200.nip.io

3
*** [ DIAGNOSING ]: Setup variables
    QUERY_LOGGING=true
    INSTALL_WEB_SERVER=true
    INSTALL_WEB_INTERFACE=true
    LIGHTTPD_ENABLED=
    IPV4_ADDRESS=0.0.0.0

You've told Pi-hole that it's running on 0.0.0.0, which is not possible. Put the right IPv4 address in there.

4

Aight, so i did the nslookup and got this:

nslookup
nslookup520×197 14.6 KB

Does that help in any way?

5

Sure, means that the IP address is correctly returned.

What does curl -I 192.168.1.200 show and curl -I http://grafana.192.168.1.200.nip.io show?

6

Note that 192.168.1.1 isn't what you've configured Pi-hole's network address to be:

*** [ DIAGNOSING ]: Networking
[✓] IPv4 address(es) bound to the eth0 interface:
   10.42.3.73/24 does not match the IP found in /etc/pihole/setupVars.conf (https://discourse.pi-hole.net/t/use-ipv6-ula-addresses-for-pi-hole/2127)
7

I'm sorry, but i'm really new to K3s clustering, and i can't figure out how to edit this config. I also don't know where it is stored, cause it's not at its usual locaton.

Anyway, here is the output of those curls:

1
1367×208 16.5 KB

2
2601×234 23.7 KB

8

You'll need to ask the GitHub - David-VTUK/k8spihole for assistance with K8s.

Does curl -I http://192.168.1.200/admin/ show an X-Pi-hole output? If so, then 192.168.1.200 is Pi-hole and not your grafana install.

9

Yes, this curl does give me an X-Pi-hole output. But because it is a cluster, i can access Pi-hole on multiple IP adresses, same goes for Grafana. Those adresses go from 192.168.1.200-203 (i got 4 Pi's)

10

That's a K8s/K3s issue then and not Pi-hole. Pi-hole is responding as it was designed. It has no idea that grafana is on the same IP address as Pi-hole, they should not be the same IP.

11

Would it help if i chose a different port instead of a wildcard domain? For ex. 192.168.1.200:8080 for grafana?

12

I have no advice to give you. You need to ask the person that wrote the K8s configs.

13

Alright then, thank you very much for your help. I'll open an issue on the k8spihole github.
