Unsure if Pihole+Unbound are blocking ads on iPhone

Help
22

This is the contents of use-extended-statistics.conf:

# DEFINE SERVER
server:
    # EXTENDED STATISTICS
    # Note: Set desired verbosity
    # use-entended-statistics.conf is called after unbound.conf
    # so we can override the verbosity set there
    # Verbosity levels are
    # 1 - operational information
    # 2 - detailed operational information
    # 3 - query level information
    # 4 - algorithm level information
    # 5 - client level information
    verbosity: 1

    # Note: Number of seconds between statistics log updates
    # Rarely required often, but needing to be fresh when it
    # is, I have chosen ten minutes as my 'sweet spot'
    statistics-interval: 600

    # Note: Enable extended statistics
    extended-statistics: yes

    # Note: Enable cumulative statistics
    statistics-cumulative: yes
23

Didn't see those files anywhere in the unbound package and dpkg-query: no path found matching pattern *use-extended-statistics.conf* was returned for looking in all packages.

24

Should I just reinstall Pihole and Unbound from scratch?

25

All below files usualy dont come with a basic default unbound setup when following the official guide:

use-own-identity.conf
use-expired-records.conf
use-multithreaded-udp.conf
remote-control.conf
use-large-buffers.conf
use-optimized-threads.conf
use-prefetch.conf
use-optimized-caches.conf
use-unbound-control.conf
use-extended-statistics.conf

As long as those config files keep interfering, I wont be able to help.

26

Yeah, I honestly have no idea where those came from.

27

No results found for unbound "use-own-identity.conf" "use-expired-records.conf".

28

Okay, okay, okay...those results are bringing back memories from when I originally installed Pihole and Unbound 3-4 years ago. I think I followed a guide that guy made and it resulted in those config files based on "their setup".

I think I should just probably uninstall Pihole and Unbound and start over.

29

Just reinstall unbound only!
Purge everything with below:

sudo apt purge unbound

Make sure no config file is left behind with below:

sudo rm -r /etc/unbound

And follow the guide to the letter:

30

Do you have a link for that guide?

31

I think it was a guide referencing this post by the same person you found: https://old.reddit.com/r/pihole/comments/dkq33h/doh_on_pihole/f4iq6kk/

32

Okay, will do this now and report back if the same issues are being seen.

33

I dont see any reference to those "alien" config files.

34

Yeah, this current install of Pihole and unbound was from 3 years ago and I had that Reddit post bookmarked in a "Pihole" folder. He mentions his Github in that Reddit post and I guess I saw something that convinced me to also add his configs, too. I don't really remember all the details from the install from that long ago.

But! At least you found where they came from. It was from his repo and I do recall his username now.

35

Hmm...already an issue from the first step. I purged all previous unbound installs and deleted all config files and directories.

root@DietPi:/etc# sudo apt install unbound
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following additional packages will be installed:
  unbound-anchor
The following NEW packages will be installed:
  unbound unbound-anchor
0 upgraded, 2 newly installed, 0 to remove and 1 not upgraded.
Need to get 820 kB of archives.
After this operation, 3,851 kB of additional disk space will be used.
Do you want to continue? [Y/n] Y
Get:1 http://mirror.umd.edu/raspbian/raspbian buster/main armhf unbound-anchor armhf 1.9.0-2+deb10u3 [146 kB]
Get:2 http://mirror.umd.edu/raspbian/raspbian buster/main armhf unbound armhf 1.9.0-2+deb10u3 [674 kB]
Fetched 820 kB in 1s (1,004 kB/s)
Selecting previously unselected package unbound-anchor.
(Reading database ... 76173 files and directories currently installed.)
Preparing to unpack .../unbound-anchor_1.9.0-2+deb10u3_armhf.deb ...
Unpacking unbound-anchor (1.9.0-2+deb10u3) ...
Selecting previously unselected package unbound.
Preparing to unpack .../unbound_1.9.0-2+deb10u3_armhf.deb ...
Unpacking unbound (1.9.0-2+deb10u3) ...
Setting up unbound-anchor (1.9.0-2+deb10u3) ...
Setting up unbound (1.9.0-2+deb10u3) ...
Created symlink /etc/systemd/system/multi-user.target.wants/unbound.service → /lib/systemd/system/unbound.service.
Created symlink /etc/systemd/system/unbound.service.wants/unbound-resolvconf.service → /lib/systemd/system/unbound-resolvconf.service.
Job for unbound.service failed because the control process exited with error code.
See "systemctl status unbound.service" and "journalctl -xe" for details.
Job for unbound.service failed because the control process exited with error code.
See "systemctl status unbound.service" and "journalctl -xe" for details.
invoke-rc.d: initscript unbound, action "start" failed.
● unbound.service - Unbound DNS server
   Loaded: loaded (/lib/systemd/system/unbound.service; enabled; vendor preset: enabled)
   Active: activating (auto-restart) (Result: exit-code) since Thu 2023-08-03 19:00:20 EDT; 33ms ago
     Docs: man:unbound(8)
  Process: 3054 ExecStartPre=/usr/lib/unbound/package-helper chroot_setup (code=exited, status=0/SUCCESS)
  Process: 3057 ExecStartPre=/usr/lib/unbound/package-helper root_trust_anchor_update (code=exited, status=0/SUCCESS)
  Process: 3061 ExecStart=/usr/sbin/unbound -d $DAEMON_OPTS (code=exited, status=1/FAILURE)
 Main PID: 3061 (code=exited, status=1/FAILURE)
Processing triggers for systemd (241-7~deb10u9+rpi1) ...
36

That is weird, first time I searched with below I didnt get any results:

But searching a second time and now it does gives one result:

37

Just finish the guide!
That error is expected and will be resolved once you've configured the 5335 port for unbound.

38

Okay, finished the install and ran this ad block test from my phone: Test Ad Block - Toolz

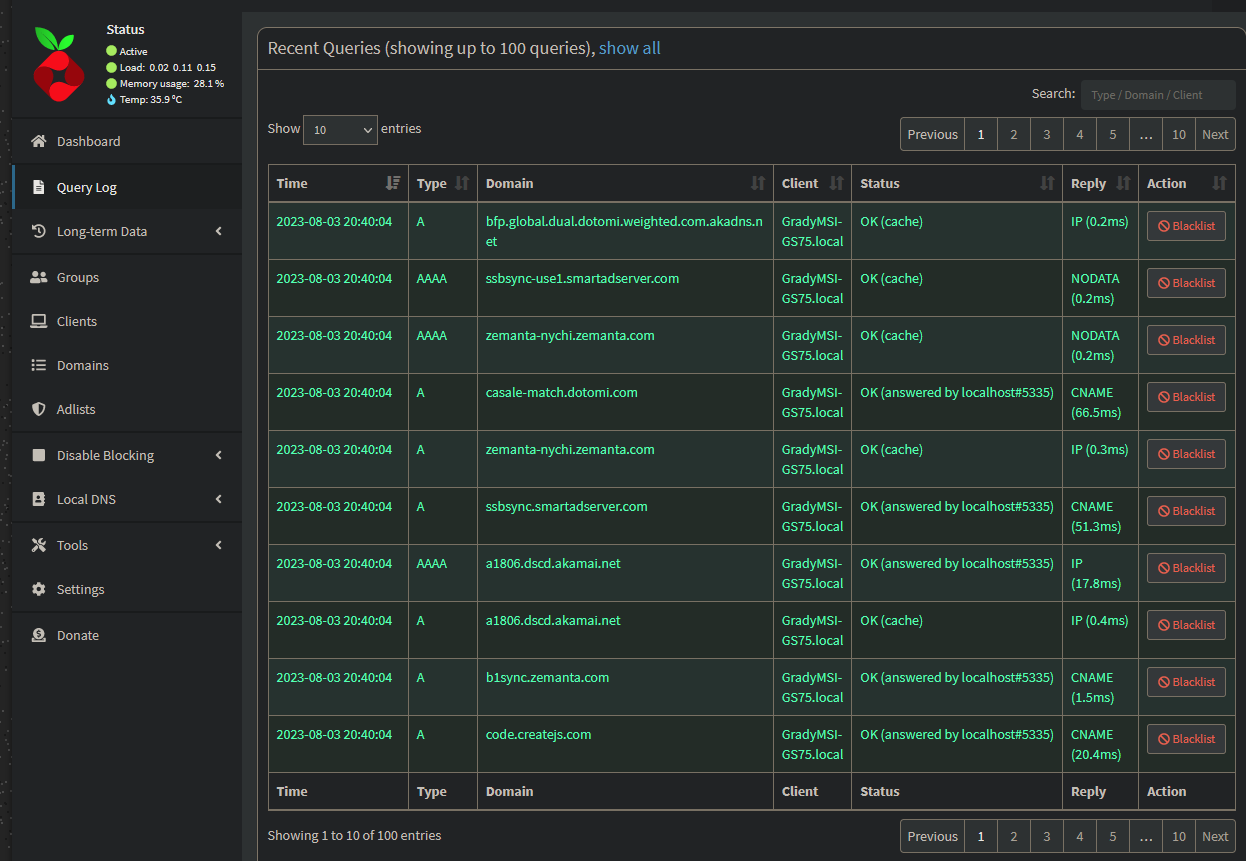

After, the Pihole query page had all of these:

pihole
pihole984×609 39.1 KB

Should all of these be being sent to localhost#5335? I would imagine these would all be blacklisted and not sent anywhere.

39

And just to double-tap on why I began this thread...

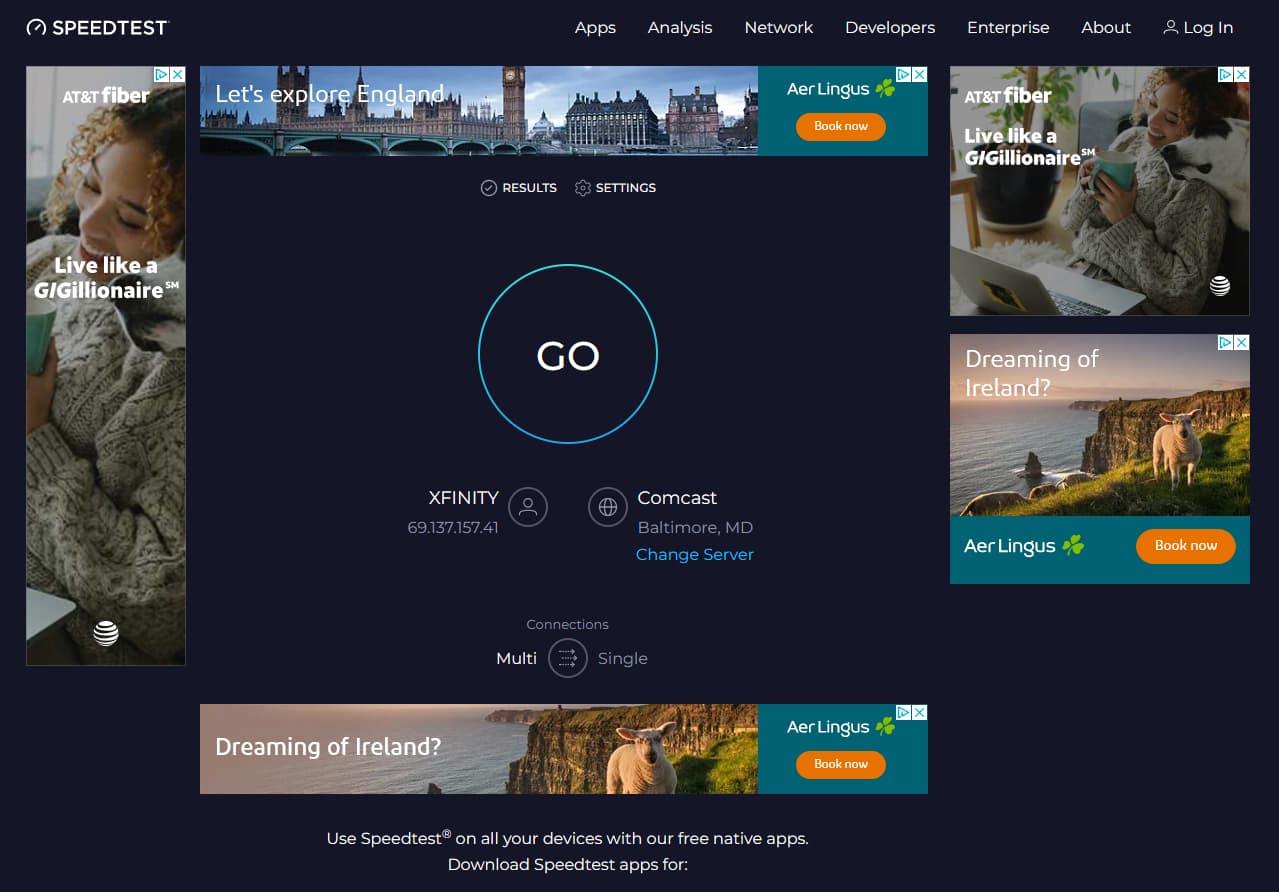

speedtesttest
speedtesttest1279×892 88.1 KB

This screenshot is from a private browser window (Firefox - I used a private browser session because I didn't want the ads to be blocked by NoScript or uBlock Origin extensions) and the entire page is encircled with ads. Why isn't the Pihole blocking this? This screenshot was from my laptop that has the Pihole set as its DNS.

This is the same thing I was seeing on my iPhone earlier in the day where it just didn't seem like the Pihole was blocking anything, even though these entries are showing in the query log:

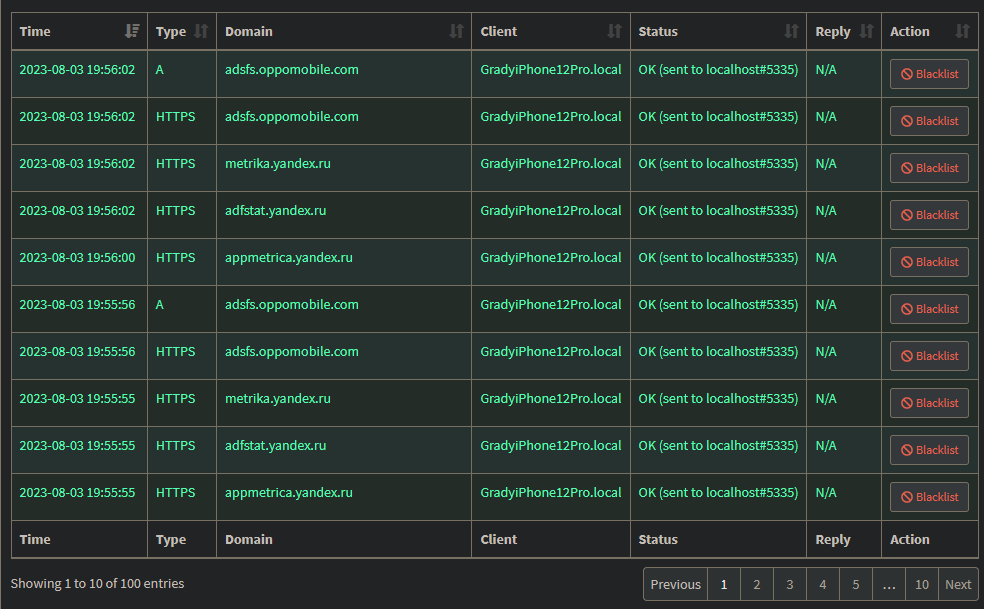

piholetest2
piholetest21246×861 65.5 KB

40

The first domain from the first screenshot should have been blocked:

pi@ph5b:~ $ pihole -q adsfs.oppomobile.com
 Match found in https://raw.githubusercontent.com/StevenBlack/hosts/master/hosts:
   adsfs.oppomobile.com

pi@ph5b:~ $ host adsfs.oppomobile.com localhost
Using domain server:
Name: localhost
Address: ::1#53
Aliases:

adsfs.oppomobile.com has address 0.0.0.0
adsfs.oppomobile.com has IPv6 address ::

pi@ph5b:~ $ pihole -t
[..]
Aug  4 02:53:07: query[A] adsfs.oppomobile.com from ::1
Aug  4 02:53:07: gravity blocked adsfs.oppomobile.com is 0.0.0.0
Aug  4 02:53:08: query[AAAA] adsfs.oppomobile.com from ::1
Aug  4 02:53:08: gravity blocked adsfs.oppomobile.com is ::
Aug  4 02:53:08: query[MX] adsfs.oppomobile.com from ::1
Aug  4 02:53:08: gravity blocked adsfs.oppomobile.com is NODATA

Upload a fresh debug log and post only the resulting token URL so the mods/devs can have a look if something wrong ... maybe you configured "groups"?

pihole -d

41

No groups other than the "default" group.

https://tricorder.pi-hole.net/N9qGia5O/
