Queries answered by www.fritz.box

ich habe mein Pi neu aufgesetzt alle Aktuelle updates gemacht
raspberry Light und pi hole von der offizielle Seite gezogen
Pi-hole Version v4.2.2 Web Interface Version v4.2 FTL Version v4.2.3

alles installiert wie immer aber nun habe ich eben dieses www.fritz.box als Queries answered und es wird immer grösser :frowning:

( hat ja alles vorm neu aufsetzen auch gepasst )

in der FB ist mein pi als DNS DHCP
und für extern FB internetzugang DNS der pi

im pi ist die Fb hinterlegt mit dem Fritz.box für die namens Auflösung
so wie hier ist sie eingerichtet

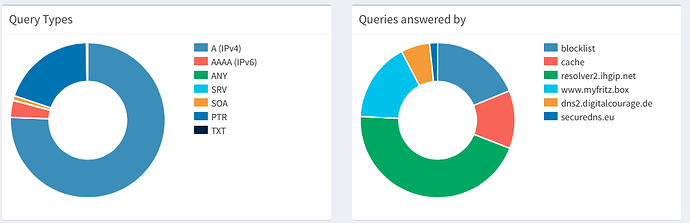

schaut euch mal das Foto an evtl hilft es

0 Likes

#2

pi@raspberrypi:~ $ pihole -d

*** [ INITIALIZING ]
[i] 2019-03-10:17:14:00 debug log has been initialized.

*** [ INITIALIZING ] Sourcing setup variables
[i] Sourcing /etc/pihole/setupVars.conf...

*** [ DIAGNOSING ]: Core version
[i] Core: v4.2.2 (https://discourse.pi-hole.net/t/how-do-i-update-pi-hole/249)
[i] Branch: master
[i] Commit: v4.2.2-0-gba1e94d

*** [ DIAGNOSING ]: Web version
[i] Web: v4.2 (https://discourse.pi-hole.net/t/how-do-i-update-pi-hole/249)
[i] Branch: master
[i] Commit: v4.2-0-g347994d

*** [ DIAGNOSING ]: FTL version
[✓] FTL: v4.2.3

*** [ DIAGNOSING ]: lighttpd version
[i] 1.4.45

*** [ DIAGNOSING ]: php version
[i] 7.0.33

*** [ DIAGNOSING ]: Operating system
[✓] Raspbian GNU/Linux 9 (stretch)

*** [ DIAGNOSING ]: SELinux
[i] SELinux not detected

*** [ DIAGNOSING ]: Processor
[✓] armv7l

*** [ DIAGNOSING ]: Networking
[✓] IPv4 address(es) bound to the eth0 interface:
   192.+++++++/24 matches the IP found in /etc/pihole/setupVars.conf

[✓] IPv6 address(es) bound to the eth0 interface:
   fe80::fced:f13b:1546:14ab does not match the IP found in /etc/pihole/setupVars.conf (https://discourse.pi-hole.net/t/use-ipv6-ula-addresses-for-pi-hole/2127)

   ^ Please note that you may have more than one IP address listed.
   As long as one of them is green, and it matches what is in /etc/pihole/setupVars.conf, there is no need for concern.

   The link to the FAQ is for an issue that sometimes occurs when the IPv6 address changes, which is why we check for it.

[i] Default IPv4 gateway: 192.+++++++
   * Pinging 192.+++++++
[✓] Gateway responded.

*** [ DIAGNOSING ]: Ports in use
*:22 sshd (IPv4)
*:22 sshd (IPv6)
[*:80] is in use by lighttpd
[*:80] is in use by lighttpd
[*:53] is in use by pihole-FTL
[*:53] is in use by pihole-FTL
[127.0.0.1:4711] is in use by pihole-FTL
[[::1]:4711] is in use by pihole-FTL

*** [ DIAGNOSING ]: Name resolution (IPv4) using a random blocked domain and a known ad-serving domain
[✓] www.pracowniaciala.pl is 0.0.0.0 via localhost (127.0.0.1)
[✓] www.pracowniaciala.pl is 0.0.0.0 via Pi-hole (192.++++++)
[✓] doubleclick.com is 172.217.17.238 via a remote, public DNS server (8.8.8.8)

*** [ DIAGNOSING ]: Pi-hole processes
[✓] lighttpd daemon is active
[✓] pihole-FTL daemon is active

*** [ DIAGNOSING ]: Setup variables
    PIHOLE_INTERFACE=eth0
    IPV4_ADDRESS=192.+++++/24
    IPV6_ADDRESS=
    QUERY_LOGGING=true
    INSTALL_WEB_SERVER=true
    INSTALL_WEB_INTERFACE=true
    LIGHTTPD_ENABLED=true
    BLOCKING_ENABLED=true
    DNSMASQ_LISTENING=single
    PIHOLE_DNS_1=84.200.70.40
    PIHOLE_DNS_2=46.182.19.48#53
    PIHOLE_DNS_3=146.185.167.43#53
    DNS_FQDN_REQUIRED=true
    DNS_BOGUS_PRIV=true
    DNSSEC=false
    CONDITIONAL_FORWARDING=true
    CONDITIONAL_FORWARDING_IP=192.+++++++
    CONDITIONAL_FORWARDING_DOMAIN=fritz.box
    CONDITIONAL_FORWARDING_REVERSE=178.168.192.in-addr.arpa

*** [ DIAGNOSING ]: Dashboard and block page
[✓] Block page X-Header: X-Pi-hole: A black hole for Internet advertisements.
[✓] Web interface X-Header: X-Pi-hole: The Pi-hole Web interface is working!

*** [ DIAGNOSING ]: Gravity list
-rw-r--r-- 1 root root 2633716 Mär 10 04:36 /etc/pihole/gravity.list
   -----head of gravity.list------
   0.0.0.0
   0.r.msn.com
   0.start.bz
   000.0x1f4b0.com

   -----tail of gravity.list------
   zzz.clickbank.net
   zzzezeroe.fr
   zzzpooeaz-france.com
   zzzrtrcm2.com

*** [ DIAGNOSING ]: contents of /etc/pihole

-rw-r--r-- 1 root root 381 Mär  9 16:12 /etc/pihole/adlists.list
   https://raw.githubusercontent.com/StevenBlack/hosts/master/hosts
   https://mirror1.malwaredomains.com/files/justdomains
   http://sysctl.org/cameleon/hosts
   https://zeustracker.abuse.ch/blocklist.php?download=domainblocklist
   https://s3.amazonaws.com/lists.disconnect.me/simple_tracking.txt
   https://s3.amazonaws.com/lists.disconnect.me/simple_ad.txt
   https://hosts-file.net/ad_servers.txt

-rw-r--r-- 1 root root 0 Mär  9 16:18 /etc/pihole/blacklist.txt

-rw-r--r-- 1 root root 52 Mär 10 04:36 /etc/pihole/local.list
   192.++++++++ raspberrypi
   192.++++++++pi.hole

-rw-r--r-- 1 root root 234 Mär  9 16:14 /etc/pihole/logrotate
   /var/log/pihole.log {
   	su root root
   	daily
   	copytruncate
   	rotate 5
   	compress
   	delaycompress
   	notifempty
   	nomail
   }
   /var/log/pihole-FTL.log {
   	su root root
   	weekly
   	copytruncate
   	rotate 3
   	compress
   	delaycompress
   	notifempty
   	nomail
   }

-rw-r--r-- 1 root root 43 Mär  9 16:18 /etc/pihole/whitelist.txt
   www.erding.de
   www.conrad.de
   www.conrad.biz

*** [ DIAGNOSING ]: contents of /etc/dnsmasq.d

-rw-r--r-- 1 root root 1728 Mär  9 22:19 /etc/dnsmasq.d/01-pihole.conf
   addn-hosts=/etc/pihole/gravity.list
   addn-hosts=/etc/pihole/black.list
   addn-hosts=/etc/pihole/local.list
   localise-queries
   no-resolv
   cache-size=10000
   log-queries
   log-facility=/var/log/pihole.log
   local-ttl=2
   log-async
   dhcp-name-match=set:wpad-ignore,wpad
   dhcp-ignore-names=tag:wpad-ignore
   server=84.200.70.40
   server=46.182.19.48
   server=146.185.167.43
   domain-needed
   bogus-priv
   interface=eth0
   server=/fritz.box/192.++++++
   server=/178.168.192.in-addr.arpa/192.++++++

*** [ DIAGNOSING ]: contents of /etc/lighttpd

-rw-r--r-- 1 root root 3102 Mär  9 16:14 /etc/lighttpd/lighttpd.conf
   server.modules = (
   	"mod_access",
   	"mod_accesslog",
   	"mod_auth",
   	"mod_expire",
   	"mod_compress",
   	"mod_redirect",
   	"mod_setenv",
   	"mod_rewrite"
   )
   server.document-root        = "/var/www/html"
   server.error-handler-404    = "pihole/index.php"
   server.upload-dirs          = ( "/var/cache/lighttpd/uploads" )
   server.errorlog             = "/var/log/lighttpd/error.log"
   server.pid-file             = "/var/run/lighttpd.pid"
   server.username             = "www-data"
   server.groupname            = "www-data"
   server.port                 = 80
   accesslog.filename          = "/var/log/lighttpd/access.log"
   accesslog.format            = "%{%s}t|%V|%r|%s|%b"
   index-file.names            = ( "index.php", "index.html", "index.lighttpd.html" )
   url.access-deny             = ( "~", ".inc", ".md", ".yml", ".ini" )
   static-file.exclude-extensions = ( ".php", ".pl", ".fcgi" )
   compress.cache-dir          = "/var/cache/lighttpd/compress/"
   compress.filetype           = ( "application/javascript", "text/css", "text/html", "text/plain" )
   include_shell "/usr/share/lighttpd/use-ipv6.pl " + server.port
   include_shell "/usr/share/lighttpd/create-mime.assign.pl"
   include_shell "find /etc/lighttpd/conf-enabled -name '*.conf' -a ! -name 'letsencrypt.conf' -printf 'include \"%p\"
' 2>/dev/null"
   $HTTP["url"] =~ "^/admin/" {

       setenv.add-response-header = (
           "X-Pi-hole" => "The Pi-hole Web interface is working!",
           "X-Frame-Options" => "DENY"
       )
       $HTTP["url"] =~ ".ttf$" {

           setenv.add-response-header = ( "Access-Control-Allow-Origin" => "*" )
       }
   }
   $HTTP["url"] =~ "^/admin/\.(.*)" {
        url.access-deny = ("")
   }
   include_shell "cat external.conf 2>/dev/null"

*** [ DIAGNOSING ]: contents of /etc/cron.d

-rw-r--r-- 1 root root 1704 Mär  9 16:14 /etc/cron.d/pihole
   36 4   * * 7   root    PATH="$PATH:/usr/local/bin/" pihole updateGravity >/var/log/pihole_updateGravity.log || cat /var/log/pihole_updateGravity.log
   00 00   * * *   root    PATH="$PATH:/usr/local/bin/" pihole flush once quiet
   @reboot root /usr/sbin/logrotate /etc/pihole/logrotate
   */10 *  * * *   root    PATH="$PATH:/usr/local/bin/" pihole updatechecker local
   27 14  * * *   root    PATH="$PATH:/usr/local/bin/" pihole updatechecker remote
   @reboot root    PATH="$PATH:/usr/local/bin/" pihole updatechecker remote reboot

*** [ DIAGNOSING ]: contents of /var/log/lighttpd

-rw-r--r-- 1 www-data www-data 1168 Mär  9 22:23 /var/log/lighttpd/error.log
   2019-03-09 16:13:23: (log.c.217) server started
   2019-03-09 16:14:42: (server.c.1828) server stopped by UID = 0 PID = 1
   2019-03-09 16:14:43: (log.c.217) server started
   2019-03-09 16:18:32: (mod_fastcgi.c.2543) FastCGI-stderr: PHP Notice:  Undefined variable: api in /var/www/html/admin/scripts/pi-hole/php/add.php on line 14
   2019-03-09 16:18:42: (mod_fastcgi.c.2543) FastCGI-stderr: PHP Notice:  Undefined variable: api in /var/www/html/admin/scripts/pi-hole/php/add.php on line 14
   2019-03-09 16:18:49: (mod_fastcgi.c.2543) FastCGI-stderr: PHP Notice:  Undefined variable: api in /var/www/html/admin/scripts/pi-hole/php/add.php on line 14
   2019-03-09 16:28:22: (server.c.1828) server stopped by UID = 0 PID = 1
   2019-03-09 16:28:33: (log.c.217) server started
   2019-03-09 22:11:07: (server.c.1828) server stopped by UID = 0 PID = 1
   2019-03-09 22:11:18: (log.c.217) server started
   2019-03-09 22:11:50: (mod_fastcgi.c.2543) FastCGI-stderr: PHP Notice:  Undefined offset: 2 in /var/www/html/admin/scripts/pi-hole/php/update_checker.php on line 58
   2019-03-09 22:23:19: (server.c.1828) server stopped by UID = 0 PID = 1
   2019-03-09 22:23:30: (log.c.217) server started

*** [ DIAGNOSING ]: contents of /var/log

-rw-r--r-- 1 pihole pihole 1027 Mär 10 14:19 /var/log/pihole-FTL.log
   -----head of pihole-FTL.log------
   [2019-03-10 02:00:00.661 606] Resizing "/FTL-strings" from 12288 to 16384
   [2019-03-10 04:36:07.474 606] Compiled 0 Regex filters and 3 whitelisted domains in 0.1 msec (0 errors)
   [2019-03-10 04:36:07.656 606] /etc/pihole/black.list: parsed 0 domains (took 0.1 ms)
   [2019-03-10 04:36:08.405 606] /etc/pihole/gravity.list: parsed 112384 domains (took 748.5 ms)
   [2019-03-10 09:00:00.647 606] Resizing "/FTL-strings" from 16384 to 20480
   [2019-03-10 09:15:40.538 606] Resizing "/FTL-queries" from 229376 to 458752
   [2019-03-10 09:22:46.013 606] Resizing "/FTL-strings" from 20480 to 24576
   [2019-03-10 11:31:38.525 606] Resizing "/FTL-strings" from 24576 to 28672
   [2019-03-10 12:51:45.861 606] Resizing "/FTL-strings" from 28672 to 32768
   [2019-03-10 13:14:34.728 606] Resizing "/FTL-strings" from 32768 to 36864
   [2019-03-10 13:14:46.779 606] Resizing "/FTL-strings" from 36864 to 40960
   [2019-03-10 13:45:57.633 606] Resizing "/FTL-queries" from 458752 to 688128
   [2019-03-10 14:19:24.040 606] Resizing "/FTL-strings" from 40960 to 45056

   -----tail of pihole-FTL.log------
   [2019-03-10 02:00:00.661 606] Resizing "/FTL-strings" from 12288 to 16384
   [2019-03-10 04:36:07.474 606] Compiled 0 Regex filters and 3 whitelisted domains in 0.1 msec (0 errors)
   [2019-03-10 04:36:07.656 606] /etc/pihole/black.list: parsed 0 domains (took 0.1 ms)
   [2019-03-10 04:36:08.405 606] /etc/pihole/gravity.list: parsed 112384 domains (took 748.5 ms)
   [2019-03-10 09:00:00.647 606] Resizing "/FTL-strings" from 16384 to 20480
   [2019-03-10 09:15:40.538 606] Resizing "/FTL-queries" from 229376 to 458752
   [2019-03-10 09:22:46.013 606] Resizing "/FTL-strings" from 20480 to 24576
   [2019-03-10 11:31:38.525 606] Resizing "/FTL-strings" from 24576 to 28672
   [2019-03-10 12:51:45.861 606] Resizing "/FTL-strings" from 28672 to 32768
   [2019-03-10 13:14:34.728 606] Resizing "/FTL-strings" from 32768 to 36864
   [2019-03-10 13:14:46.779 606] Resizing "/FTL-strings" from 36864 to 40960
   [2019-03-10 13:45:57.633 606] Resizing "/FTL-queries" from 458752 to 688128
   [2019-03-10 14:19:24.040 606] Resizing "/FTL-strings" from 40960 to 45056

*** [ DIAGNOSING ]: contents of /dev/shm
-rw------- 1 pihole pihole 2621440 Mär 10 11:57 /dev/shm/FTL-clients
-rw------- 1 pihole pihole 108 Mär  9 22:23 /dev/shm/FTL-counters
-rw------- 1 pihole pihole 131072 Mär 10 16:29 /dev/shm/FTL-domains
-rw------- 1 pihole pihole 163840 Mär  9 22:23 /dev/shm/FTL-forwarded
-rw------- 1 pihole pihole 28 Mär  9 22:23 /dev/shm/FTL-lock
-rw------- 1 pihole pihole 8192 Mär  9 22:23 /dev/shm/FTL-overTime
-rw------- 1 pihole pihole 688128 Mär 10 13:59 /dev/shm/FTL-queries
-rw------- 1 pihole pihole 12 Mär  9 22:23 /dev/shm/FTL-settings
-rw------- 1 pihole pihole 45056 Mär 10 14:19 /dev/shm/FTL-strings

*** [ DIAGNOSING ]: Locale
    LANG=de_DE.UTF-8

*** [ DIAGNOSING ]: Pi-hole log
-rw-r--r-- 1 pihole pihole 3399307 Mär 10 17:14 /var/log/pihole.log
   -----head of pihole.log------
   Mar 10 00:00:20 dnsmasq[606]: query[A] device-metrics-us.amazon.com from 192.+++++
   Mar 10 00:00:20 dnsmasq[606]: /etc/pihole/gravity.list device-metrics-us.amazon.com is 0.0.0.0
   Mar 10 00:01:29 dnsmasq[606]: query[A] device-metrics-us.amazon.com from 192.+++++
   Mar 10 00:01:29 dnsmasq[606]: /etc/pihole/gravity.list device-metrics-us.amazon.com is 0.0.0.0
   Mar 10 00:02:42 dnsmasq[606]: query[A] device-metrics-us.amazon.com from 192.++++++
   Mar 10 00:02:42 dnsmasq[606]: /etc/pihole/gravity.list device-metrics-us.amazon.com is 0.0.0.0
   Mar 10 00:03:18 dnsmasq[606]: query[A] gateway.icloud.com from 192.+++++++
   Mar 10 00:03:18 dnsmasq[606]: forwarded gateway.icloud.com to 84.200.70.40
   Mar 10 00:03:18 dnsmasq[606]: reply gateway.icloud.com is <CNAME>
   Mar 10 00:03:18 dnsmasq[606]: reply gateway.fe.apple-dns.net is 17.248.147.106
   Mar 10 00:03:18 dnsmasq[606]: reply gateway.fe.apple-dns.net is 17.248.147.141
   Mar 10 00:03:18 dnsmasq[606]: reply gateway.fe.apple-dns.net is 17.248.147.9
   Mar 10 00:03:18 dnsmasq[606]: reply gateway.fe.apple-dns.net is 17.248.147.118
   Mar 10 00:03:18 dnsmasq[606]: reply gateway.fe.apple-dns.net is 17.248.147.50
   Mar 10 00:03:18 dnsmasq[606]: reply gateway.fe.apple-dns.net is 17.248.147.179
   Mar 10 00:03:18 dnsmasq[606]: reply gateway.fe.apple-dns.net is 17.248.147.116
   Mar 10 00:03:18 dnsmasq[606]: reply gateway.fe.apple-dns.net is 17.248.147.138
   Mar 10 00:03:19 dnsmasq[606]: query[A] p15-keyvalueservice.icloud.com from 192.+++++
   Mar 10 00:03:19 dnsmasq[606]: forwarded p15-keyvalueservice.icloud.com to 84.200.70.40
   Mar 10 00:03:19 dnsmasq[606]: reply p15-keyvalueservice.icloud.com is <CNAME>


********************************************
********************************************
[✓] ** FINISHED DEBUGGING! **
0 Likes

#3

Keiner eine idee ? oder eine Erklärung für mich ?

auch dieser Bereich im Log ob das passt ?
da die Google DNS 8.8.8.8 drin ist

Danke für jede Hilfe

*** [ DIAGNOSING ]: Name resolution (IPv4) using a random blocked domain and a known ad-serving domain
[✓] www.pracowniaciala.pl is 0.0.0.0 via localhost (127.0.0.1)
[✓] www.pracowniaciala.pl is 0.0.0.0 via Pi-hole (192.++++++)
[✓] doubleclick.com is 172.217.17.238 via a remote, public DNS server (8.8.8.8)

0 Likes

#4

so ich habe mich mal durch geklickt und nun ist die FB weg aus dem Queries.

ich habe im Pi-hole settings die Funktion Conditional Forwarding deaktiviert jetzt sehe ich zwar keine Geräte Namen mehr aber dafür ist die FB jetzt aus dem Log

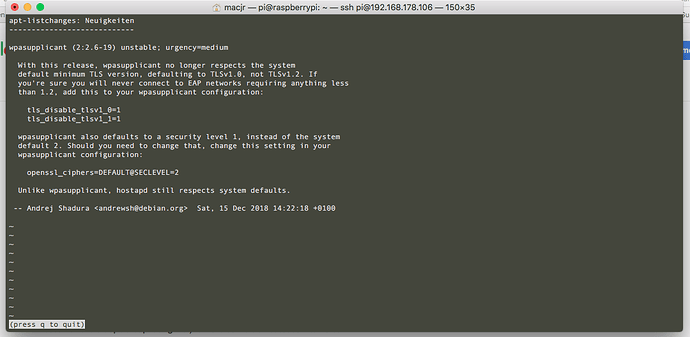

aber wer seine IP´s kennt weis was Wass ist … oh und noch was ist mir auf gefallen beim neu install vom Raspi + pi-hole ( sehe Bild )
evtl ist es eine wichtig infos.

0 Likes

#6

ich hatte auch auch die Funktion Conditional Forwarding aktiviert und wieder deaktiviert und sehe nun nur noch die IP Nummern der Geräte.
Wie kann man wiederherstellen, daß die Gerätenamen anstatt der IP Nummern in den Queries usw. angezeigt werden?
Danke für any Hint
Mark_Muc

0 Likes

#7

ja aktiviere wieder diese Funktion die ist dafür gedacht!

1 Like

#8

OK danke und geht wieder!!
Mark_Muc

0 Likes
