Hi everyone
I have a problem with pi-hole.
P-Hole is installed on OpenMediavault (7.0-29, Sandworm), (Docker composed).
When Pi-Hole is active (by changing the DNS server on Route with that of Pi-Hole) I can't update OpenMediavault and its plugins.
Also I can't update Plex metadata. If I disabled pihole everything works.
Everything else works perfectly (the whole network is protected).
I can't understand what I'm wrong.
Can you help me?
Thank you very much
Can anyone help me?
All the traffic of OpenMediavault and other installed containers are blocked by Pi-Hole. Which settings should I change on the container configuration file (or on settings)?
Sorry but I can't use Pi-Hole with these problems.
Thanks in advance.
Please upload a debug log and post just the token URL that is generated after the log is uploaded by running the following command from the Pi-hole host terminal:
pihole -d
or do it through the Web interface:
Tools > Generate Debug Log
In addition to the Debug Token, please also post your compose file.
Hi guys,
Thanks in advance for your support.
Here my debug token:
https://tricorder.pi-hole.net/c2xvuBOT/
Here my compose file:
services:
pihole:
container_name: pihole
image: pihole/pihole:latest
hostname: pihole
networks:
pih_network:
ipv4_address: 192.168.0.100 #**Change, use pihole address
environment:
TZ: 'Europe/Rome' #**Change to your timezone
WEBPASSWORD: 'XXXXXXXXXXXXXXXXX' #**Password for pihole, used on container creation.
#dns: #**Inizio aggiunta per risoluzione DNS
#- 127.0.0.1 #**Fine aggiunta per risoluzione DNS
ports:
- "443:443/tcp"
- "53:53/tcp"
#- "67:67/udp" # Only required if you are using Pi-hole as your DHCP server
- "53:53/udp"
- "80:80/tcp"
restart: "unless-stopped"
volumes:
- "/Data/pihole/etc/pihole:/etc/pihole"
- "/Data/pihole/etc/dnsmasq.d:/etc/dnsmasq.d"
#cap_add:
#- NET_ADMIN # Required if you are using Pi-hole as your DHCP server, else not needed
networks:
pih_network:
driver: macvlan
driver_opts:
parent: end0 #**Change this to your interface
ipam:
config:
- subnet: 192.168.0.0/24 #**Your network subnet
gateway: 192.168.0.1 #**Your network gateway
ip_range: 192.168.0.0/25 #**ip for pihole container
What's the result of the following commands:
nslookup pi.hole 192.168.0.100
nslookup raw.githubusercontent.com 192.168.0.100
Thanks firnthe reply,
in both cases:
nslookup pi.hole 192.168.0.100
pi@shield:~ $ nslookup pi.hole 192.168.0.100
;; communications error to 192.168.0.100#53: timed out
;; communications error to 192.168.0.100#53: timed out
;; communications error to 192.168.0.100#53: timed out
;; no servers could be reached
pi@shield:~ $ nslookup raw.githubusercontent.com 192.168.0.100
;; communications error to 192.168.0.100#53: timed out
;; communications error to 192.168.0.100#53: timed out
;; communications error to 192.168.0.100#53: timed out
;; no servers could be reached
but at the moment pihole is not the dns server, because the updates would not work
Where are you running these commands?
On the host (OpenMediavault server) or on another machine in your network?
I connect via putty. currently the DNS server is the router
You didn't confirm (or deny), but will I assume you are connecting to the host (OpenMediavault server).
If that's the case, your issue is probably related to your macvlan network.
Macvlan networks are not able to directly communicate with the host OS.
This isolation is by design, but you can use a "shim" network interface to allow this communication.
I noticed you are creating your macvlan network directly in the compose file.
You can use a different approach:
docker network create -d macvlan <options> command;external network.This way, you only create the network once and the network will be available when you restart your machine.
HI
I apologize for my late answer.
I tried to follow the links, but I do not succeed (I will try again!), It is recently that I approached these things, so it takes time: (
A question, is it possible to use another method to be able to get to the same result?
Eg: Another Docker setting composed?
Thank you for your help
As this seems OMV/Docker/network related, you may want to also consult OMV's support, e.g. see their How to Create a VLAN (Pi-hole, Adguard, ...)
Before you try to apply that advice, I'd be curious:
Does pinging that IP produce similar output?
ping 192.168.0.100
None that I'm aware.
Hi and thanks

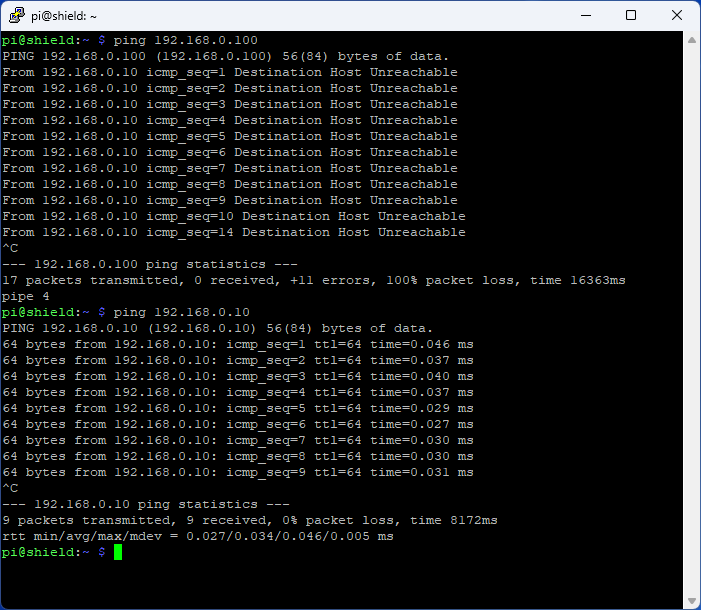

These are the results
Ping to OpenMediavault (192.168.0.10) --> Okay
Ping to Pi-Hole (192.168.0.100) --> don't work
As I said before, communication between the host and container using a macvlan network is not possible, but using the network "shim" will allow this communication.
Use the command below to create the macvlan:
docker network create -d macvlan \
--subnet=192.168.0.0/24 \
--gateway=192.168.0.1 \
--ip-range 192.168.0.0/25 \
-o parent=eth0 \
--aux-address="myserver=192.168.0.126" \
macvlan0
Make sure you add an auxiliary address to your macvlan config.
To create your container, just use the macvlan0 in your compose file, as external network:
networks:
macvlan0:
external: true
Now, your container works, but there is no docker to host communication (and vice-versa).
Create a "shim" network to allow the communication:
# Some tutorials recommend this step. I'm not sure if this is needed for everyone, but here it is anyway.
sudo ip link set eth0 promisc on
# This will create a virtual link called "macvlan-shim" (you can use a different name)
sudo ip link add macvlan-shim link eth0 type macvlan mode bridge
# Assign an IP and range to the new network link.
# IMPORTANT: use the same value used for "aux-address".
sudo ip addr add 192.168.0.126/25 dev macvlan-shim
# Bring your new interface up
sudo ip link set macvlan-shim up
At this point your container and host will be allowed to communicate, but this will be lost on every boot.
You can read on the articles I linked above, how to persist these settings.
That looks just as what OMV's own documentation suggests:
EDIT:
Note that those steps would only be required if you want same host DNS requests to reach your Pi-hole.
They are not blocked by Pi-hole, but VLAN isolation prevents any traffic to be routed to your container (as demonstrated by your failing nslookups and pings).
If your containers do not need their DNS traffic to be filtered by Pi-hole, you could also consider to configure OMV's OS to not use Pi-hole for DNS.
That would also avoid potential issues with OMV's own DNS requests, e.g. after a reboot, when Docker would not yet have started, but OMV would already try to resolve domains.
Note that Pi-hole does not touch its host machine's DNS configuration.
It's even beneficial to use an alternate (public) DNS server, as that would allow the host OS to resolve DNS if Pi-hole woud be inoperational (e.g. for OS updates and Pi-hole's repair scripts).
