nr. 2 is new today, never seen before. Pihole is set to act as DHCP with 192.168.178.137 as fixed adress......and helptopic says this is because i ran pihole -d so it will pop up. this is TRUE. so we can IGNORE this, i believe .
excuse my bad everything, i am not native english nor very good wizzkid but retired MCSE (windowsXP)
In this forum, you can paste images directly into a post.
Your image shows a period of time where your Pi-hole hasn't received any DNS requests. This could happen if Pi-hole would be by-passed.
And indeed, your debug log shows that your (Sagemcom?) router is advertising a set of public IPv6 addresses as DNS servers:
* Received 136 bytes from fe80::3a<redacted>5 @ eth0
Hop limit: 64
Stateful address conf.: No
Stateful other conf.: Yes
Mobile home agent: No
Router preference: Medium
Neighbor discovery proxy: No
Router lifetime: 1800 s
Reachable time: N/A
Retransmit time: N/A
Recursive DNS server 1/3: 2001:b88:1002::10
Recursive DNS server 2/3: 2001:b88:1202::10
Recursive DNS server 3/3: 2001:730:3e42:1000::53
DNS server lifetime:300 sec
- Prefix: 2001:<redacted>::/64
Valid lifetime: 604800 sec
Preferred lifetime: 604800 sec
On-link: Yes
Autonomous address conf.: Yes
- Route: 2001:<redacted>::/56
Route preference: Medium
Route lifetime: 1800 sec
Source link-layer address: 3<redacted>5
You'd have to find a way to configure your router to stop advertising IPv6 DNS server addresses, or to advertise your Pi-hole host machine's IPv6.
You'd have to consult your router's documentation sources on further details for its IPv6 configuration options.
If your router doesn't support configuring IPv6 DNS, you could consider disabling IPv6 altogether, provided you'd not depend on IPv6 for reasons.
If your router doesn't support that either, your IPv6-capable clients will always be able to bypass Pi-hole via IPv6.
If your router would only advertise its own IPv6 address, you could then try to mitigate this, by setting Pi-hole as the only upstream of your router, provided your router supports it.
But note that you won't be able to attribute DNS requests to original individual IPv6 clients in such a configuration.
EDIT: In your case, your router seems to advertises public DNS servers, so that part won't work.

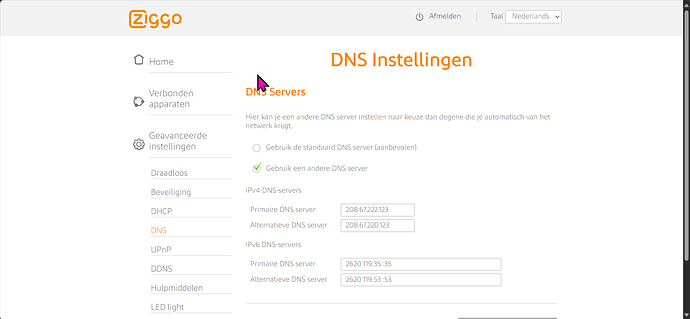

I looked into my ziggo modem and find the DNS page. It was set to "use the standard DNS (recommended)" . I tried to put in my IP of the PIHOLE (192.168.178.137) but the system refused it so I changed it into the numbers of OPENDNS.
And the moment i changed that my system removed the yellow numbers after settings, indicatiing there are no problems.
Lets hope it stays that way for a week (DHCP lease is set to a week)
Thankyou for your answer. I dont think we can do that in our providers router.

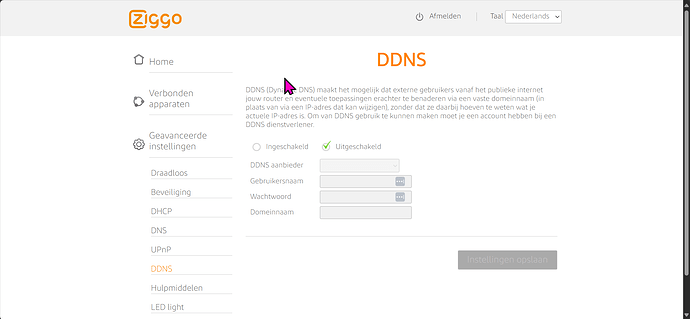

All i got is DDNS. That is disabled. and if i enabled it , it will need password and username , so i dont think that is the right one.
You could contact Ziggo and ask them if its possible for them to disable advertising IPv6 DNS IP's on your LAN.
Some other users were able to with their ISP.
DHCPv6 should be disabled anyway as it's not supported on some devices like for example Android.
At your end you can check what Recursive DNS Servers (RDNSS) are advertised via the IPv6 Neighbor Discovery Protocol & Router Advertisement (NDP/RA) on your LAN if run below one on the Pi:
It's friday again and a week has passed. My pihole stopped working again, couldnt access it through it's IP nor through it's REALVNC.
I don't get it why it keeps hanging up. His IP adress is fixed, and coinsedence the DHCP lease time is a week. It all makes no sense.
Are there RaspberryPI logs i can upload?
$ sudo pihole-FTL dhcp-discover
Scanning all your interfaces for DHCP servers and IPv6 routers
Timeout: 6 seconds
* Received 120 bytes from fe80::XXXX @ eth0
Hop limit: 64
Stateful address conf.: No
Stateful other conf.: Yes
Mobile home agent: No
Router preference: Medium
Neighbor discovery proxy: No
Router lifetime: 1800 s
Reachable time: N/A
Retransmit time: N/A
Recursive DNS server 1/2: 2620:119:35::35
Recursive DNS server 2/2: 2620:119:53::53
DNS server lifetime:300 sec
- Prefix: 2001:XXXX::/64
Valid lifetime: 604800 sec
Preferred lifetime: 604800 sec
On-link: Yes
Autonomous address conf.: Yes
- Route: 2001:XXXX::/56
Route preference: Medium
Route lifetime: 1800 sec
Source link-layer address: 38:17:B1:XX:XX:XX
* Received 136 bytes from fe80::XXXX @ eth0
Hop limit: 64
Stateful address conf.: No
Stateful other conf.: Yes
Mobile home agent: No
Router preference: Medium
Neighbor discovery proxy: No
Router lifetime: 1800 s
Reachable time: N/A
Retransmit time: N/A
- Prefix: 2001:XXXX::/64
Valid lifetime: 604800 sec
Preferred lifetime: 604800 sec
On-link: Yes
Autonomous address conf.: Yes
MTU: 1500 bytes (valid)
Source link-layer address: B8:27:EB:XX:XX:XX
Recursive DNS server 1/4: 2001:XXXX
Recursive DNS server 2/4: 2001:XXXX
Recursive DNS server 3/4: fe80::XXXX
Recursive DNS server 4/4: fe80::XXXX
DNS server lifetime:604800 sec
* Received 313 bytes from 192.168.178.137 @ eth0
Offered IP address: 192.168.178.194
Server IP address: 192.168.178.137
Relay-agent IP address: N/A
BOOTP server: (empty)
BOOTP file: (empty)
DHCP options:
Message type: DHCPOFFER (2)
server-identifier: 192.168.178.137
lease-time: 604800 ( 7d )
renewal-time: 302400 ( 3d 12h )
rebinding-time: 529200 ( 6d 3h )
netmask: 255.255.255.0
broadcast: 192.168.178.255
domain-name: "lan"
hostname: "pihole"
dns-server: 192.168.178.137
dns-server: 192.168.178.137
dns-server: 192.168.178.137
router: 192.168.178.1
--- end of options ---
Received 1 DHCP (IPv4) and 2 RA (IPv6) answers on eth0
I think we got the problem there. the pool starts at 20 and i made an exclusion for 137....
So now i changed the IPadres of PIHOLE to 17, so outside the range. rebooted, and now i can't find it anymore. not at 17 nor at 137.
i feel so stupid. I think i will start over fresh tonight with a new clean installation and outside the DHCP range, and write down the logincredentials. a donkey dont hit his head twice on the same rock.
Below is an IPv6 RA coming from the Pi with MAC B8:27:EB:XX:XX:XX
And below is an IPv4 DHCP reply coming from the Pi with IP 192.168.178.137:
Clients prefer IPv6 over IPv4 so those DNS IP's advertised by the router via IPv6 RA will allow the clients to bypass Pi-hole.
Thats an issue that I believe can only be resolved by disabling IPv6 support on the router ... if I search other Ziggo related issues.
Preferably on the LAN side only!
Or:
The other issue of not being able to connect to the Pi anymore is most likely related to below if its configured to do DHCP services for your LAN like in the dhcp-discover output:
Hint:
EDIT: Ps its a crappy job by Ziggo anyway when the clients need to query an IPv6 DNS server thats not in their own LAN segment but external on the Internet instead.
And those IPv6 DNS servers seem to be not on the own Ziggo network as well.
Most routers redirect queries to their own IPv6 address to allow caching for all of your LAN clients.
LAN is quick.
And if it needs to go to WAN/Internet is slow.
