The issue I am facing:
Pihole is set up as dhcp and dns server on lan, serves IP address and gateway but does not resolve DNS queries
Details about my system:
I have a tplink adsl modem set without dhcp since pihole on lan is set to run that.
tplink modem/ router network info as follows
Modem tplink
Dsl modem router on plusnet
Ip x.x.x.x ( redacted)
Dns server 212.159.6.10 and 212.159.6.9
Gateway 172.16.12.172
Lan IP 10.0.0.1
Subnet 255.0.0.0
Dhcp off
Pihole is on 10.0.0.2 /24 acting as dns and dhcp for lan
laptop on lan receives dhcp from pihole

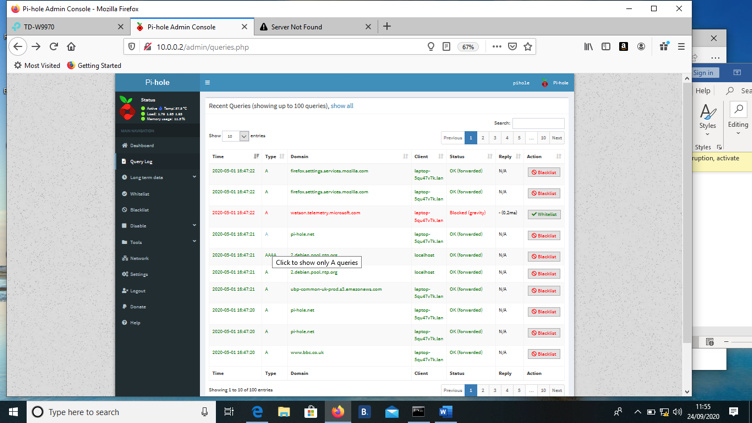

pihole appears to be be receiving the dns queries but not replying back to pc with response.
external network routing test
ping to 8.8.8.8 works perfect so network routing is there
ping to bbc.co.uk shows in pi logs but no reply to PC
similar web browse to bbc.co.uk does not resolve.
nslookup of bbc.co.uk returns the following
Server:pihole
Address 10.0.0.2
DNS request was timed out
timeout was 2 seconds.
ping pihole resolves pihole.local and gives replies <2ms
Expected behaviour
both ping and traceroute on IP and DNS match with DNS resolution
What I have changed since installing Pi-hole:
this is a new bought pihole on a pi4 with LCD screen. I have limited linux knowledge but have searched the forum for similar problems and answers but cant find a resolution.
Log file as follows
This process collects information from your Pi-hole, and optionally uploads it to a unique and random directory on tricorder.pi-hole.net.
The intent of this script is to allow users to self-diagnose their installations. This is accomplished by running tests against our software and providing the user with links to FAQ articles when a problem is detected. Since we are a small team and Pi-hole has been growing steadily, it is our hope that this will help us spend more time on development.
NOTE: All log files auto-delete after 48 hours and ONLY the Pi-hole developers can access your data via the given token. We have taken these extra steps to secure your data and will work to further reduce any personal information gathered.
*** [ INITIALIZING ]
[i] 2020-05-01:16:57:06 debug log has been initialized.
*** [ INITIALIZING ] Sourcing setup variables
[i] Sourcing /etc/pihole/setupVars.conf...
*** [ DIAGNOSING ]: Core version
[i] Core: v4.4 (https://discourse.pi-hole.net/t/how-do-i-update-pi-hole/249)
[i] Branch: master
[i] Commit: v4.4-0-g9e49077
*** [ DIAGNOSING ]: Web version
[i] Web: v4.3.3 (https://discourse.pi-hole.net/t/how-do-i-update-pi-hole/249)
[i] Branch: master
[i] Commit: v4.3.3-0-g62f2ffc
*** [ DIAGNOSING ]: FTL version
[ā] FTL: v4.3.1 (https://discourse.pi-hole.net/t/how-do-i-update-pi-hole/249)
*** [ DIAGNOSING ]: lighttpd version
[i] 1.4.53
*** [ DIAGNOSING ]: php version
[i] 7.3.14
*** [ DIAGNOSING ]: Operating system
[ā] Raspbian GNU/Linux 10 (buster)
*** [ DIAGNOSING ]: SELinux
[i] SELinux not detected
*** [ DIAGNOSING ]: Processor
[ā] armv7l
*** [ DIAGNOSING ]: Networking
[ā] IPv4 address(es) bound to the eth0 interface:
10.0.0.2/24 matches the IP found in /etc/pihole/setupVars.conf
[ā] IPv6 address(es) bound to the eth0 interface:
fe80::c566:a49e:f293:cd52 does not match the IP found in /etc/pihole/setupVars.conf (https://discourse.pi-hole.net/t/use-ipv6-ula-addresses-for-pi-hole/2127)
^ Please note that you may have more than one IP address listed.
As long as one of them is green, and it matches what is in /etc/pihole/setupVars.conf, there is no need for concern.
The link to the FAQ is for an issue that sometimes occurs when the IPv6 address changes, which is why we check for it.
[i] Default IPv4 gateway: 192.168.1.1
* Pinging 192.168.1.1...
[ā] Gateway did not respond. (https://discourse.pi-hole.net/t/why-is-a-default-gateway-important-for-pi-hole/3546)
*** [ DIAGNOSING ]: Ports in use
*:22 sshd (IPv4)
*:22 sshd (IPv6)
[80] is in use by lighttpd
[80] is in use by lighttpd
[53] is in use by pihole-FTL
[53] is in use by pihole-FTL
[4711] is in use by pihole-FTL
[4711] is in use by pihole-FTL
*** [ DIAGNOSING ]: Name resolution (IPv4) using a random blocked domain and a known ad-serving domain
[ā] coupongifts.life is 0.0.0.0 via localhost (127.0.0.1)
[ā] coupongifts.life is 0.0.0.0 via Pi-hole (10.0.0.2)
[ā] Failed to resolve doubleclick.com via a remote, public DNS server (8.8.8.8)
*** [ DIAGNOSING ]: Pi-hole processes
[ā] lighttpd daemon is active
[ā] pihole-FTL daemon is active
*** [ DIAGNOSING ]: Setup variables
BLOCKING_ENABLED=true
PIHOLE_INTERFACE=eth0
IPV4_ADDRESS=10.0.0.2/24
IPV6_ADDRESS=
QUERY_LOGGING=true
INSTALL_WEB_SERVER=true
INSTALL_WEB_INTERFACE=true
LIGHTTPD_ENABLED=true
DHCP_ACTIVE=true
DHCP_START=10.0.0.201
DHCP_END=10.0.0.251
DHCP_ROUTER=10.0.0.1
DHCP_LEASETIME=24
PIHOLE_DOMAIN=lan
DHCP_IPv6=false
DHCP_rapid_commit=false
DNSMASQ_LISTENING=local
PIHOLE_DNS_1=8.8.8.8
PIHOLE_DNS_2=8.8.4.4
PIHOLE_DNS_3=208.67.222.222
PIHOLE_DNS_4=208.67.220.220
PIHOLE_DNS_5=4.2.2.1
PIHOLE_DNS_6=4.2.2.2
PIHOLE_DNS_7=8.26.56.26
PIHOLE_DNS_8=8.20.247.20
PIHOLE_DNS_9=84.200.69.80
PIHOLE_DNS_10=84.200.70.40
PIHOLE_DNS_11=9.9.9.9
PIHOLE_DNS_12=149.112.112.112
PIHOLE_DNS_13=9.9.9.10
PIHOLE_DNS_14=149.112.112.10
PIHOLE_DNS_15=9.9.9.11
PIHOLE_DNS_16=149.112.112.11
PIHOLE_DNS_17=1.1.1.1
PIHOLE_DNS_18=1.0.0.1
DNS_FQDN_REQUIRED=true
DNS_BOGUS_PRIV=true
DNSSEC=false
CONDITIONAL_FORWARDING=false
*** [ DIAGNOSING ]: Dashboard and block page
[ā] Block page X-Header: X-Pi-hole: A black hole for Internet advertisements.
[ā] Web interface X-Header: X-Pi-hole: The Pi-hole Web interface is working!
*** [ DIAGNOSING ]: Gravity list
-rw-r--r-- 1 root root 1882641 Apr 30 13:36 /etc/pihole/gravity.list
-----head of gravity.list------
0.0.0.0
0.0.0.0.beeglivesex.com
0.0.0.0.creative.hpyrdr.com
0.0.0.0.hpyrdr.com
-----tail of gravity.list------
zzz.clickbank.net
zzzezeroe.fr
zzzpooeaz-france.com
zzzrtrcm2.com
*** [ DIAGNOSING ]: contents of /etc/pihole
-rw-r--r-- 1 root root 275 Apr 30 12:29 /etc/pihole/adlists.list
https://raw.githubusercontent.com/StevenBlack/hosts/master/hosts
https://mirror1.malwaredomains.com/files/justdomains
http://sysctl.org/cameleon/hosts
https://s3.amazonaws.com/lists.disconnect.me/simple_tracking.txt
https://s3.amazonaws.com/lists.disconnect.me/simple_ad.txt
-rw-r--r-- 1 root root 0 Apr 30 13:36 /etc/pihole/blacklist.txt
-rw-r--r-- 1 root root 33 Apr 30 13:36 /etc/pihole/local.list
10.0.0.2 pihole
10.0.0.2 pi.hole
-rw-r--r-- 1 root root 234 Apr 30 12:29 /etc/pihole/logrotate
/var/log/pihole.log {
su root root
daily
copytruncate
rotate 5
compress
delaycompress
notifempty
nomail
}
/var/log/pihole-FTL.log {
su root root
weekly
copytruncate
rotate 3
compress
delaycompress
notifempty
nomail
}
-rw-r--r-- 1 root root 14 Apr 30 13:36 /etc/pihole/whitelist.txt
acadoodle.com
*** [ DIAGNOSING ]: contents of /etc/dnsmasq.d
-rw-r--r-- 1 root root 1864 Apr 30 23:22 /etc/dnsmasq.d/01-pihole.conf
addn-hosts=/etc/pihole/gravity.list
addn-hosts=/etc/pihole/black.list
addn-hosts=/etc/pihole/local.list
localise-queries
no-resolv
cache-size=10000
log-queries
log-facility=/var/log/pihole.log
local-ttl=2
log-async
dhcp-name-match=set:hostname-ignore,wpad
dhcp-name-match=set:hostname-ignore,localhost
dhcp-ignore-names=tag:hostname-ignore
server=8.8.8.8
server=8.8.4.4
server=208.67.222.222
server=208.67.220.220
server=4.2.2.1
server=4.2.2.2
server=8.26.56.26
server=8.20.247.20
server=84.200.69.80
server=84.200.70.40
server=9.9.9.9
server=149.112.112.112
server=9.9.9.10
server=149.112.112.10
server=9.9.9.11
server=149.112.112.11
server=1.1.1.1
server=1.0.0.1
domain-needed
bogus-priv
local-service
server=/use-application-dns.net/
-rw-r--r-- 1 root root 474 Apr 30 13:29 /etc/dnsmasq.d/02-pihole-dhcp.conf
dhcp-authoritative
dhcp-range=10.0.0.201,10.0.0.251,24h
dhcp-option=option:router,10.0.0.1
dhcp-leasefile=/etc/pihole/dhcp.leases
domain=lan
*** [ DIAGNOSING ]: contents of /etc/lighttpd
-rw-r--r-- 1 root root 3499 Apr 30 12:29 /etc/lighttpd/lighttpd.conf
server.modules = (
"mod_access",
"mod_accesslog",
"mod_auth",
"mod_expire",
"mod_compress",
"mod_redirect",
"mod_setenv",
"mod_rewrite"
)
server.document-root = "/var/www/html"
server.error-handler-404 = "/pihole/index.php"
server.upload-dirs = ( "/var/cache/lighttpd/uploads" )
server.errorlog = "/var/log/lighttpd/error.log"
server.pid-file = "/var/run/lighttpd.pid"
server.username = "www-data"
server.groupname = "www-data"
server.port = 80
accesslog.filename = "/var/log/lighttpd/access.log"
accesslog.format = "%{%s}t|%V|%r|%s|%b"
index-file.names = ( "index.php", "index.html", "index.lighttpd.html" )
url.access-deny = ( "~", ".inc", ".md", ".yml", ".ini" )
static-file.exclude-extensions = ( ".php", ".pl", ".fcgi" )
compress.cache-dir = "/var/cache/lighttpd/compress/"
compress.filetype = ( "application/javascript", "text/css", "text/html", "text/plain" )
mimetype.assign = ( ".png" => "image/png",
".jpg" => "image/jpeg",
".jpeg" => "image/jpeg",
".html" => "text/html",
".css" => "text/css; charset=utf-8",
".js" => "application/javascript",
".json" => "application/json",
".txt" => "text/plain",
".svg" => "image/svg+xml" )
include_shell "/usr/share/lighttpd/use-ipv6.pl " + server.port
include_shell "find /etc/lighttpd/conf-enabled -name '*.conf' -a ! -name 'letsencrypt.conf' -printf 'include \"%p\"
' 2>/dev/null"
$HTTP["url"] =~ "^/admin/" {
setenv.add-response-header = (
"X-Pi-hole" => "The Pi-hole Web interface is working!",
"X-Frame-Options" => "DENY"
)
$HTTP["url"] =~ ".ttf$" {
setenv.add-response-header = ( "Access-Control-Allow-Origin" => "*" )
}
}
$HTTP["url"] =~ "^/admin/\.(.*)" {
url.access-deny = ("")
}
include_shell "cat external.conf 2>/dev/null"
*** [ DIAGNOSING ]: contents of /etc/cron.d
-rw-r--r-- 1 root root 1703 Apr 30 12:29 /etc/cron.d/pihole
46 3 * * 7 root PATH="$PATH:/usr/local/bin/" pihole updateGravity >/var/log/pihole_updateGravity.log || cat /var/log/pihole_updateGravity.log
00 00 * * * root PATH="$PATH:/usr/local/bin/" pihole flush once quiet
@reboot root /usr/sbin/logrotate /etc/pihole/logrotate
*/10 * * * * root PATH="$PATH:/usr/local/bin/" pihole updatechecker local
6 12 * * * root PATH="$PATH:/usr/local/bin/" pihole updatechecker remote
@reboot root PATH="$PATH:/usr/local/bin/" pihole updatechecker remote reboot
*** [ DIAGNOSING ]: contents of /var/log/lighttpd
-rw-r--r-- 1 www-data www-data 3261 Apr 30 18:17 /var/log/lighttpd/error.log
2020-03-14 10:06:17: (server.c.1464) server started (lighttpd/1.4.53)
2020-03-14 10:06:50: (server.c.2059) server stopped by UID = 0 PID = 1
2020-03-14 10:06:51: (server.c.1464) server started (lighttpd/1.4.53)
2020-03-14 10:06:51: (server.c.1493) WARNING: unknown config-key: alias.url (ignored)
2020-03-14 10:09:52: (server.c.2059) server stopped by UID = 0 PID = 1
2020-03-14 10:10:01: (server.c.1464) server started (lighttpd/1.4.53)
2020-03-14 10:10:01: (server.c.1493) WARNING: unknown config-key: alias.url (ignored)
2020-03-14 10:11:53: (server.c.2059) server stopped by UID = 0 PID = 1
2020-03-14 10:12:01: (server.c.1464) server started (lighttpd/1.4.53)
2020-03-14 10:12:01: (server.c.1493) WARNING: unknown config-key: alias.url (ignored)
2020-03-14 10:18:21: (server.c.2059) server stopped by UID = 0 PID = 1
2020-03-14 10:18:29: (server.c.1464) server started (lighttpd/1.4.53)
2020-03-14 10:18:29: (server.c.1493) WARNING: unknown config-key: alias.url (ignored)
2020-03-14 10:21:24: (server.c.2059) server stopped by UID = 0 PID = 1
2020-03-14 10:21:31: (server.c.1464) server started (lighttpd/1.4.53)
2020-03-14 10:21:31: (server.c.1493) WARNING: unknown config-key: alias.url (ignored)
2020-03-14 10:22:12: (server.c.1464) server started (lighttpd/1.4.53)
2020-03-14 10:22:12: (server.c.1493) WARNING: unknown config-key: alias.url (ignored)
2020-03-14 10:35:20: (server.c.2059) server stopped by UID = 0 PID = 1
2020-03-14 10:35:27: (server.c.1464) server started (lighttpd/1.4.53)
2020-03-14 10:35:27: (server.c.1493) WARNING: unknown config-key: alias.url (ignored)
2020-04-30 12:29:48: (server.c.2059) server stopped by UID = 0 PID = 1
2020-04-30 12:29:49: (server.c.1464) server started (lighttpd/1.4.53)
2020-04-30 12:29:49: (server.c.1493) WARNING: unknown config-key: alias.url (ignored)
2020-04-30 12:20:29: (server.c.1464) server started (lighttpd/1.4.53)
*** [ DIAGNOSING ]: contents of /var/log
-rw-r--r-- 1 pihole pihole 316 May 1 10:38 /var/log/pihole-FTL.log
-----head of pihole-FTL.log------
[2020-05-01 02:12:42.619 2104] Resizing "/FTL-queries" from 2949120 to 3145728
[2020-05-01 05:00:00.694 2104] Resizing "/FTL-queries" from 3145728 to 3342336
[2020-05-01 07:49:25.130 2104] Resizing "/FTL-queries" from 3342336 to 3538944
[2020-05-01 10:38:36.452 2104] Resizing "/FTL-queries" from 3538944 to 3735552
-----tail of pihole-FTL.log------
[2020-05-01 02:12:42.619 2104] Resizing "/FTL-queries" from 2949120 to 3145728
[2020-05-01 05:00:00.694 2104] Resizing "/FTL-queries" from 3145728 to 3342336
[2020-05-01 07:49:25.130 2104] Resizing "/FTL-queries" from 3342336 to 3538944
[2020-05-01 10:38:36.452 2104] Resizing "/FTL-queries" from 3538944 to 3735552
*** [ DIAGNOSING ]: contents of /dev/shm
-rw------- 1 pihole pihole 323584 Apr 30 23:22 /dev/shm/FTL-clients
-rw------- 1 pihole pihole 108 Apr 30 23:22 /dev/shm/FTL-counters
-rw------- 1 pihole pihole 65536 Apr 30 23:22 /dev/shm/FTL-domains
-rw------- 1 pihole pihole 12288 Apr 30 23:22 /dev/shm/FTL-forwarded
-rw------- 1 pihole pihole 28 Apr 30 23:22 /dev/shm/FTL-lock
-rw------- 1 pihole pihole 53248 Apr 30 23:22 /dev/shm/FTL-overTime
-rw------- 1 pihole pihole 3735552 May 1 10:59 /dev/shm/FTL-queries
-rw------- 1 pihole pihole 12 Apr 30 23:22 /dev/shm/FTL-settings
-rw------- 1 pihole pihole 8192 Apr 30 23:22 /dev/shm/FTL-strings
*** [ DIAGNOSING ]: Locale
LANG=
*** [ DIAGNOSING ]: Pi-hole log
-rw-r--r-- 1 pihole pihole 40729285 May 1 16:58 /var/log/pihole.log
-----head of pihole.log------
May 1 00:00:08 dnsmasq[2104]: query[A] api.github.com from 127.0.0.1
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 1.0.0.1
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 1.1.1.1
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 149.112.112.11
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 9.9.9.11
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 149.112.112.10
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 9.9.9.10
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 149.112.112.112
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 9.9.9.9
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 84.200.70.40
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 84.200.69.80
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 8.20.247.20
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 8.26.56.26
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 4.2.2.2
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 4.2.2.1
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 208.67.220.220
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 208.67.222.222
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 8.8.4.4
May 1 00:00:08 dnsmasq[2104]: forwarded api.github.com to 8.8.8.8
May 1 00:00:08 dnsmasq[2104]: query[AAAA] api.github.com from 127.0.0.1
********************************************
********************************************
[ā] ** FINISHED DEBUGGING! **
wil run the dhcpcd.conf this afternoon. thanks once again
)
