Pi-hole Not Using Unbound

[skm1983]

Hello, I installed Unbound using this guide: https://docs.pi-hole.net/guides/dns/unbound/

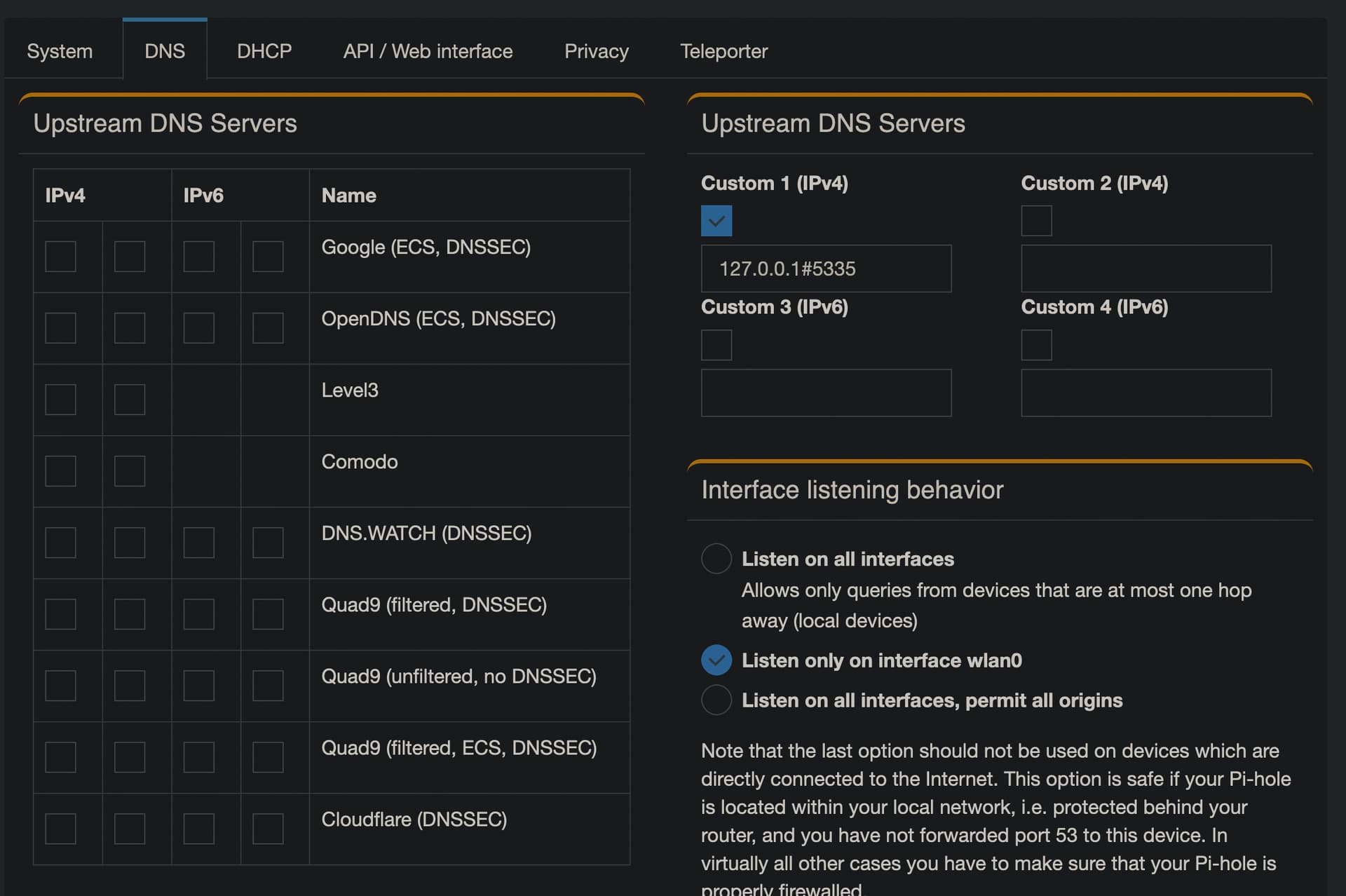

I attached a picture of my DNS settings in the Pi-hole web interface:

When I run service --status-all, it shows that the Unbound service is running.

Running commands like dig pi-hole.net @127.0.0.1 -p 5335 also return positive results (it shows the pi-hole.net IP address).

Expected Behaviour:

I would expect DNS checkers like https://whoismydns.com/ to return my personal, external IP address as the DNS resolver, not Cloudflare or Google.

Actual Behaviour:

DNS checkers like https://whoismydns.com/ show that my DNS server is owned by either Cloudflare or Google (it looks like it changes every few times I check).

Debug Token:

https://tricorder.pi-hole.net/2CWiguFz/

[jfb]

It looks like you are running Raspbian Bullseye, which puts an unwanted configuration file in the unbound folder. What is the output of the following from the Pi terminal?

sudo grep -v '#\|^$' -R /etc/unbound/unbound.conf*

[skm1983]

/etc/unbound/unbound.conf:include-toplevel: "/etc/unbound/unbound.conf.d/*.conf"
/etc/unbound/unbound.conf.d/root-auto-trust-anchor-file.conf:server:
/etc/unbound/unbound.conf.d/root-auto-trust-anchor-file.conf:    auto-trust-anchor-file: "/var/lib/unbound/root.key"
/etc/unbound/unbound.conf.d/pi-hole.conf:server:
/etc/unbound/unbound.conf.d/pi-hole.conf:    verbosity: 0
/etc/unbound/unbound.conf.d/pi-hole.conf:    interface: 127.0.0.1
/etc/unbound/unbound.conf.d/pi-hole.conf:    port: 5335
/etc/unbound/unbound.conf.d/pi-hole.conf:    do-ip4: yes
/etc/unbound/unbound.conf.d/pi-hole.conf:    do-udp: yes
/etc/unbound/unbound.conf.d/pi-hole.conf:    do-tcp: yes
/etc/unbound/unbound.conf.d/pi-hole.conf:    do-ip6: no
/etc/unbound/unbound.conf.d/pi-hole.conf:    prefer-ip6: no
/etc/unbound/unbound.conf.d/pi-hole.conf:    harden-glue: yes
/etc/unbound/unbound.conf.d/pi-hole.conf:    harden-dnssec-stripped: yes
/etc/unbound/unbound.conf.d/pi-hole.conf:    use-caps-for-id: no
/etc/unbound/unbound.conf.d/pi-hole.conf:    prefetch: yes
/etc/unbound/unbound.conf.d/pi-hole.conf:    num-threads: 1
/etc/unbound/unbound.conf.d/pi-hole.conf:    so-rcvbuf: 1m
/etc/unbound/unbound.conf.d/pi-hole.conf:    private-address: fe80::/10
/etc/unbound/unbound.conf.d/resolvconf_resolvers.conf:forward-zone:
/etc/unbound/unbound.conf.d/resolvconf_resolvers.conf:	name: "."

[jfb]

This is the unwanted file, which has turned unbound into a forwarding (not recursive) resolver, using Cloudflare DNS.

/etc/unbound/unbound.conf.d/resolvconf_resolvers.conf:forward-zone:
/etc/unbound/unbound.conf.d/resolvconf_resolvers.conf:	name: "."
/etc/unbound/unbound.conf.d/resolvconf_resolvers.conf:	forward-addr: 1.1.1.1
/etc/unbound/unbound.conf.d/resolvconf_resolvers.conf:	forward-addr: 1.0.0.1

Here's the fix.

1. Edit file /etc/resolvconf.conf and comment out the last line which should read:

unbound_conf=/etc/unbound/unbound.conf.d/resolvconf_resolvers.conf

2. Delete the unwanted unbound configuration file:

sudo rm /etc/unbound/unbound.conf.d/resolvconf_resolvers.conf

3. Restart unbound:

sudo service unbound restart

[skm1983]

Amazing, thank you very much. It's working now.

[wd9895]

As explained in Pihole's Unbound documentation:

https://docs.pi-hole.net/guides/dns/unbound/

[skm1983]

Where is this specific issue explained on that page?

[JackeL]

It isn't there, hasn't been updated yet.
