Any device in the network can connect through IPv6 to the internet

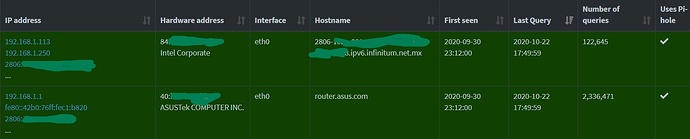

Hi, it seems my ISP has finally assigned me an IPv6 connection, and most of my devices have acquired IPv6 addresses within the last few weeks. I am able to see both their IPv4 & IPv6 IPs on the network management section (I use my Pi-Hole as the network's DHCP server), but for some reason, none of the connected devices are able to solve websites using IPv6.
I am able to run dig from within my Raspberry Pi 4 (running RPiOS arm64 beta) and solve IPv6 addresses both using Unbound and Cloudflared:
dig AAAA ipv6.google.com @127.0.0.1 -p 5335 ; <<>> DiG 9.11.5-P4-5.1+deb10u2-Debian <<>> AAAA ipv6.google.com @127.0.0.1 -p 5335 ;; global options: +cmd ;; Got answer: ;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 35213 ;; flags: qr rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 1 ;; OPT PSEUDOSECTION: ; EDNS: version: 0, flags:; udp: 1472 ;; QUESTION SECTION: ;ipv6.google.com. IN AAAA ;; ANSWER SECTION: ipv6.google.com. 26619 IN CNAME ipv6.l.google.com. ipv6.l.google.com. 300 IN AAAA 2607:f8b0:4012:800::200e ;; Query time: 3106 msec ;; SERVER: 127.0.0.1#5335(127.0.0.1) ;; WHEN: Thu Oct 01 16:42:50 CDT 2020 ;; MSG SIZE rcvd: 93
dig AAAA ipv6.google.com @127.0.0.1 -p 5053 ; <<>> DiG 9.11.5-P4-5.1+deb10u2-Debian <<>> AAAA ipv6.google.com @127.0.0.1 -p 5053 ;; global options: +cmd ;; Got answer: ;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 7917 ;; flags: qr rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 1 ;; OPT PSEUDOSECTION: ; EDNS: version: 0, flags:; udp: 1232 ;; QUESTION SECTION: ;ipv6.google.com. IN AAAA ;; ANSWER SECTION: ipv6.google.com. 28 IN CNAME ipv6.l.google.com. ipv6.l.google.com. 28 IN AAAA 2607:f8b0:4000:802::200e ;; Query time: 67 msec ;; SERVER: 127.0.0.1#5053(127.0.0.1) ;; WHEN: Thu Oct 01 16:43:51 CDT 2020 ;; MSG SIZE rcvd: 135
Even after reconfiguring the installation using
pihole -r and updating gravity with
pihole -g after enabling IPv6 within Unbound, the results stay the same.
My Unbound config:
server: # If no logfile is specified, syslog is used # logfile: "/var/log/unbound/unbound.log" verbosity: 0 interface: 127.0.0.1 port: 5335 do-ip4: yes do-udp: yes do-tcp: yes # May be set to yes if you have IPv6 connectivity do-ip6: yes # You want to leave this to no unless you have *native* IPv6. With 6to4 and # Terredo tunnels your web browser should favor IPv4 for the same reasons prefer-ip6: yes # Use this only when you downloaded the list of primary root servers! root-hints: "/var/lib/unbound/root.hints" # Trust glue only if it is within the server's authority harden-glue: yes # Require DNSSEC data for trust-anchored zones, if such data is absent, the zone becomes BOGUS harden-dnssec-stripped: yes # Don't use Capitalization randomization as it known to cause DNSSEC issues sometimes # see https://discourse.pi-hole.net/t/unbound-stubby-or-dnscrypt-proxy/9378 for further details use-caps-for-id: no # Reduce EDNS reassembly buffer size. # Suggested by the unbound man page to reduce fragmentation reassembly problems edns-buffer-size: 1472 # Perform prefetching of close to expired message cache entries # This only applies to domains that have been frequently queried prefetch: yes # One thread should be sufficient, can be increased on beefy machines. In reality for most users running on small networks or on a single machine, it should be unnecessary to seek performance enhancement by increasing num-threads above 1. num-threads: 1 # Ensure kernel buffer is large enough to not lose messages in traffic spikes so-rcvbuf: 1m # Ensure privacy of local IP ranges private-address: 192.168.0.0/16 private-address: 169.254.0.0/16 private-address: 172.16.0.0/12 private-address: 10.0.0.0/8 private-address: fd00::/8 private-address: fe80::/10
If there's anything else I might need to add, just ask.
Thanks for the help!
