Network manager breaks pi-hole

deHakkelaar · July 23, 2020, 11:15am

My laptop is also using NM but default doesnt have that dns= directive:

dehakkelaar@laptop:~$ cat /etc/NetworkManager/NetworkManager.conf
[main]
plugins=ifupdown,keyfile

[ifupdown]
managed=false

dehakkelaar@laptop:~$ sudo grep 'dns=\|dnsmasq' -R /etc/NetworkManager/
dehakkelaar@laptop:~$

dehakkelaar@laptop:~$ sudo netstat -nltup | grep dnsmasq
dehakkelaar@laptop:~$

dehakkelaar@laptop:~$ cat /etc/resolv.conf
# Generated by NetworkManager
search dehakkelaar.nl
nameserver 10.0.0.2

dnsmasq-base was already installed from previous tinkering.
I added that dns=dnsmasq directive and now have below output after reboot:

dehakkelaar@laptop:~$ cat /etc/NetworkManager/NetworkManager.conf
[main]
plugins=ifupdown,keyfile
dns=dnsmasq

[ifupdown]
managed=false

dehakkelaar@laptop:~$ sudo grep 'dns=\|dnsmasq' -R /etc/NetworkManager/
/etc/NetworkManager/NetworkManager.conf:dns=dnsmasq

dehakkelaar@laptop:~$ sudo netstat -nltup | grep dnsmasq
tcp        0      0 127.0.0.1:53            0.0.0.0:*               LISTEN      1604/dnsmasq
udp        0      0 0.0.0.0:50831           0.0.0.0:*                           1604/dnsmasq
udp        0      0 127.0.0.1:53            0.0.0.0:*                           1604/dnsmasq

dehakkelaar@laptop:~$ cat /etc/resolv.conf
# Generated by NetworkManager
search dehakkelaar.nl
nameserver 127.0.0.1

dehakkelaar@laptop:~$ pstree -s $(pidof dnsmasq)
systemd───NetworkManager───dnsmasq

If I remove that dns=dnsmasq directive again and reboot, everything reverts back to as was before without dnsmasq running.
Are you sure that directive isnt configured somewhere (added sudo below) and did you reboot in between while trying options ?

sudo grep 'dns=\|dnsmasq' -R /etc/NetworkManager/

No its not.
Try clear browser cache first and reload the page.
If that doesn fix, try run below and select repair:

pihole -r

EDIT: ow ps. do you run a desktop ?
Something might be configured in the pi user home folder ~ :

sudo grep 'dns=' -R ~

jfb · July 23, 2020, 1:23pm

Clear the cache on that browser and reload the page.

Coro · July 23, 2020, 1:28pm

Not only almost

github.com/pi-hole/FTL

Add dnsmasq drop-in replacement support

pi-hole:release/v5.0 ← pi-hole:new/dnsmasq_dropin_replacement

opened 09:47AM - 23 Apr 20 UTC

DL6ER

+72 -33

**By submitting this pull request, I confirm the following:** - [X] I have re…ad and understood the [contributors guide](https://github.com/pi-hole/pi-hole/blob/master/CONTRIBUTING.md). - [X] I have checked that [another pull request](https://github.com/pi-hole/FTL/pulls) for this purpose does not exist. - [X] I have considered, and confirmed that this submission will be valuable to others. - [X] I accept that this submission may not be used, and the pull request closed at the will of the maintainer. - [X] I give this submission freely, and claim no ownership to its content. **How familiar are you with the codebase?:** ## 10 --- Add dnsmasq drop-in replacement support. Fixes #734

Pi-hole FTL is everything dnsmasq is (and more!).

deHakkelaar · July 23, 2020, 2:02pm

I said almost as init differs a little.
pihole-FTL relies on /etc/init.d/pihole-FTL.
And dnsmasq on /lib/systemd/system/dnsmasq.service
They start up the binary in slightly a different way.
But nice to know pihole-FTL is optimized for drop-in.

Nickie_emp · July 23, 2020, 6:06pm

I did reboot indeed. This is how it is with a fresh reboot:

pi@raspberrypi:~ $ sudo netstat -nltup | grep 'Proto\|:53 \|:67 \|:80 \|:547 \|:471[1-8] '
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 192.168.0.39:53         0.0.0.0:*               LISTEN      594/dnsmasq
udp        0      0 192.168.0.39:53         0.0.0.0:*                           594/dnsmasq
udp        0      0 0.0.0.0:67              0.0.0.0:*                           594/dnsmasq

pi@raspberrypi:~ $ sudo grep 'dns=\|dnsmasq' -R /etc/NetworkManager/

pi@raspberrypi:~ $ sudo netstat -nltup | grep dnsmasq
tcp        0      0 192.168.0.39:53         0.0.0.0:*               LISTEN      594/dnsmasq
udp        0      0 0.0.0.0:44205           0.0.0.0:*                           594/dnsmasq
udp        0      0 0.0.0.0:10464           0.0.0.0:*                           594/dnsmasq
udp        0      0 0.0.0.0:10497           0.0.0.0:*                           594/dnsmasq
udp        0      0 0.0.0.0:49940           0.0.0.0:*                           594/dnsmasq
udp        0      0 0.0.0.0:25379           0.0.0.0:*                           594/dnsmasq
udp        0      0 0.0.0.0:9201            0.0.0.0:*                           594/dnsmasq
udp        0      0 0.0.0.0:52734           0.0.0.0:*                           594/dnsmasq
udp        0      0 0.0.0.0:15367           0.0.0.0:*                           594/dnsmasq
udp        0      0 192.168.0.39:53         0.0.0.0:*                           594/dnsmasq
udp        0      0 0.0.0.0:67              0.0.0.0:*                           594/dnsmasq
udp        0      0 0.0.0.0:21089           0.0.0.0:*                           594/dnsmasq
udp        0      0 0.0.0.0:50293           0.0.0.0:*                           594/dnsmasq

pi@raspberrypi:~ $ cat /etc/resolv.conf
# Dynamic resolv.conf(5) file for glibc resolver(3) generated by resolvconf(8)
#     DO NOT EDIT THIS FILE BY HAND -- YOUR CHANGES WILL BE OVERWRITTEN
nameserver 192.168.0.39
nameserver 127.0.0.53
search fritz.box

pi@raspberrypi:~ $ pstree -s $(pidof dnsmasq)
systemd───NetworkManager───dnsmasq

pi@raspberrypi:~ $ sudo grep 'dns=\|dnsmasq' -R /etc/NetworkManager/

pi@raspberrypi:~ $ sudo grep 'dns=' -R ~

/home/pi/.bash_history:sudo grep dns= -R /etc/NetworkManager/
/home/pi/.bash_history:sudo grep dns= -R /etc/NetworkManager/
/home/pi/.bash_history:sudo grep 'dns=\|dnsmasq' -R /etc/NetworkManager/
/home/pi/.bash_history:sudo grep 'dns=\|dnsmasq' -R /etc/NetworkManager/

I am guessing that raspberry pi (Buster/10, pi3B+ FYI) is indeed calling dnsmasq from NetworkManager.

FYI, I had put under /etc/NetworkManager/NetworkManager.conf the dns=none, but it was still calling dnsmasq.

deHakkelaar · July 23, 2020, 9:25pm

dns=none or by omitting that directive should provide the expected behaviour according to the man pages:

dehakkelaar@laptop:~$ man NetworkManager.conf
[..]
       dns
           Set the DNS (resolv.conf) processing mode. If the key is
           unspecified, default is used, unless /etc/resolv.conf is a
           symlink to /run/systemd/resolve/resolv.conf,
           /lib/systemd/resolv.conf or /usr/lib/systemd/resolv.conf.
           In that case, systemd-resolved is chosen automatically.

           default: NetworkManager will update /etc/resolv.conf to
           reflect the nameservers provided by currently active
           connections.

           dnsmasq: NetworkManager will run dnsmasq as a local caching
           nameserver, using a "split DNS" configuration if you are
           connected to a VPN, and then update resolv.conf to point to
           the local nameserver. It is possible to pass custom options
           to the dnsmasq instance by adding them to files in the
           "/etc/NetworkManager/dnsmasq.d/" directory.

           none: NetworkManager will not modify resolv.conf. This
           implies rc-manager unmanaged
[..]

What does below show ?

sudo NetworkManager --print-config

Maybe the logs can give some insight.
Could you add below section at the bottom of the /etc/NetworkManager/NetworkManager.conf file:

[logging]
level=TRACE

Reboot and post results for below one ?

sudo journalctl -u NetworkManager | grep 'dns-mgr\|dnsmasq'

Remove those two lines when finished or the systemd journals will grow large.

Nickie_emp · July 24, 2020, 6:41am

I remember putting dns=none and it did not do anything.

I am adding it again

pi@raspberrypi:~ $ sudo NetworkManager --print-config
# NetworkManager configuration: /etc/NetworkManager/NetworkManager.conf (lib: no-mac-addr-change.conf)

[main]
# rc-manager=resolvconf
# auth-polkit=true
# dhcp=dhclient
plugins=ifupdown,keyfile
dns=none

[ifupdown]
managed=false

[logging]
# backend=journal
# audit=true
level=TRACE

[device-mac-addr-change-wifi]
match-device=driver:rtl8723bs,driver:rtl8189es,driver:r8188eu,driver:8188eu,driver:eagle_sdio,driver:wl
wifi.scan-rand-mac-address=no
wifi.cloned-mac-address=preserve
ethernet.cloned-mac-address=preserve
pi@raspberrypi:~ $ sudo cat /etc/NetworkManager/NetworkManager.conf
[main]
plugins=ifupdown,keyfile
dns=none

[ifupdown]
managed=false

[logging]
level=TRACE

I am now rebooting and

i@raspberrypi:~ $ sudo journalctl -u NetworkManager | grep 'dns-mgr\|dnsmasq'
Jul 24 08:26:50 raspberrypi NetworkManager[412]: <trace> [1595572010.7839] dns-mgr[0xae6000]: creating...
Jul 24 08:26:50 raspberrypi NetworkManager[412]: <info>  [1595572010.7840] dns-mgr[0xae6000]: init: dns=none, rc-manager=unmanaged
Jul 24 08:26:50 raspberrypi NetworkManager[412]: <trace> [1595572010.7894] dns-mgr: current configuration: @aa{sv} []
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.6910] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.6911] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.6912] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7007] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7008] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7009] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7267] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7269] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7271] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7291] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7293] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7295] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7962] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7964] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.7965] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.8075] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.8077] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:51 raspberrypi NetworkManager[412]: <debug> [1595572011.8077] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4074] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4083] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4084] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4091] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4092] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4093] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4688] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4689] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4689] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4704] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4705] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4705] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4852] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4853] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.4853] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.5887] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.5888] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.5889] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.5968] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.5969] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:52 raspberrypi NetworkManager[412]: <debug> [1595572012.5970] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <info>  [1595572013.1040] dnsmasq-manager: starting dnsmasq...
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <debug> [1595572013.1041] dnsmasq-manager: command line: /usr/sbin/dnsmasq --log-dhcp --log-queries --conf-file=/dev/null --no-hosts --keep-in-foreground --bind-interfaces --except-interface=lo --clear-on-reload --strict-order --listen-address=192.168.0.39 --dhcp-range=192.168.0.48,192.168.0.254,60m --dhcp-lease-max=50 --dhcp-leasefile=/var/lib/NetworkManager/dnsmasq-eth0.leases --pid-file=/run/nm-dnsmasq-eth0.pid --conf-dir=/etc/NetworkManager/dnsmasq-shared.d
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <debug> [1595572013.1302] dnsmasq-manager: dnsmasq started with pid 597
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <debug> [1595572013.1456] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <debug> [1595572013.1457] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <debug> [1595572013.1457] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:53 raspberrypi dnsmasq[597]: started, version 2.80 cachesize 150
Jul 24 08:26:53 raspberrypi dnsmasq[597]: compile time options: IPv6 GNU-getopt DBus i18n IDN DHCP DHCPv6 no-Lua TFTP conntrack ipset auth DNSSEC loop-detect inotify dumpfile
Jul 24 08:26:53 raspberrypi dnsmasq[597]: chown of PID file /run/nm-dnsmasq-eth0.pid failed: Operation not permitted
Jul 24 08:26:53 raspberrypi dnsmasq-dhcp[597]: DHCP, IP range 192.168.0.48 -- 192.168.0.254, lease time 1h
Jul 24 08:26:53 raspberrypi dnsmasq[597]: reading /etc/resolv.conf
Jul 24 08:26:53 raspberrypi dnsmasq[597]: using nameserver 127.0.0.53#53
Jul 24 08:26:53 raspberrypi dnsmasq[597]: cleared cache
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <debug> [1595572013.2285] dns-mgr: (device_state_changed): queueing DNS updates (1)
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <debug> [1595572013.2286] dns-mgr: (update_routing_and_dns): queueing DNS updates (2)
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <debug> [1595572013.2289] dns-mgr: (update_routing_and_dns): DNS configuration did not change
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <debug> [1595572013.2289] dns-mgr: (update_routing_and_dns): no DNS changes to commit (1)
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <debug> [1595572013.2290] dns-mgr: (device_state_changed): DNS configuration did not change
Jul 24 08:26:53 raspberrypi NetworkManager[412]: <debug> [1595572013.2290] dns-mgr: (device_state_changed): no DNS changes to commit (0)
Jul 24 08:26:54 raspberrypi NetworkManager[412]: <debug> [1595572014.3314] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:54 raspberrypi NetworkManager[412]: <debug> [1595572014.3316] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:54 raspberrypi NetworkManager[412]: <debug> [1595572014.3317] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:54 raspberrypi NetworkManager[412]: <debug> [1595572014.3373] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:26:54 raspberrypi NetworkManager[412]: <debug> [1595572014.3382] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:26:54 raspberrypi NetworkManager[412]: <debug> [1595572014.3383] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:26:55 raspberrypi dnsmasq[597]: query[A] fritz.box from 192.168.0.63
Jul 24 08:26:55 raspberrypi dnsmasq[597]: forwarded fritz.box to 127.0.0.53
Jul 24 08:26:55 raspberrypi dnsmasq[597]: query[A] wpad.fritz.box from 192.168.0.63
Jul 24 08:26:55 raspberrypi dnsmasq[597]: forwarded wpad.fritz.box to 127.0.0.53
Jul 24 08:26:55 raspberrypi dnsmasq[597]: query[A] fritz.box from 192.168.0.63
Jul 24 08:26:55 raspberrypi dnsmasq[597]: forwarded fritz.box to 127.0.0.53
Jul 24 08:26:56 raspberrypi dnsmasq[597]: query[A] wpad.fritz.box from 192.168.0.63
Jul 24 08:26:56 raspberrypi dnsmasq[597]: forwarded wpad.fritz.box to 127.0.0.53
Jul 24 08:26:56 raspberrypi dnsmasq[597]: query[A] fritz.box from 192.168.0.63
Jul 24 08:26:56 raspberrypi dnsmasq[597]: forwarded fritz.box to 127.0.0.53
Jul 24 08:26:58 raspberrypi dnsmasq[597]: query[A] wpad.fritz.box from 192.168.0.63
Jul 24 08:26:58 raspberrypi dnsmasq[597]: forwarded wpad.fritz.box to 127.0.0.53
Jul 24 08:26:58 raspberrypi dnsmasq[597]: query[A] fritz.box from 192.168.0.63
Jul 24 08:26:58 raspberrypi dnsmasq[597]: forwarded fritz.box to 127.0.0.53
Jul 24 08:27:02 raspberrypi dnsmasq[597]: query[A] fritz.box from 192.168.0.63
Jul 24 08:27:02 raspberrypi dnsmasq[597]: forwarded fritz.box to 127.0.0.53
Jul 24 08:27:02 raspberrypi NetworkManager[412]: <debug> [1595572022.7998] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:27:02 raspberrypi NetworkManager[412]: <debug> [1595572022.8000] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:27:02 raspberrypi NetworkManager[412]: <debug> [1595572022.8001] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:27:02 raspberrypi NetworkManager[412]: <debug> [1595572022.8860] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:27:02 raspberrypi NetworkManager[412]: <debug> [1595572022.8862] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:27:02 raspberrypi NetworkManager[412]: <debug> [1595572022.8863] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:27:02 raspberrypi NetworkManager[412]: <debug> [1595572022.8906] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:27:02 raspberrypi NetworkManager[412]: <debug> [1595572022.8907] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:27:02 raspberrypi NetworkManager[412]: <debug> [1595572022.8908] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:27:03 raspberrypi dnsmasq-dhcp[597]: 3092705378 available DHCP range: 192.168.0.48 -- 192.168.0.254
Jul 24 08:27:03 raspberrypi dnsmasq-dhcp[597]: 3092705378 client provides name: raspberrypi
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.0772] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.0773] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.0773] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.1228] dns-mgr: (device_state_changed): queueing DNS updates (1)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.1229] dns-mgr: (update_routing_and_dns): queueing DNS updates (2)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.1253] dns-mgr: (update_routing_and_dns): DNS configuration changed
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.1253] dns-mgr: (update_routing_and_dns): no DNS changes to commit (1)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.1253] dns-mgr: (device_state_changed): DNS configuration changed
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.1254] dns-mgr: (device_state_changed): committing DNS changes (0)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.1255] dns-mgr: update-dns: not updating resolv.conf
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <trace> [1595572023.1255] dns-mgr: config:      100 best    v4 3     : 192.168.0.39
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <trace> [1595572023.1258] dns-mgr: update-resolv-conf: write internal file /run/NetworkManager/resolv.conf succeeded
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <trace> [1595572023.1261] dns-mgr: current configuration: [{'nameservers': <['192.168.0.39']>, 'domains': <['fritz.box']>, 'interface': <'wlan0'>, 'priority': <100>, 'vpn': <false>}]
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.5741] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.5742] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.5742] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.5869] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.5870] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.5871] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.6296] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.6298] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.6298] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.6332] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.6333] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:27:03 raspberrypi NetworkManager[412]: <debug> [1595572023.6333] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:27:04 raspberrypi NetworkManager[412]: <debug> [1595572024.4117] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:27:04 raspberrypi NetworkManager[412]: <debug> [1595572024.4119] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:27:04 raspberrypi NetworkManager[412]: <debug> [1595572024.4119] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:27:04 raspberrypi NetworkManager[412]: <debug> [1595572024.4169] dns-mgr: (device_ip_config_changed): queueing DNS updates (1)
Jul 24 08:27:04 raspberrypi NetworkManager[412]: <debug> [1595572024.4180] dns-mgr: (device_ip_config_changed): DNS configuration did not change
Jul 24 08:27:04 raspberrypi NetworkManager[412]: <debug> [1595572024.4181] dns-mgr: (device_ip_config_changed): no DNS changes to commit (0)
Jul 24 08:27:05 raspberrypi dnsmasq[597]: query[A] g.live.com from 192.168.0.63
Jul 24 08:27:05 raspberrypi dnsmasq[597]: forwarded g.live.com to 127.0.0.53
Jul 24 08:27:05 raspberrypi dnsmasq[597]: query[A] g.live.com from 192.168.0.63
Jul 24 08:27:05 raspberrypi dnsmasq[597]: forwarded g.live.com to 127.0.0.53
Jul 24 08:27:06 raspberrypi dnsmasq[597]: query[A] g.live.com from 192.168.0.63
Jul 24 08:27:06 raspberrypi dnsmasq[597]: forwarded g.live.com to 127.0.0.53
Jul 24 08:27:08 raspberrypi dnsmasq[597]: query[A] g.live.com from 192.168.0.63
Jul 24 08:27:08 raspberrypi dnsmasq[597]: forwarded g.live.com to 127.0.0.53
Jul 24 08:27:12 raspberrypi dnsmasq[597]: query[A] g.live.com from 192.168.0.63
Jul 24 08:27:12 raspberrypi dnsmasq[597]: forwarded g.live.com to 127.0.0.53
pi@raspberrypi:~ $

removing the two lines

pi@raspberrypi:~ $ sudo cat /etc/NetworkManager/NetworkManager.conf
[main]
plugins=ifupdown,keyfile
dns=none

[ifupdown]
managed=false

pi@raspberrypi:~ $ sudo netstat -nltup | grep 'Proto\|:53 \|:67 \|:80 \|:547 \|:471[1-8] '
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      1120/lighttpd
tcp        0      0 192.168.0.39:53         0.0.0.0:*               LISTEN      597/dnsmasq
tcp6       0      0 :::80                   :::*                    LISTEN      1120/lighttpd
udp        0      0 192.168.0.39:53         0.0.0.0:*                           597/dnsmasq
udp        0      0 0.0.0.0:67              0.0.0.0:*                           597/dnsmasq

The only behavior I see is that when I put dns=none, NM cannot share my connections, but this may be fixed later on, idk

I believe RPi to be ignoring the dns=none (you can see it in the log, it starts with a parameter/argument dns=none and then later on it launches dnsmasq...). Not sure if this info will help, but dnsmasq is there even before lighttpd is launched (I see this when quickly launching upon reboot sudo netstat -nltup | grep 'Proto|:53 |:67 |:80 |:547 |:471[1-8] ')

deHakkelaar · July 24, 2020, 8:33am

Assumption being the mother of all f-ups ... thinking dnsmasq gets started for its DNS caching capabilities.
Totally forgetting it can also do DHCP.

Notice the --dhcp-range= argument above.
Am pretty sure some NM setting you configured triggers dnsmasq getting started for its DHCP server capabilities (pihole-FTL can also take over this part).
Can you post output for below ?

sudo grep -v '^\s*#\|^\s*$' -R /etc/NetworkManager/ --include=*.conf | sort | sed 's\:\ \' | column -t

Dit you create some sort of NM profile for connection sharing or similar that depends on running your own DHCP ?

EDIT:

nmcli connection show --active

Replace <UUID> below with the one found from above:

nmcli connection show <UUID>

EDIT2: might want to redact some of the output for that last one !

Nickie_emp · July 24, 2020, 8:58am

pi@raspberrypi:~ $ sudo grep -v '^\s*#\|^\s*$' -R /etc/NetworkManager/ --include=*.conf | sort | sed 's\:\ \' | column -t
/etc/NetworkManager/NetworkManager.conf  [ifupdown]
/etc/NetworkManager/NetworkManager.conf  [main]
/etc/NetworkManager/NetworkManager.conf  managed=false
/etc/NetworkManager/NetworkManager.conf  plugins=ifupdown,keyfile


pi@raspberrypi:~ $ nmcli connection show --active
NAME                UUID                                  TYPE      DEVICE
Nick.AP.5           56266699-a057-4a91-94bb-9515df8acbfd  wifi      wlan0
Wired connection 1  e7f72c54-a50c-36b7-bb49-2c6d1896a36d  ethernet  eth0


pi@raspberrypi:~ $ nmcli connection show 56266699-a057-4a91-94bb-9515df8acbfd
connection.id:                          Nick.AP.5
connection.uuid:                        56266699-a057-4a91-94bb-9515df8acbfd
connection.stable-id:                   --
connection.type:                        802-11-wireless
connection.interface-name:              --
connection.autoconnect:                 yes
connection.autoconnect-priority:        5
connection.autoconnect-retries:         -1 (default)
connection.multi-connect:               0 (default)
connection.auth-retries:                -1
connection.timestamp:                   1595580561
connection.read-only:                   no
connection.permissions:                 --
connection.zone:                        --
connection.master:                      --
connection.slave-type:                  --
connection.autoconnect-slaves:          -1 (default)
connection.secondaries:                 --
connection.gateway-ping-timeout:        0
connection.metered:                     unknown
connection.lldp:                        default
connection.mdns:                        -1 (default)
connection.llmnr:                       -1 (default)
802-11-wireless.ssid:                   Nick.AP.5
802-11-wireless.mode:                   infrastructure
802-11-wireless.band:                   --
802-11-wireless.channel:                0
802-11-wireless.bssid:                  --
802-11-wireless.rate:                   0
802-11-wireless.tx-power:               0
802-11-wireless.mac-address:            <redacted>
802-11-wireless.cloned-mac-address:     --
802-11-wireless.generate-mac-address-mask:--
802-11-wireless.mac-address-blacklist:  --
802-11-wireless.mac-address-randomization:default
802-11-wireless.mtu:                    auto
802-11-wireless.seen-bssids:            <redacted>
802-11-wireless.hidden:                 no
802-11-wireless.powersave:              0 (default)
802-11-wireless.wake-on-wlan:           0x1 (default)
802-11-wireless-security.key-mgmt:      wpa-psk
802-11-wireless-security.wep-tx-keyidx: 0
802-11-wireless-security.auth-alg:      --
802-11-wireless-security.proto:         --
802-11-wireless-security.pairwise:      --
802-11-wireless-security.group:         --
802-11-wireless-security.pmf:           0 (default)
802-11-wireless-security.leap-username: --
802-11-wireless-security.wep-key0:      <hidden>
802-11-wireless-security.wep-key1:      <hidden>
802-11-wireless-security.wep-key2:      <hidden>
802-11-wireless-security.wep-key3:      <hidden>
802-11-wireless-security.wep-key-flags: 0 (none)
802-11-wireless-security.wep-key-type:  unknown
802-11-wireless-security.psk:           <hidden>
802-11-wireless-security.psk-flags:     0 (none)
802-11-wireless-security.leap-password: <hidden>
802-11-wireless-security.leap-password-flags:0 (none)
802-11-wireless-security.wps-method:    0 (default)
802-11-wireless-security.fils:          0 (default)
ipv4.method:                            auto
ipv4.dns:                               --
ipv4.dns-search:                        --
ipv4.dns-options:                       ""
ipv4.dns-priority:                      0
ipv4.addresses:                         --
ipv4.gateway:                           --
ipv4.routes:                            --
ipv4.route-metric:                      -1
ipv4.route-table:                       0 (unspec)
ipv4.ignore-auto-routes:                no
ipv4.ignore-auto-dns:                   no
ipv4.dhcp-client-id:                    --
ipv4.dhcp-timeout:                      0 (default)
ipv4.dhcp-send-hostname:                yes
ipv4.dhcp-hostname:                     --
ipv4.dhcp-fqdn:                         --
ipv4.never-default:                     no
ipv4.may-fail:                          yes
ipv4.dad-timeout:                       -1 (default)
ipv6.method:                            auto
ipv6.dns:                               --
ipv6.dns-search:                        --
ipv6.dns-options:                       ""
ipv6.dns-priority:                      0
ipv6.addresses:                         --
ipv6.gateway:                           --
ipv6.routes:                            --
ipv6.route-metric:                      -1
ipv6.route-table:                       0 (unspec)
ipv6.ignore-auto-routes:                no
ipv6.ignore-auto-dns:                   no
ipv6.never-default:                     no
ipv6.may-fail:                          yes
ipv6.ip6-privacy:                       0 (disabled)
ipv6.addr-gen-mode:                     stable-privacy
ipv6.dhcp-duid:                         --
ipv6.dhcp-send-hostname:                yes
ipv6.dhcp-hostname:                     --
ipv6.token:                             --
proxy.method:                           none
proxy.browser-only:                     no
proxy.pac-url:                          --
proxy.pac-script:                       --
GENERAL.NAME:                           Nick.AP.5
GENERAL.UUID:                           56266699-a057-4a91-94bb-9515df8acbfd
GENERAL.DEVICES:                        wlan0
GENERAL.STATE:                          activated
GENERAL.DEFAULT:                        yes
GENERAL.DEFAULT6:                       no
GENERAL.SPEC-OBJECT:                    /org/freedesktop/NetworkManager/AccessPoint/22
GENERAL.VPN:                            no
GENERAL.DBUS-PATH:                      /org/freedesktop/NetworkManager/ActiveConnection/2
GENERAL.CON-PATH:                       /org/freedesktop/NetworkManager/Settings/1
GENERAL.ZONE:                           --
GENERAL.MASTER-PATH:                    --
IP4.ADDRESS[1]:                         192.168.0.51/24
IP4.GATEWAY:                            192.168.0.1
IP4.ROUTE[1]:                           dst = 192.168.0.0/24, nh = 0.0.0.0, mt = 600
IP4.ROUTE[2]:                           dst = 0.0.0.0/0, nh = 192.168.0.1, mt = 600
IP4.DNS[1]:                             192.168.0.39
IP4.DOMAIN[1]:                          fritz.box
DHCP4.OPTION[1]:                        broadcast_address = 192.168.0.255
DHCP4.OPTION[2]:                        dad_wait_time = 0
DHCP4.OPTION[3]:                        dhcp_lease_time = 86400
DHCP4.OPTION[4]:                        dhcp_message_type = 5
DHCP4.OPTION[5]:                        dhcp_rebinding_time = 75600
DHCP4.OPTION[6]:                        dhcp_renewal_time = 43200
DHCP4.OPTION[7]:                        dhcp_server_identifier = 192.168.0.1
DHCP4.OPTION[8]:                        domain_name = fritz.box
DHCP4.OPTION[9]:                        domain_name_servers = 192.168.0.39
DHCP4.OPTION[10]:                       expiry = 1595666961
DHCP4.OPTION[11]:                       ip_address = 192.168.0.51
DHCP4.OPTION[12]:                       network_number = 192.168.0.0
DHCP4.OPTION[13]:                       next_server = 192.168.0.1
DHCP4.OPTION[14]:                       ntp_servers = 192.168.0.1
DHCP4.OPTION[15]:                       requested_broadcast_address = 1
DHCP4.OPTION[16]:                       requested_domain_name = 1
DHCP4.OPTION[17]:                       requested_domain_name_servers = 1
DHCP4.OPTION[18]:                       requested_domain_search = 1
DHCP4.OPTION[19]:                       requested_host_name = 1
DHCP4.OPTION[20]:                       requested_interface_mtu = 1
DHCP4.OPTION[21]:                       requested_ms_classless_static_routes = 1
DHCP4.OPTION[22]:                       requested_netbios_name_servers = 1
DHCP4.OPTION[23]:                       requested_netbios_scope = 1
DHCP4.OPTION[24]:                       requested_ntp_servers = 1
DHCP4.OPTION[25]:                       requested_rfc3442_classless_static_routes = 1
DHCP4.OPTION[26]:                       requested_root_path = 1
DHCP4.OPTION[27]:                       requested_routers = 1
DHCP4.OPTION[28]:                       requested_static_routes = 1
DHCP4.OPTION[29]:                       requested_subnet_mask = 1
DHCP4.OPTION[30]:                       requested_time_offset = 1
DHCP4.OPTION[31]:                       requested_wpad = 1
DHCP4.OPTION[32]:                       routers = 192.168.0.1
DHCP4.OPTION[33]:                       subnet_mask = 255.255.255.0
IP6.ADDRESS[1]:                         <redacted>
IP6.GATEWAY:                            --
IP6.ROUTE[1]:                           dst = fe80::/64, nh = ::, mt = 600
IP6.ROUTE[2]:                           dst = ff00::/8, nh = ::, mt = 256, table=255

pi@raspberrypi:~ $ nmcli connection show e7f72c54-a50c-36b7-bb49-2c6d1896a36d
connection.id:                          Wired connection 1
connection.uuid:                        e7f72c54-a50c-36b7-bb49-2c6d1896a36d
connection.stable-id:                   --
connection.type:                        802-3-ethernet
connection.interface-name:              --
connection.autoconnect:                 yes
connection.autoconnect-priority:        0
connection.autoconnect-retries:         -1 (default)
connection.multi-connect:               0 (default)
connection.auth-retries:                -1
connection.timestamp:                   1595580551
connection.read-only:                   no
connection.permissions:                 --
connection.zone:                        --
connection.master:                      --
connection.slave-type:                  --
connection.autoconnect-slaves:          -1 (default)
connection.secondaries:                 --
connection.gateway-ping-timeout:        0
connection.metered:                     unknown
connection.lldp:                        default
connection.mdns:                        -1 (default)
connection.llmnr:                       -1 (default)
802-3-ethernet.port:                    --
802-3-ethernet.speed:                   0
802-3-ethernet.duplex:                  --
802-3-ethernet.auto-negotiate:          no
802-3-ethernet.mac-address:             <redacted>
802-3-ethernet.cloned-mac-address:      --
802-3-ethernet.generate-mac-address-mask:--
802-3-ethernet.mac-address-blacklist:   --
802-3-ethernet.mtu:                     auto
802-3-ethernet.s390-subchannels:        --
802-3-ethernet.s390-nettype:            --
802-3-ethernet.s390-options:            --
802-3-ethernet.wake-on-lan:             default
802-3-ethernet.wake-on-lan-password:    --
ipv4.method:                            shared
ipv4.dns:                               --
ipv4.dns-search:                        --
ipv4.dns-options:                       ""
ipv4.dns-priority:                      0
ipv4.addresses:                         192.168.0.39/24
ipv4.gateway:                           --
ipv4.routes:                            --
ipv4.route-metric:                      -1
ipv4.route-table:                       0 (unspec)
ipv4.ignore-auto-routes:                no
ipv4.ignore-auto-dns:                   no
ipv4.dhcp-client-id:                    --
ipv4.dhcp-timeout:                      0 (default)
ipv4.dhcp-send-hostname:                yes
ipv4.dhcp-hostname:                     --
ipv4.dhcp-fqdn:                         --
ipv4.never-default:                     no
ipv4.may-fail:                          yes
ipv4.dad-timeout:                       -1 (default)
ipv6.method:                            auto
ipv6.dns:                               --
ipv6.dns-search:                        --
ipv6.dns-options:                       ""
ipv6.dns-priority:                      0
ipv6.addresses:                         --
ipv6.gateway:                           --
ipv6.routes:                            --
ipv6.route-metric:                      -1
ipv6.route-table:                       0 (unspec)
ipv6.ignore-auto-routes:                no
ipv6.ignore-auto-dns:                   no
ipv6.never-default:                     no
ipv6.may-fail:                          yes
ipv6.ip6-privacy:                       0 (disabled)
ipv6.addr-gen-mode:                     stable-privacy
ipv6.dhcp-duid:                         --
ipv6.dhcp-send-hostname:                yes
ipv6.dhcp-hostname:                     --
ipv6.token:                             --
proxy.method:                           none
proxy.browser-only:                     no
proxy.pac-url:                          --
proxy.pac-script:                       --
GENERAL.NAME:                           Wired connection 1
GENERAL.UUID:                           e7f72c54-a50c-36b7-bb49-2c6d1896a36d
GENERAL.DEVICES:                        eth0
GENERAL.STATE:                          activated
GENERAL.DEFAULT:                        no
GENERAL.DEFAULT6:                       no
GENERAL.SPEC-OBJECT:                    --
GENERAL.VPN:                            no
GENERAL.DBUS-PATH:                      /org/freedesktop/NetworkManager/ActiveConnection/1
GENERAL.CON-PATH:                       /org/freedesktop/NetworkManager/Settings/3
GENERAL.ZONE:                           --
GENERAL.MASTER-PATH:                    --
IP4.ADDRESS[1]:                         192.168.0.39/24
IP4.GATEWAY:                            --
IP4.ROUTE[1]:                           dst = 192.168.0.0/24, nh = 0.0.0.0, mt = 100
IP6.ADDRESS[1]:                         fe80::cd1a:c32f:149e:5bab/64
IP6.GATEWAY:                            --
IP6.ROUTE[1]:                           dst = fe80::/64, nh = ::, mt = 100
IP6.ROUTE[2]:                           dst = ff00::/8, nh = ::, mt = 256, table=255

I hope I have redacted enough and not too much either.

I think NM has done this. Automatically, I shared my wifi connection to the ethernet link.

deHakkelaar · July 24, 2020, 9:06am

That Nick.AP.5 profile triggers dnsmasq getting started.
See all the DHCP4.OPTION 's being displayed for that profile.
Seems you cant use this type of profile as it starts dnsmasq that conflicts with pihole-FTL over ports 53 DNS and 67 DHCP.
You should try alter that profile (or create new one) so it doesnt boot up dnsmasq for DHCP.
And when have Pi-hole up and running, configure Pi-hole to do DHCP instead.

Nickie_emp · July 24, 2020, 9:10am

so how do I do that? do I delete the shared connection? how can pihole share a connection from wifi to lan?

deHakkelaar · July 24, 2020, 9:14am

I dont know whats configured in that profile.
Do you run a desktop ?
If so, post screens:

sudo nm-connection-editor

Pi-hole's DHCP service can be configured and activated through the admin web GUI.

Nickie_emp · July 24, 2020, 9:22am

I just unshared my lan shared connection and pihole-FTL took over with sudo netstat -nltup | grep 'Proto|:53 |:67 |:80 |:547 |:471[1-8] '

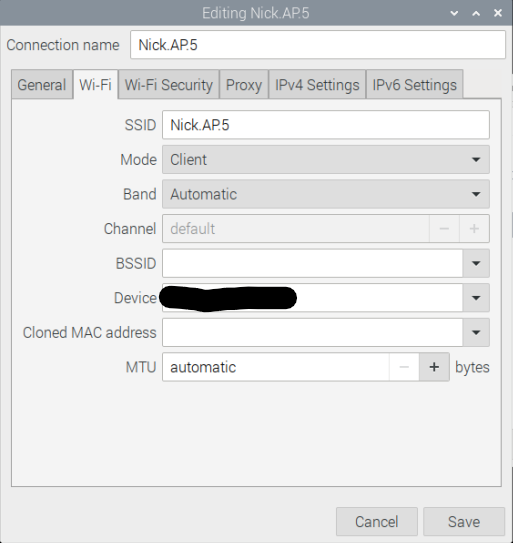

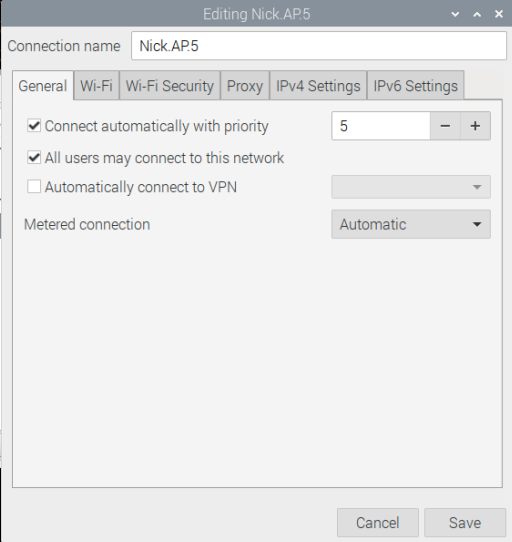

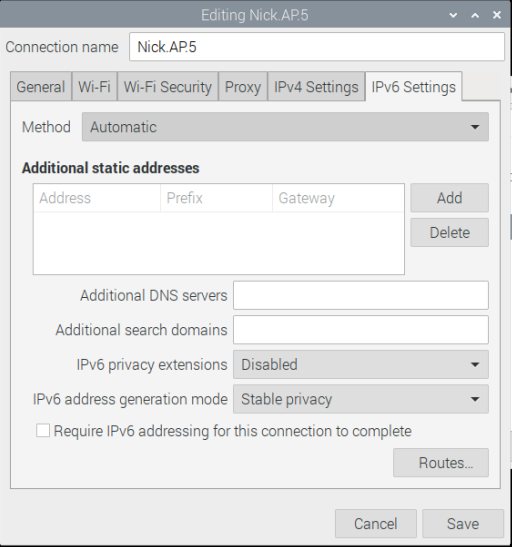

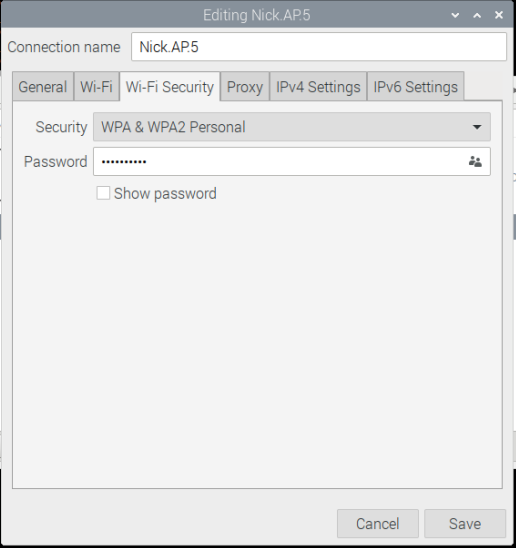

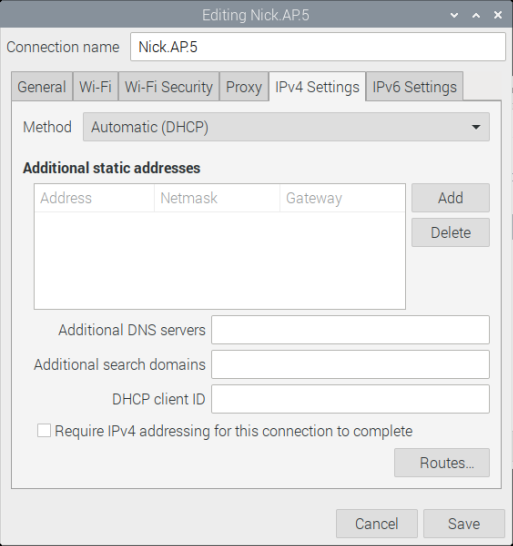

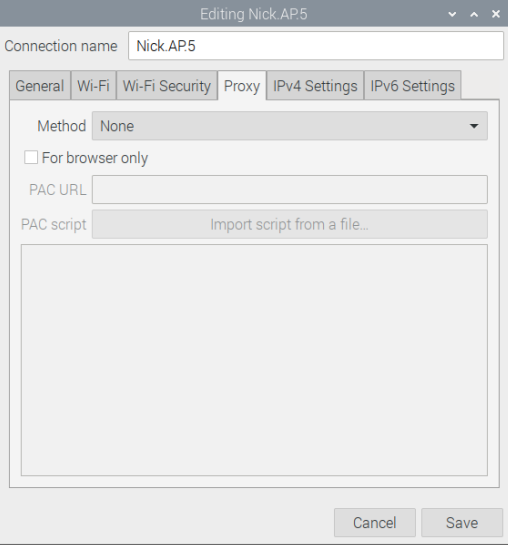

Here is the Nick.AP.5

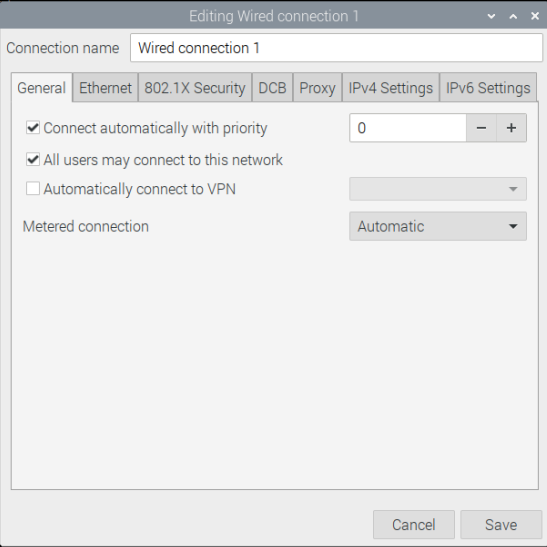

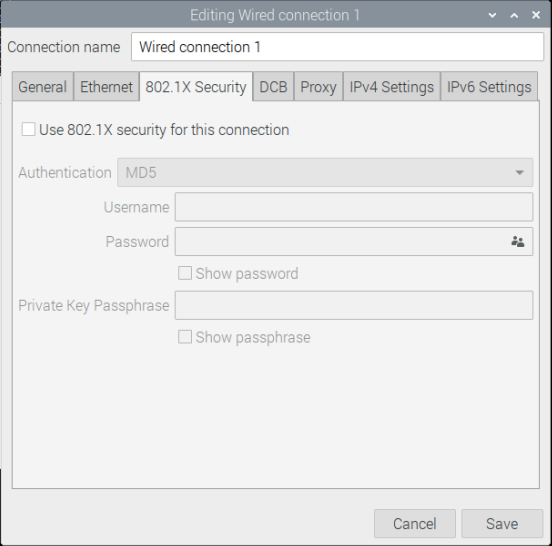

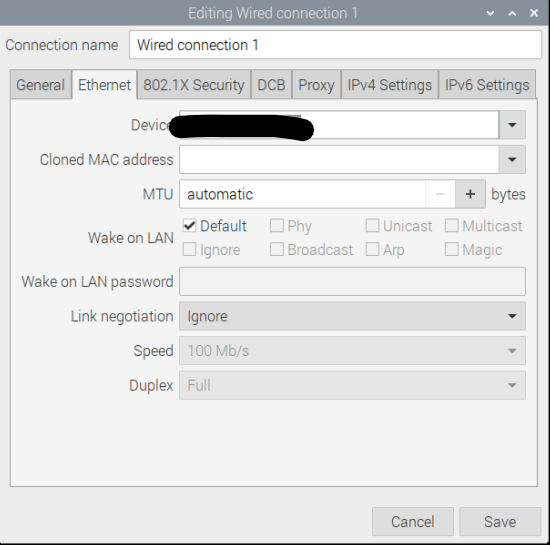

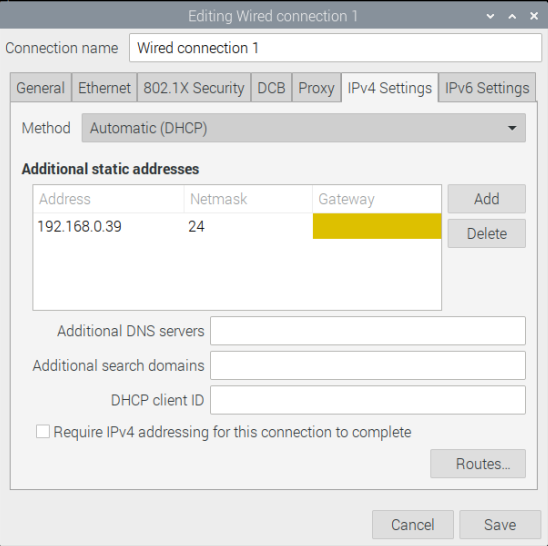

And here is the unshared lan

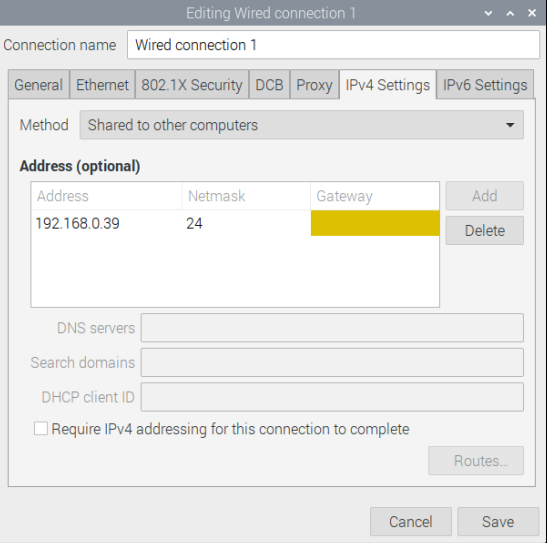

The only difference when I am sharing it is this:

deHakkelaar · July 24, 2020, 9:30am

Most likely its that "Shared to other computers" that trigger.

Do you mean if you unshare, pihole-FTL is able to start on boot and not conflicting with dnsmasq ?

Nickie_emp · July 24, 2020, 9:31am

Correct So the culprit is found in NM.

deHakkelaar · July 24, 2020, 9:33am

Yes.
And you dont need all that desktop + NM crap.
Most can be done from the Bash shell without those fancy tools complicating stuff

Nickie_emp · July 24, 2020, 9:33am

By the way, pihole-FTL takes a bit of time to start upon boot

i@raspberrypi:~ $ sudo netstat -nltup | grep 'Proto\|:53 \|:67 \|:80 \|:547 \|:471[1-8] '
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
pi@raspberrypi:~ $ sudo netstat -nltup | grep 'Proto\|:53 \|:67 \|:80 \|:547 \|:471[1-8] '
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
pi@raspberrypi:~ $ sudo netstat -nltup | grep 'Proto\|:53 \|:67 \|:80 \|:547 \|:471[1-8] '
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      1180/lighttpd
tcp6       0      0 :::80                   :::*                    LISTEN      1180/lighttpd
pi@raspberrypi:~ $ sudo netstat -nltup | grep 'Proto\|:53 \|:67 \|:80 \|:547 \|:471[1-8] '
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 127.0.0.1:4711          0.0.0.0:*               LISTEN      1209/pihole-FTL
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      1180/lighttpd
tcp        0      0 0.0.0.0:53              0.0.0.0:*               LISTEN      1209/pihole-FTL
tcp6       0      0 ::1:4711                :::*                    LISTEN      1209/pihole-FTL
tcp6       0      0 :::80                   :::*                    LISTEN      1180/lighttpd
tcp6       0      0 :::53                   :::*                    LISTEN      1209/pihole-FTL
udp        0      0 0.0.0.0:53              0.0.0.0:*                           1209/pihole-FTL
udp6       0      0 :::53                   :::*                                1209/pihole-FTL
pi@raspberrypi:~ $

deHakkelaar · July 24, 2020, 9:35am

pi@ph5:~ $ sudo systemctl stop pihole-FTL && time sudo systemctl start pihole-FTL

real    0m0.889s
user    0m0.044s
sys     0m0.058s

EDIT:
Can check logs:

less /var/log/pihole-FTL.log

Nickie_emp · July 24, 2020, 9:37am

I hate iptables
I am connecting using EAP 802.11x on wifi with username and password and I tried with the basic tool of raspbian and it could not connect. I tried using bash, the same... it is the same.
Pihole cannot work with NM then in that specific case
At least now we know

And yes, I can start/reboot without sharing the connection and then do so after booting up the device, but it is not working out of the box.

Nickie_emp · July 24, 2020, 9:40am

[2020-07-24 11:32:54.193 1197M] ########## FTL started! ##########
[2020-07-24 11:32:54.193 1197M] FTL branch: master
[2020-07-24 11:32:54.193 1197M] FTL version: v5.1
[2020-07-24 11:32:54.193 1197M] FTL commit: b522646
[2020-07-24 11:32:54.193 1197M] FTL date: 2020-07-15 22:26:33 +0100
[2020-07-24 11:32:54.193 1197M] FTL user: pihole
[2020-07-24 11:32:54.193 1197M] Compiled for armhf (compiled on CI) using arm-linux-gnueabihf-gcc (Debian 6.3.0-18) 6.3.0
 20170516
[2020-07-24 11:32:54.193 1197M] Starting config file parsing (/etc/pihole/pihole-FTL.conf)
[2020-07-24 11:32:54.193 1197M]    SOCKET_LISTENING: only local
[2020-07-24 11:32:54.193 1197M]    AAAA_QUERY_ANALYSIS: Show AAAA queries
[2020-07-24 11:32:54.193 1197M]    MAXDBDAYS: max age for stored queries is 365 days
[2020-07-24 11:32:54.193 1197M]    RESOLVE_IPV6: Resolve IPv6 addresses
[2020-07-24 11:32:54.193 1197M]    RESOLVE_IPV4: Resolve IPv4 addresses
[2020-07-24 11:32:54.193 1197M]    DBINTERVAL: saving to DB file every minute
[2020-07-24 11:32:54.193 1197M]    DBFILE: Using /etc/pihole/pihole-FTL.db
[2020-07-24 11:32:54.193 1197M]    MAXLOGAGE: Importing up to 24.0 hours of log data
[2020-07-24 11:32:54.193 1197M]    PRIVACYLEVEL: Set to 0
[2020-07-24 11:32:54.193 1197M]    IGNORE_LOCALHOST: Show queries from localhost
[2020-07-24 11:32:54.194 1197M]    BLOCKINGMODE: Null IPs for blocked domains
[2020-07-24 11:32:54.194 1197M]    ANALYZE_ONLY_A_AND_AAAA: Disabled. Analyzing all queries
[2020-07-24 11:32:54.194 1197M]    DBIMPORT: Importing history from database
[2020-07-24 11:32:54.194 1197M]    PIDFILE: Using /run/pihole-FTL.pid
[2020-07-24 11:32:54.194 1197M]    SOCKETFILE: Using /run/pihole/FTL.sock
[2020-07-24 11:32:54.194 1197M]    SETUPVARSFILE: Using /etc/pihole/setupVars.conf
[2020-07-24 11:32:54.194 1197M]    MACVENDORDB: Using /etc/pihole/macvendor.db
[2020-07-24 11:32:54.194 1197M]    GRAVITYDB: Using /etc/pihole/gravity.db
[2020-07-24 11:32:54.194 1197M]    PARSE_ARP_CACHE: Active
[2020-07-24 11:32:54.194 1197M]    CNAME_DEEP_INSPECT: Active
[2020-07-24 11:32:54.194 1197M]    DELAY_STARTUP: No delay requested.
[2020-07-24 11:32:54.194 1197M]    NICE: Set process niceness to -10 (default)
[2020-07-24 11:32:54.194 1197M]    BLOCK_ESNI: Enabled, blocking _esni.{blocked domain}
[2020-07-24 11:32:54.194 1197M]    NAMES_FROM_NETDB: Enabled, trying to get names from network database
[2020-07-24 11:32:54.194 1197M] Finished config file parsing
[2020-07-24 11:32:54.213 1197M] Database version is 6
[2020-07-24 11:32:54.213 1197M] Database successfully initialized
[2020-07-24 11:32:54.235 1197M] New upstream server: 1.1.1.2 (0/1024)
[2020-07-24 11:32:54.236 1197M] New upstream server: 1.0.0.2 (1/1024)
[2020-07-24 11:32:54.280 1197M] Resizing "/FTL-strings" from 4096 to 8192
[2020-07-24 11:32:54.310 1197M] Resizing "/FTL-strings" from 8192 to 12288
[2020-07-24 11:32:54.312 1197M] Resizing "/FTL-queries" from 229376 to 458752
[2020-07-24 11:32:54.329 1197M] Resizing "/FTL-strings" from 12288 to 16384
[2020-07-24 11:32:54.359 1197M] Resizing "/FTL-strings" from 16384 to 20480
[2020-07-24 11:32:54.383 1197M] Resizing "/FTL-queries" from 458752 to 688128
[2020-07-24 11:32:54.434 1197M] Resizing "/FTL-strings" from 20480 to 24576
[2020-07-24 11:32:54.437 1197M] Resizing "/FTL-queries" from 688128 to 917504
[2020-07-24 11:32:54.475 1197M] Resizing "/FTL-queries" from 917504 to 1146880
[2020-07-24 11:32:54.494 1197M] Resizing "/FTL-strings" from 24576 to 28672
[2020-07-24 11:32:54.547 1197M] Resizing "/FTL-queries" from 1146880 to 1376256
[2020-07-24 11:32:54.572 1197M] Imported 21732 queries from the long-term database
[2020-07-24 11:32:54.573 1197M]  -> Total DNS queries: 21732
[2020-07-24 11:32:54.573 1197M]  -> Cached DNS queries: 6085
[2020-07-24 11:32:54.573 1197M]  -> Forwarded DNS queries: 11645
[2020-07-24 11:32:54.573 1197M]  -> Blocked DNS queries: 3906
:
