Many requests to "lb._dns-sd._udp.0.1.168.192.in-addr.arpa"

jaykepeters · March 11, 2019, 1:00am

Please follow the below template, it will help us to help you!

Expected Behaviour:

I should not be seeing requests to lb._dns-sd._udp.0.1.168.192.in-addr.arpa

Actual Behaviour:

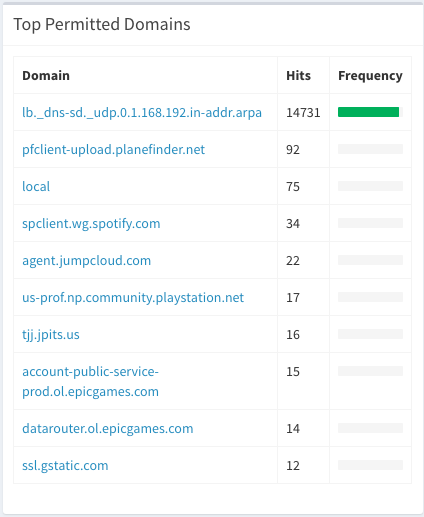

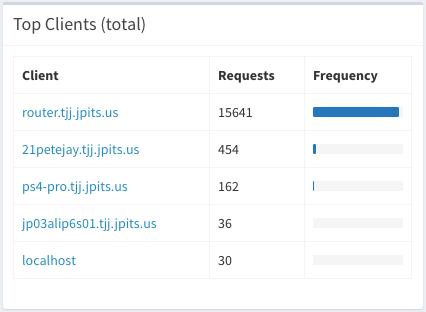

I'm seeing lots of requests to lb._dns-sd._udp.0.1.168.192.in-addr.arpa

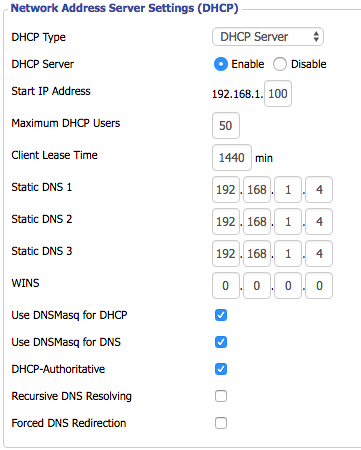

This is running on a DD-WRT Router. My setup is as follows:

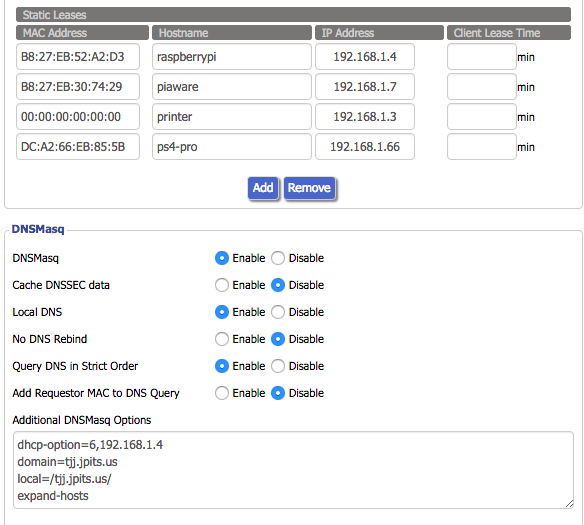

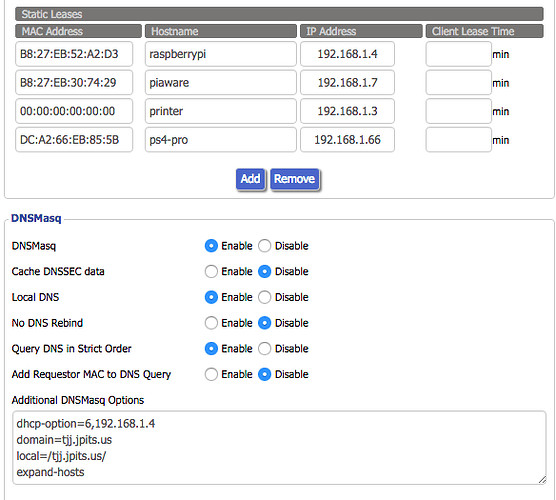

I have DHCP Option 6 set so that I can see which clients are querying what...

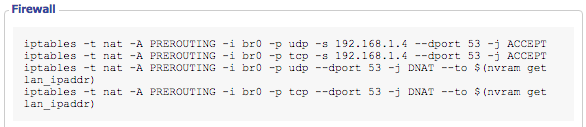

I'm pretty sure this has to do with my iptables forced dns redirection. As you can probably see:
Router IP: 192.168.1.1
Subnet: 255.255.255.0
Pi-hole IP: 192.168.1.4

Other Networks
192.168.10.0/24 (No Pi-hole as DNS)

What can I do in the GUI or iptables to stop these requests? I assume they should be going to the router, not from the router to Pi-hole.

Any Help Would be Appreciated!

jfb · March 11, 2019, 1:10am

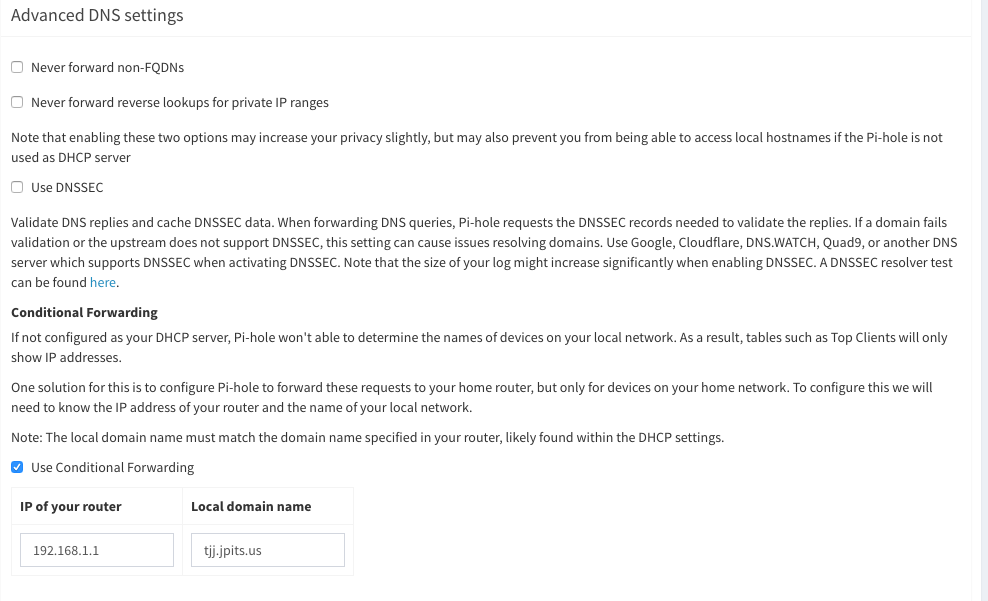

If you have conditional forwarding enabled in Pi-Hole, then de-select this option and see if that reduces the frequency of requests.

The requests are for DNS Discovery Service, commonly associated with the Bonjour network protocol.

jaykepeters · March 11, 2019, 1:21am

Thanks, I'll try that!

jfb · March 11, 2019, 1:30am

Note that this is normal network traffic. Example from a Pi-Hole running on my network (127 is a Mac Mini, 130 is a MacBook Air, 140 is a Win7 PC, 126 is an iPhone 6S, 125 is an iPad Pro).

sudo grep lb._dns-sd._udp.0 /var/log/pihole.log | grep query | tail -n20
Mar 10 13:49:13 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.127
Mar 10 13:49:16 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.130
Mar 10 14:40:03 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.140
Mar 10 14:49:13 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.127
Mar 10 15:40:03 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.140
Mar 10 15:49:13 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.127
Mar 10 15:50:06 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.130
Mar 10 16:23:58 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.126
Mar 10 16:39:57 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.140
Mar 10 16:49:13 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.127
Mar 10 17:21:29 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.125
Mar 10 17:39:46 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.140
Mar 10 17:49:13 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.127
Mar 10 17:50:56 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.130
Mar 10 18:38:54 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.140
Mar 10 18:49:13 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.127
Mar 10 19:38:54 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.140
Mar 10 19:49:13 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.127
Mar 10 19:51:46 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.130
Mar 10 20:28:38 dnsmasq[500]: query[PTR] lb._dns-sd._udp.0.0.168.192.in-addr.arpa from 192.168.0.127

jaykepeters · March 11, 2019, 1:34am

I would assume, but why is it flooding Pi-hole?

jfb · March 11, 2019, 1:36am

It's flooding Pi-Hole because you likely have a loop between Pi-Hole and your router. This is commonly caused by having conditional forwarding enabled.

jaykepeters · March 11, 2019, 1:51am

Is there a way in iptables to fix this?

jfb · March 11, 2019, 1:52am

I don't know. I don't use iptables to re-direct traffic.

jaykepeters · March 11, 2019, 2:08am

Is there an alternate method to do this?

jfb · March 11, 2019, 2:15am

Do you have conditional forwarding enabled?

jaykepeters · March 11, 2019, 2:58am

Not anymore. I disabled it and reanabled it, flushed the logs and not seeing it again...

jaykepeters · March 12, 2019, 4:08am

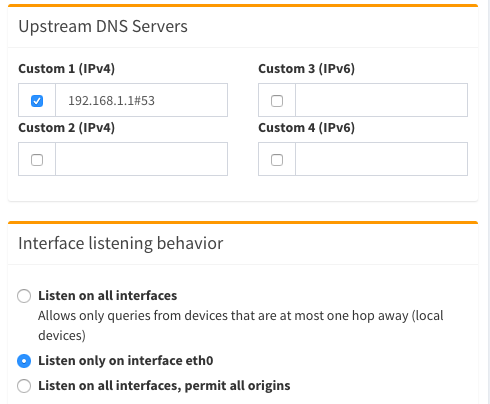

First, I specified my Upstream servers in the router, kept the IPTables rules and then I did this:

No more requests!

I am happy now
