Lot of empty entries in Tools > Network

[grosJambon33000]

Expected Behaviour:

Hello,

i'm having a lot of empty entries in the network table with no ip/hostname. Right now i'm having somtehing like 20 pages of emtpy ip/hostname entries. I also have my network devices that use pihole in the table.
Some of the empty lines have no queries, and some have some queries recorded.

• Debian 12.1

• Home server (HP 800 G2 SFF)

• services:
    pihole:
      container_name: Pihole
      image: pihole/pihole:latest
      network_mode: host
      environment:
        - TZ=Europe/Paris
        - DNSMASQ_LISTENING=all
        - PUID=1000
        - PGID=1000
      volumes:
        - /opt/pihole/config/etc-pihole:/etc/pihole
        - /opt/pihole/config/etc-dnsmasq.d:/etc/dnsmasq.d
      cap_add:
        - NET_ADMIN
        - SYS_TIME
      restart: always


• Docker version 28.2.2, build e6534b4

Debug Token:

DEBUG TOKEN

Thanks for your help

[DanSchaper]

You have some config files in /etc/dnsmasq.d but they will not be read or used because the flag is set to false etc_dnsmasq_d = false. Also /etc/dnsmasq.d/custom.conf has a line for dhcp-name-filter which doesn't seem to exist as a flag that dnsmasq understands.

The DHCP flags here don't really need to be changed unless there is a specific reason:

[dhcp]
     rapidCommit = true ### CHANGED, default = false
     multiDNS = true ### CHANGED, default = false

There are a number of warnings about DHCP clients requesting leases on interfaces not handles by Pi-hole, this is probably from the Docker environment and running in host networking mode:

*** [ DIAGNOSING ]: Pi-hole diagnosis messages
   count   last timestamp       type                  message                                                       blob1                 blob2                 blob3                 blob4                 blob5
   ------  -------------------  --------------------  ------------------------------------------------------------  --------------------  --------------------  --------------------  --------------------  --------------------
   1       2025-06-18 14:36:16  DNSMASQ_WARN          no address range available for DHCP request via br-1595b3584
                                                      804

   1       2025-06-18 14:36:16  DNSMASQ_WARN          no address range available for DHCP request via br-2290e45c4
                                                      4f1

   1       2025-06-18 14:36:16  DNSMASQ_WARN          no address range available for DHCP request via br-3da41689a
                                                      343

   1       2025-06-18 14:36:16  DNSMASQ_WARN          no address range available for DHCP request via br-4c84befbe
                                                      05f

   1       2025-06-18 14:36:16  DNSMASQ_WARN          no address range available for DHCP request via br-53bf9eb97
                                                      404

   1       2025-06-18 14:36:16  DNSMASQ_WARN          no address range available for DHCP request via br-5e1065e75
                                                      635

   1       2025-06-18 14:36:16  DNSMASQ_WARN          no address range available for DHCP request via br-6158334d0
                                                      9be

   1       2025-06-18 14:36:16  DNSMASQ_WARN          no address range available for DHCP request via br-80f432df2
                                                      877

   1       2025-06-18 14:36:16  DNSMASQ_WARN          no address range available for DHCP request via br-8a5d17a70
                                                      385

   1       2025-06-18 14:36:16  DNSMASQ_WARN          no address range available for DHCP request via br-915765eb4
                                                      63e

   1       2025-06-18 14:36:16  DNSMASQ_WARN          no address range available for DHCP request via docker0

Are you seeing the MAC addresses of the clients?

[grosJambon33000]

Thanks for your answer.

Yes i can see Hardware addresses of all the clients with empty ip and their interface too. Almost all of them starts with br- so it seems related to other docker container ?

[DanSchaper]

Most likely. The br- are docker bridge networks that look like the automatic bridges created by Docker Compose.

If you enable the etc_dnsmasq_d feature then the except-interface lines should clean that up:

-rw-r--r-- 1 root root 47 May 23 22:21 /etc/dnsmasq.d/99-ignore-docker.conf
   except-interface=docker0
   except-interface=br-*

Check the custom.conf file though, it's not valid, there isn't a dhcp-name-filter option in dnsmasq.

-rwxr-xr-x 1 pihole pihole 37 Apr 14 15:09 /etc/dnsmasq.d/custom.conf
   dhcp-name-filter=<REDACTED>.fr

[grosJambon33000]

@DanSchaper

If you enable the etc_dnsmasq_d feature then the except-interface lines should clean that up

The file is already mounted in the volumes :

- /opt/pihole/config/etc-dnsmasq.d:/etc/dnsmasq.d

What do you mean by enable it ?

I've removed the custom.conf as i don't need it actually.

thanks

[rdwebdesign]

@grosJambon33000

The file is already mounted in the volumes :

- /opt/pihole/config/etc-dnsmasq.d:/etc/dnsmasq.d

What do you mean by enable it ?

Pi-hole v6 doesn't use external files by default.

You need to enable them by setting this option as true:

   [misc]
     etc_dnsmasq_d = false

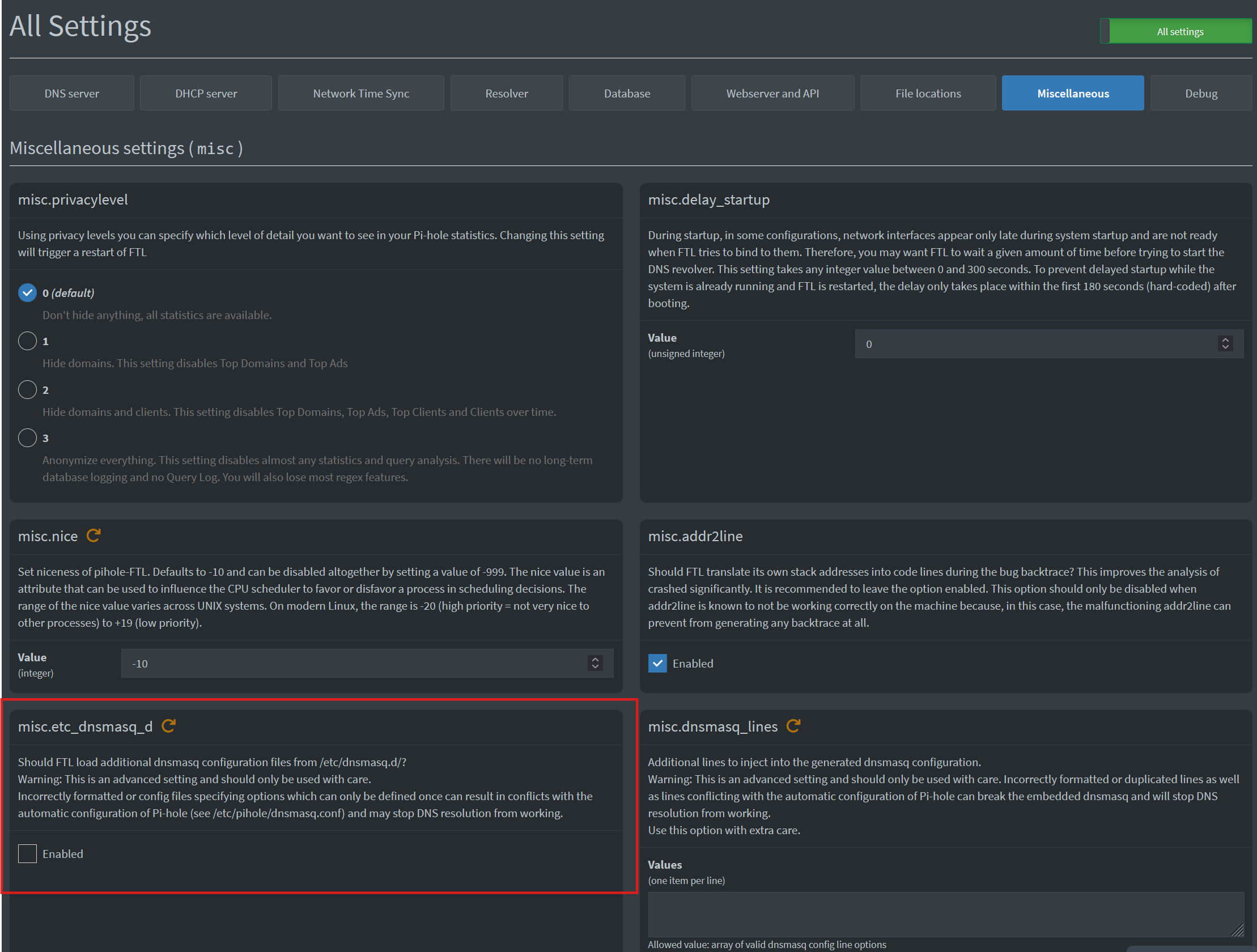

You can do it on the web interface, Settings > All Settings page, Miscellaneous tab:

[DanSchaper]

Those files in /etc/dnsmasq.d will not be read by pihole-FTL until you tell pihole-FTL to use them. That's the etc_dnsmasq_d = false line that I am referring to. Either set it to true via Environment Variables in your docker compose

environment:
   - FTLCONF_misc_etc_dnsmasq_d=true

Or enable it via the web interface:

You could also set the lines in the misc.dnsmasq_lines configuration, one line at a time

except-interface=docker0
except-interface=br-*
filter-aaaa

Either way works.

[grosJambon33000]

@DanSchaper

Those files in /etc/dnsmasq.d will not be read by pihole-FTL until you tell pihole-FTL to use them. That's the etc_dnsmasq_d = false line that I am referring to. Either set it to true via Environment Variables in your docker compose

environment:
   - FTLCONF_misc_etc_dnsmasq_d=true

I've add the variable to my compose file. But then after restarting the container, i can't reach any website or any URL. i think it filter also the traefik container and then i can't use any of my services.

EDIT : FYI, all my containers have static subnet, IP, and all of them have their own bridge network with a specific name. If this can help.

[DanSchaper]

@grosJambon33000

i can't reach any website or any URL

Explain more about that. What errors are you seeing, how is it failing.

@grosJambon33000

i think it filter also the traefik container

Set the DNS server for that stack to not use Pi-hole, no real need to filter that container is there?

The except-interface lines means that anything on those interfaces will be ignored, DHPC requests, DNS requests, anything.

@grosJambon33000

all my containers have static subnet, IP, and all of them have their own bridge network

Then you will need to see why those containers are sending DHCP requests to the host/Pi-hole. The warnings I quoted earlier show no address range available for DHCP request so those containers are still requesting DHCP leases.

[grosJambon33000]

@DanSchaper

Explain more about that. What errors are you seeing, how is it failing.

I got that message on Firefox on every website :

Hmm. We’re having trouble finding that site.

We can’t connect to the server at github.com.

If the address was correct, you can:

Try again later

Check your network connection

Make sure that Firefox is permitted to access the Web (your connection might be working but protected by a firewall)

So i guess, pihole is filtered and i don't have any DNS if i enable FTLCONF_misc_etc_dnsmasq_d

@DanSchaper

Set the DNS server for that stack to not use Pi-hole, no real need to filter that container is there?

Actually in etc/docker/daemon.json i've set the dns "dns": ["192.168.1.2"] which is my host lan IP.
So i guess that all of my containers are going through pi-hole. Is it recommended or not to do like that ? Should i set the DNS in each docker compose instead and avoid setting a DNS for pihole container ?

@DanSchaper

Then you will need to see why those containers are sending DHCP requests to the host/Pi-hole. The warnings I quoted earlier show no address range available for DHCP request so those containers are still requesting DHCP leases.

I have no idea why. If the IPs are static (set in docker compose), the containers should not send DHCP request right ?

And as of today, i don't see those warning anymore.

[DanSchaper]

@grosJambon33000

Hmm. We’re having trouble finding that site.

Okay, but that doesn't tell us if it's a problem with DNS or a problem with the network. Sometimes there will be a bit about why it's failing like DNS record not found. You could try running dig github.com when FF gives that error to see if DNS is working.

@grosJambon33000

So i guess, pihole is filtered and i don't have any DNS if i enable FTLCONF_misc_etc_dnsmasq_d

If you still have the lines for except-interface in the /etc/dnsmasq.d/<conffiles> then enabling that flag will tell Pi-hole to not listen for anything on those interfaces, DNS and DHCP included.

@grosJambon33000

So i guess that all of my containers are going through pi-hole. Is it recommended or not to do like that ? Should i set the DNS in each docker compose instead and avoid setting a DNS for pihole container ?

That's a choice that only you can make but there is rarely a reason for services to need to have filtered DNS.

@grosJambon33000

And as of today, i don't see those warning anymore.

You do not see the warnings while the FTLCONF_misc_etc_dnsmasq_d is set to true? Do you see the empty entries that started this trouble ticket?

[grosJambon33000]

@DanSchaper

Okay, but that doesn't tell us if it's a problem with DNS or a problem with the network. Sometimes there will be a bit about why it's failing like DNS record not found. You could try running dig github.com when FF gives that error to see if DNS is working.

here is the output of the dig command while FTLCONF_misc_etc_dnsmasq_d is set to true in the docker compose :

xxx@Home-server:/opt$ dig github.com
;; communications error to 127.0.0.1#53: connection refused
;; communications error to 127.0.0.1#53: connection refused
;; communications error to 127.0.0.1#53: connection refused

; <<>> DiG 9.18.33-1~deb12u2-Debian <<>> github.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 59041
;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 512
;; QUESTION SECTION:
;github.com.                    IN      A

;; ANSWER SECTION:
github.com.             7       IN      A       140.82.121.3

;; Query time: 11 msec
;; SERVER: 9.9.9.9#53(9.9.9.9) (UDP)
;; WHEN: Fri Jun 20 09:38:40 CEST 2025
;; MSG SIZE  rcvd: 55

@DanSchaper

If you still have the lines for except-interface in the /etc/dnsmasq.d/<conffiles> then enabling that flag will tell Pi-hole to not listen for anything on those interfaces, DNS and DHCP included.

I didn't change or remove anything in the file, should i ?

@DanSchaper

That's a choice that only you can make but there is rarely a reason for services to need to have filtered DNS.

But if my container are not going through pihole DNS, what DNS will they use ?

@DanSchaper

You do not see the warnings while the FTLCONF_misc_etc_dnsmasq_d is set to true?

No i don't see the previous warning while the variable is set to true. But right now i've tried to set again that variable to true and i had another warning :

Error in NTP client:

Cannot resolve NTP server address: Try again

@DanSchaper

Do you see the empty entries that started this trouble ticket?

The thing is i can't let this variable to true because after that, i don't have access to any website so i can't wait a long period to see if the empty entries disapear or not.
I think first i need to understand why that variable (when set to true) is breaking things down.

Thanks for your time !

[grosJambon33000]

Hello guys,

Mi issue is still open

As of today, i have exactly 100 pages of empty entries in tools > network.

Thanks in advance.

[DanSchaper]

@grosJambon33000

here is the output of the dig command while FTLCONF_misc_etc_dnsmasq_d is set to true

That output shows that github.com was successfully resolved to a correct IP address via the external resolver at 9.9.9.9. There's a number of failed attempts to use 127.0.0.1 so I'd change the /etc/resolv.conf to use that external resolver instead of trying to use Pi-hole itself.

@grosJambon33000

I didn't change or remove anything in the file, should i ?

I don't know, that's up to you to decide based on your network configuration.

@grosJambon33000

But if my container are not going through pihole DNS, what DNS will they use ?

Any other one that works, your host seems to use 9.9.9.9 so that is an option. Or what ever DNS server you have set as the upstream for Pi-hole.

@grosJambon33000

As of today, i have exactly 100 pages of empty entries in tools > network.

Then you need to decide if you want to have your containers utilize Pi-hole for DNS/DHCP and have a long list of the containers show on the network display or if you want to change your containers to use an external DNS and not attempt to secure an IP address via DHCP and thus not involve Pi-hole at all.

[grosJambon33000]

@DanSchaper

That output shows that github.com was successfully resolved to a correct IP address via the external resolver at 9.9.9.9. There's a number of failed attempts to use 127.0.0.1 so I'd change the /etc/resolv.conf to use that external resolver instead of trying to use Pi-hole itself.

Actually in my resolv.conf i have that :

nameserver 127.0.0.1
nameserver 9.9.9.9

But if i remove, that 127.0.0.1 line, it means that all queries initiate from my server, will go through the 9.9.9.9 DNS ?
But what about all my clients in my network ? Will they use the pihole DNS or that 9.9.9.9.

@DanSchaper

I don't know, that's up to you to decide based on your network configuration.

I have no clue at all if i need to modify those file regarding my network configuration.

@DanSchaper

Any other one that works, your host seems to use 9.9.9.9 so that is an option. Or what ever DNS server you have set as the upstream for Pi-hole.

As i mentioned above, i've add 9.9.9.9 in my resolv.conf, just in case.

@DanSchaper

Then you need to decide if you want to have your containers utilize Pi-hole for DNS/DHCP and have a long list of the containers show on the network display or if you want to change your containers to use an external DNS and not attempt to secure an IP address via DHCP and thus not involve Pi-hole at all.

My containers are not in network : host mode so they won't use pihole DHCP, their ip is managed by docker engine i guess.
The only container i have in network host is Pihole (because of DHCP).
I don't know what is the good practice regarding the DNS that containers should use.

Thanks for your time

[DanSchaper]

@grosJambon33000

But if i remove, that 127.0.0.1 line, it means that all queries initiate from my server, will go through the 9.9.9.9 DNS ?

Yes, why do you need to filter DNS from your server?

I have no clue at all if i need to modify those file regarding my network configuration.

And, honestly, I don't either. Not trying to be dismissive but I don't know your network and docker stack configuration nor do I have the time or ability to design your network even if I knew what you were running.

As i mentioned above, i've add 9.9.9.9 in my resolv.conf, just in case.

Which means that some of the time the server will try 127.0.0.1 and some of the time it will try 9.9.9.9. There is no order or weighting for /etc/resolv.conf so there is no primary/secondary or backup DNS server.

The only container i have in network host is Pihole (because of DHCP).

Yes, but your docker network connects the individual docker bridge networks on to that host network. So the Pi-hole container sees all the traffic from all of the containers.

I don't know what is the good practice regarding the DNS that containers should use.

That question is answered by considering if you can find any reason for the containers to need to have their DNS filtered or blocked by Pi-hole. That is very rarely the case.

[grosJambon33000]

@DanSchaper

Yes, why do you need to filter DNS from your server?

because i wanted to know what queries my containers are sending and monitor them like i monitor the devices on my network. But maybe i'm wrong in this vision.

@DanSchaper

And, honestly, I don't either. Not trying to be dismissive but I don't know your network and docker stack configuration nor do I have the time or ability to design your network even if I knew what you were running.

From what i understand, i think that i have a completely classic network configuration with ISP router (DHCP disabled), my home server with pihole (DHCP enabled and DNS too) and some containers in bridge mode.

@DanSchaper

Which means that some of the time the server will try 127.0.0.1 and some of the time it will try 9.9.9.9. There is no order or weighting for /etc/resolv.conf so there is no primary/secondary or backup DNS server.

Ok so i can remove, that 127.0.0.1 line from the resov file ? And all my containers and queries from my server will go through 9.9.9.9. And that should solve the issue ?

Thanks for your answer

[grosJambon33000]

So now my etc/resolv.conf looks like :

xxx@Home-server:/$ cat etc/resolv.conf
nameserver 9.9.9.9

my etc/docker/daemon.json looks like :

xxx@Home-server:/$ cat etc/docker/daemon.json
{
  "ipv6": false,
  "dns": ["9.9.9.9", "149.112.112.112"]
}

But the empty IPs entries keep coming back in the tools > network table. I've flushed the table and the stats and reboot the server. And in like 5 minutes of running, i already have like 5 pages of empty entries.

Maybe it is a normal behaviour ? And i shouldn't care about that. But for me it doesn't make the table usable as i need to navigate through tens of pages to find a specific device.
