Local DNS Records only working on some devices

[Garywoo]

I have just installed Pi-hole v5.2.4, and set up my network to route DNS requests through it via DHCP on my router. It's working fine as far as I can tell. What is not working well though, is the Local DNS Records function.

My network looks like this:

• 192.168.1.1 is my router, which is my DHCP server. It's a unifi UDM-Pro.
• 192.168.3.14 is my pi, running Pi-hole

I have added the Local DNS record in Pi-hole for unifi to point to 192.168.1.1.

I flushed the DNS on my PC, but when accessing https://unifi/ I get the error " This site can’t be reached" DNS_PROBE_FINISHED_NXDOMAIN

I also noticed that http://pi.hole was sometimes not working on the same PC. It is working as I write this though.

On other PC's and devices like phones on my network, https://unifi and http://pi.hole work fine.

Running nslookup pi.hole on the troublesome PC, gives me the following output:

Server:  pi
Address:  192.168.3.14

Name:    pi.hole
Addresses:  fd1b:612b:fcb3:1:2329:9382:e940:73b3
          192.168.3.14

Both the IPv4 & IPv6 addresses point to the Pi-hole.

What's going on here?

Debug log: https://tricorder.pi-hole.net/s0uoajf9e8

[Bucking_Horn]

What DNS servers is your troubled PC using?

Assuming that PC is running Windows, you should find those in the DNS-Server output of

ipconfig /all

EDIT: yubiuser is right, but check the servers nonetheless, to see if IPv6 would be involved also.

[yubiuser]

You advertise not only Pihole's IP as DNS server via DHCP but also other. As clients decide on their own which DNS to choose they might not be able to resolve internal DNS records via a public server.

      dns-server: 192.168.3.14
      dns-server: 1.1.1.1
      dns-server: 1.0.0.1

Why should Pi-hole be my only DNS server?

Reduced Ad Blocking Capability The main reason you should Pi-hole as your only DNS server is that you will see increased performance in the blocking of ads. If you have two DNS servers (Pi-hole and something else), your network clients may not always query Pi-hole for name resolution. If a query happens to be answered from a non-Pi-hole DNS server, your block lists will not apply (since that DNS server doesn't know about them). All Queries Need To Go Through Pi-hole First Since other DNS se…

[Garywoo]

@Bucking_Horn

ipconfig /all

Outputs:

DNS Servers . . . . . . . . . . . : 192.168.3.14
                                    1.1.1.1
                                    1.0.0.1

[Garywoo]

So I should remove the other DNS servers from the router DHCP config? I don't like the sound of that. My pi is used for a couple other applications and so gets rebooted every now and then.

If the pi is rebooting, or goes down, suddenly all the internet requests in my network stop resolving?

[yubiuser]

@Garywoo

If the pi is rebooting, or goes down, suddenly all the internet requests in my network stop resolving?

Yes. DNS is a critical part of your network, it might be useful if you notice that Pi-hole is down. You should consider to not use the device for a lot of other services that require a lot of reboots.

[yubiuser]

@Garywoo

So I should remove the other DNS servers from the router DHCP config?

That's the only way to ensure clients won't bypass Pi-hole.

[Garywoo]

Okay, for troubleshooting, I removed the other DNS servers from my routers DHCP settings, so that the Pi-hole is the only DNS server. I then ran:

ipconfig /release
ipconfig /renew
ipconfig /flushdns

Now the output of ipconfig /all is:

DNS Servers . . . . . . . . . . . : 192.168.3.14

as the only DNS server for the adapter.

Trying to visit https://unifi is still not working. I added a couple more test local DNS records to point to the pi and router:

These are not working either, i.e. http://foo

I've also tried clearing Chrome's host resolver cache at chrome://net-internals/#dns

Something is still not quite right...

[yubiuser]

Try with only unifi/.
What's the output of nslookup foo

[jfb]

@Garywoo

If the pi is rebooting, or goes down, suddenly all the internet requests in my network stop resolving?

Yes. It is your DNS server (and should be the only one). There would be no difference if you reboot your router or modem - you lose part of the internet path and lose internet during that time.

Providing other DNS servers in the DHCP process allows queries to bypass Pi-hole.

Why should Pi-hole be my only DNS server?

Reduced Ad Blocking Capability The main reason you should Pi-hole as your only DNS server is that you will see increased performance in the blocking of ads. If you have two DNS servers (Pi-hole and something else), your network clients may not always query Pi-hole for name resolution. If a query happens to be answered from a non-Pi-hole DNS server, your block lists will not apply (since that DNS server doesn't know about them). All Queries Need To Go Through Pi-hole First Since other DNS se…

You have a few options:

(1) Setup Pi-hole on an independent device that won't be rebooted. Keep it running 24/7.

(2) Add a second Pi-hole, running in parallel with the first. Advertise both those DNS servers in the DHCP process. If you reboot the first one with other things running on it, traffic will seamlessly shift to the running Pi-hole.

[Garywoo]

@yubiuser

Try with only unifi/ .

Try accessing that in a browser? Same DNS_PROBE_FINISHED_NXDOMAIN error.

@yubiuser

What's the output of nslookup foo

Server:  pi
Address:  192.168.3.14

*** pi can't find foo: Non-existent domain

[yubiuser]

Do those queries show up in the query log?

[Garywoo]

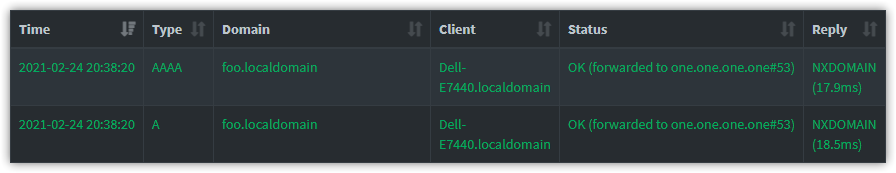

I'm seeing this in the query log when searching for foo:

[Bucking_Horn]

You need to add both a record for the plain hostname as well as the FQDN for your local domain (aka search suffix), e.g. foo and foo.localdomain.

Some software may choose to query both, so its best to safeguard for that.
It doesn't fully explain why your browsers won't resolve the plain names, though.

EDIT:
The solution also comprised removing secondary and tertiary DNS servers from your router in order to guarantee that Pi-hole is your only DNS server (as advised by yubiuser).

[Garywoo]

Aha! I added a record in Pi-Hole local DNS records for both, and it's now working! I can now access unifi/ and foo/ etc.

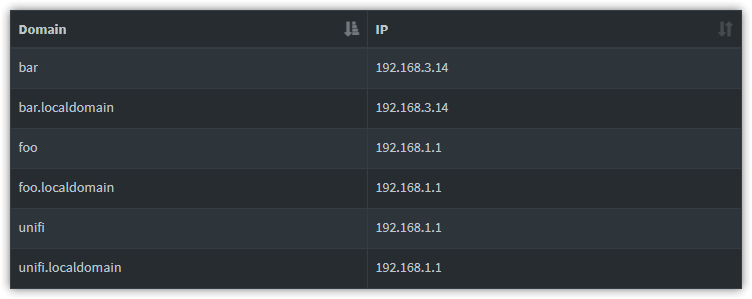

My records list now looks like this:

Thanks very much for the help all!
