Local DNS name not working

Iznobe_D · May 22, 2024, 7:19pm

Hi , i would like to use DNS name , but it is not working .

i ' ve install pihole on my raspberrypi3 with raspbian bullseye OS .
i added for a test in " LOCAL DNS " => DNS RECORDS an entry like this :
baby 192.168.1.135
and the entry was successfulyl added .
So , in my ubuntu system , in my terminal i enterred this command :

iznobe@iznobe-PC:~$ ping -c2 baby
ping: baby: Nom ou service inconnu
iznobe@iznobe-PC:~$ ping -c2 baby.lan
ping: baby.lan: Nom ou service inconnu
iznobe@iznobe-PC:~$

iznobe@RPI3:~ $ cat /etc/pihole/custom.list
192.168.1.135 baby
iznobe@RPI3:~ $ dig baby

; <<>> DiG 9.16.48-Raspbian <<>> baby
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NXDOMAIN, id: 2160
;; flags: qr rd ra ad; QUERY: 1, ANSWER: 0, AUTHORITY: 1, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
;; QUESTION SECTION:
;baby.				IN	A

;; AUTHORITY SECTION:
.			3300	IN	SOA	a.root-servers.net. nstld.verisign-grs.com. 2024052201 1800 900 604800 86400

;; Query time: 40 msec
;; SERVER: 80.67.169.12#53(80.67.169.12)
;; WHEN: Wed May 22 21:42:30 CEST 2024
;; MSG SIZE  rcvd: 109

iznobe@RPI3:~ $

not working !
have i done anything wrong ?

My pi is set up to use DNS Over HTTPS with FDN servers , but it not use them :

iznobe@RPI3:~ $ dig RPI3.pi.hole

; <<>> DiG 9.16.48-Raspbian <<>> RPI3.pi.hole
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NXDOMAIN, id: 27348
;; flags: qr rd ra ad; QUERY: 1, ANSWER: 0, AUTHORITY: 1, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
;; QUESTION SECTION:
;RPI3.pi.hole.			IN	A

;; AUTHORITY SECTION:
.			1695	IN	SOA	a.root-servers.net. nstld.verisign-grs.com. 2024052201 1800 900 604800 86400

;; Query time: 30 msec
;; SERVER: 80.67.169.12#53(80.67.169.12)
;; WHEN: Wed May 22 21:09:14 CEST 2024
;; MSG SIZE  rcvd: 116

iznobe@RPI3:~ $

iznobe@RPI3:~ $ sudo systemctl status cloudflared
● cloudflared.service - cloudflared DNS over HTTPS proxy
     Loaded: loaded (/etc/systemd/system/cloudflared.service; enabled; vendor preset: enabled)
     Active: active (running) since Tue 2024-05-21 07:17:13 CEST; 1 day 14h ago
   Main PID: 716 (cloudflared)
      Tasks: 11 (limit: 1595)
        CPU: 8min 24.135s
     CGroup: /system.slice/cloudflared.service
             └─716 /usr/local/bin/cloudflared proxy-dns --port 5053 --upstream https://ns0.fdn.fr/dns-query --upstream https://ns1.fdn.fr/dns-query

mai 22 19:41:40 RPI3 cloudflared[716]: 2024-05-22T17:41:40Z ERR failed to connect to an HTTPS backend "https://ns0.fdn.fr/dns-query" error="failed to perform an HTTPS request: Post \"https://ns0.fdn.fr/dns-query\": unexpected EOF"
mai 22 19:47:14 RPI3 cloudflared[716]: 2024-05-22T17:47:14Z ERR failed to connect to an HTTPS backend "https://ns0.fdn.fr/dns-query" error="failed to perform an HTTPS request: Post \"https://ns0.fdn.fr/dns-query\": unexpected EOF"
mai 22 19:47:43 RPI3 cloudflared[716]: 2024-05-22T17:47:43Z ERR failed to connect to an HTTPS backend "https://ns0.fdn.fr/dns-query" error="failed to perform an HTTPS request: Post \"https://ns0.fdn.fr/dns-query\": unexpected EOF"
mai 22 19:48:05 RPI3 cloudflared[716]: 2024-05-22T17:48:05Z ERR failed to connect to an HTTPS backend "https://ns0.fdn.fr/dns-query" error="failed to perform an HTTPS request: Post \"https://ns0.fdn.fr/dns-query\": unexpected EOF"
mai 22 19:48:05 RPI3 cloudflared[716]: 2024-05-22T17:48:05Z ERR failed to connect to an HTTPS backend "https://ns0.fdn.fr/dns-query" error="failed to perform an HTTPS request: Post \"https://ns0.fdn.fr/dns-query\": unexpected EOF"
mai 22 19:57:23 RPI3 cloudflared[716]: 2024-05-22T17:57:23Z ERR failed to connect to an HTTPS backend "https://ns0.fdn.fr/dns-query" error="failed to perform an HTTPS request: Post \"https://ns0.fdn.fr/dns-query\": unexpected EOF"
mai 22 19:57:23 RPI3 cloudflared[716]: 2024-05-22T17:57:23Z ERR failed to connect to an HTTPS backend "https://ns0.fdn.fr/dns-query" error="failed to perform an HTTPS request: Post \"https://ns0.fdn.fr/dns-query\": unexpected EOF"
mai 22 20:53:58 RPI3 cloudflared[716]: 2024-05-22T18:53:58Z ERR failed to connect to an HTTPS backend "https://ns0.fdn.fr/dns-query" error="failed to perform an HTTPS request: Post \"https://ns0.fdn.fr/dns-query\": unexpected EOF"
mai 22 20:56:15 RPI3 cloudflared[716]: 2024-05-22T18:56:15Z ERR failed to connect to an HTTPS backend "https://ns0.fdn.fr/dns-query" error="failed to perform an HTTPS request: Post \"https://ns0.fdn.fr/dns-query\": unexpected EOF"
mai 22 21:03:32 RPI3 cloudflared[716]: 2024-05-22T19:03:32Z ERR failed to connect to an HTTPS backend "https://ns0.fdn.fr/dns-query" error="failed to perform an HTTPS request: Post \"https://ns0.fdn.fr/dns-query\": unexpected EOF"
iznobe@RPI3:~ $
iznobe@RPI3:~ $ cat /etc/default/cloudflared
# Commandline args for cloudflared, using Cloudflare DNS
CLOUDFLARED_OPTS=--port 5053 --upstream https://ns0.fdn.fr/dns-query --upstream https://ns1.fdn.fr/dns-query

#CLOUDFLARED_OPTS=--port 5053 --upstream https://1.1.1.1/dns-query --upstream https://1.0.0.1/dns-query
iznobe@RPI3:~ $

Any help would be great appreciated .

CallMeCurious · May 22, 2024, 7:45pm

Whats the purpose of editing a 2yr old thread adding just a word to the title and a comment at end?

Iznobe_D · May 22, 2024, 7:54pm

Hi , i think you have'nt seen correctly the created date :

created

34m

[

last reply

](Local DNS name not working - #2 by CallMeCurious)

8m

1

reply

10

views

2

users

CallMeCurious · May 22, 2024, 7:57pm

lol - I read this timestamp and not this 2024-05-22T

Apologies mate.

Iznobe_D · May 22, 2024, 7:58pm

no problem

CallMeCurious · May 22, 2024, 8:11pm

It's looking out side the local network for resolution ( 80.67.169.12 ).

Do you get a different result if you dig@(your pihole ip) baby ie dig@192.168.1.3 baby

Iznobe_D · May 22, 2024, 8:18pm

this is FDN 's IP servers . i think this is due to the DOH set up .

if i dig my pi's ip :

iznobe@iznobe-PC:~$ dig 192.168.1.132

; <<>> DiG 9.18.18-0ubuntu0.22.04.2-Ubuntu <<>> 192.168.1.132
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NXDOMAIN, id: 11621
;; flags: qr rd ra ad; QUERY: 1, ANSWER: 0, AUTHORITY: 1, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 65494
;; QUESTION SECTION:
;192.168.1.132.			IN	A

;; AUTHORITY SECTION:
.			1289	IN	SOA	a.root-servers.net. nstld.verisign-grs.com. 2024052201 1800 900 604800 86400

;; Query time: 328 msec
;; SERVER: 127.0.0.53#53(127.0.0.53) (UDP)
;; WHEN: Wed May 22 22:16:04 CEST 2024
;; MSG SIZE  rcvd: 117

iznobe@iznobe-PC:~$

It's looking out side the local network for resolution ( 80.67.169.12 ).

yes , but it should looks before in cache DNS or as it is write in the dedicated page :

Note:

The order of locally defined DNS records is:

The device's host name and pi.hole

Configured in a config file in /etc/dnsmasq.d/

Read from /etc/hosts

Read from the "Local (custom) DNS" list (stored in /etc/pihole/custom.list)

Only the first record will trigger an address-to-name association.

before searching outside on the external DNS no ?

rdwebdesign · May 22, 2024, 8:29pm

@CallMeCurious

I think your intention was to ask to run:
dig @192.168.1.3 baby

Details

When you need to add an at symbol (@) inside a command, you need to surround it with backtiks (`), like this:

command `dig @PI-hole_IP domain`

(or just select the command and press CTRL+E)

CallMeCurious · May 22, 2024, 8:30pm

Yes. I was just editiing that.

@Iznobe_D please try dig @192.168.1.132 baby and lets see what you get.

Iznobe_D · May 23, 2024, 10:21am

hi, seems to work with :

iznobe@iznobe-PC:~$ dig @192.168.1.132 baby

; <<>> DiG 9.18.18-0ubuntu0.22.04.2-Ubuntu <<>> @192.168.1.132 baby
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 49901
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
;; QUESTION SECTION:
;baby.				IN	A

;; ANSWER SECTION:
baby.			0	IN	A	192.168.1.135

;; Query time: 0 msec
;; SERVER: 192.168.1.132#53(192.168.1.132) (UDP)
;; WHEN: Thu May 23 12:19:50 CEST 2024
;; MSG SIZE  rcvd: 50

iznobe@iznobe-PC:~$

CallMeCurious · May 23, 2024, 11:05am

So the pihole custom list is working ok.

I'm not familiar with the cloudflared setup but reading through the guide cloudflared (DoH) - Pi-hole documentation it shows a test for it. From the pihole itself the command below and post results please.

dig @127.0.0.1 -p 5053 google.com

Iznobe_D · May 23, 2024, 11:17am

voici :

iznobe@RPI3:~ $ dig @127.0.0.1 -p 5053 google.com

; <<>> DiG 9.16.48-Raspbian <<>> @127.0.0.1 -p 5053 google.com
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 62780
;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
; COOKIE: 97a657d4b165058b (echoed)
;; QUESTION SECTION:
;google.com.			IN	A

;; ANSWER SECTION:
google.com.		299	IN	A	172.217.20.206

;; Query time: 269 msec
;; SERVER: 127.0.0.1#5053(127.0.0.1)
;; WHEN: Thu May 23 13:16:57 CEST 2024
;; MSG SIZE  rcvd: 77

iznobe@RPI3:~ $

CallMeCurious · May 23, 2024, 11:27am

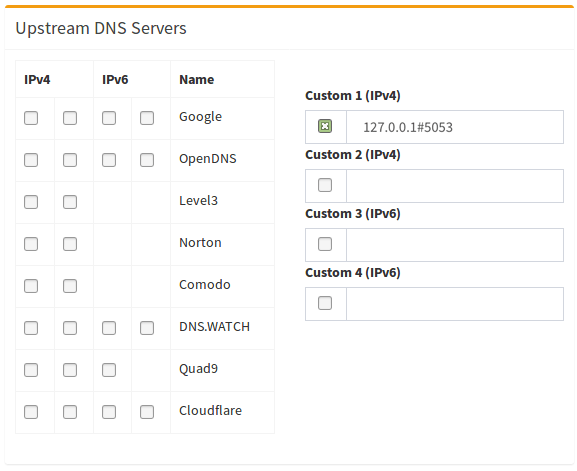

That looks correct so the cloudflared service looks to be working. Looking at the pihole webgui, is the upstream server set to custom ipv4 / 127.0.0.1#5053?

Iznobe_D · May 23, 2024, 11:46am

yes ,this is good .

seen in the previous commande :

SERVER: 127.0.0.1#5053(127.0.0.1)

ok , so just re-tested to acces to my server " baby " and now working as excpeted .
Don't know what happened , just done a reboot yesterday night , and now all seems to be fine .

Thanks

CallMeCurious · May 23, 2024, 11:55am

I suspect that one client was connected to a vpn or something like that. It would explain the out of network server that was returned. Either way, glad its working for you.
