IoT not working with Pi-Hole

Help Community Help
1

Expected Behaviour:

  • Operating System : RPI Light (From RPI Imager)
  • Hardware : RPI 2W
  • Pi-Hole : Core v6.3 / FTL v6.4.1/ Web interface v6.4

Actual Behaviour:

I’m unable to connect my air filter to the manufacturer App. if I use Pi-Hole as DNS.

If I revert back to 1.1.1.1 or any other DNS it connect immediately.

I’ve tried to disable blocking : Not working

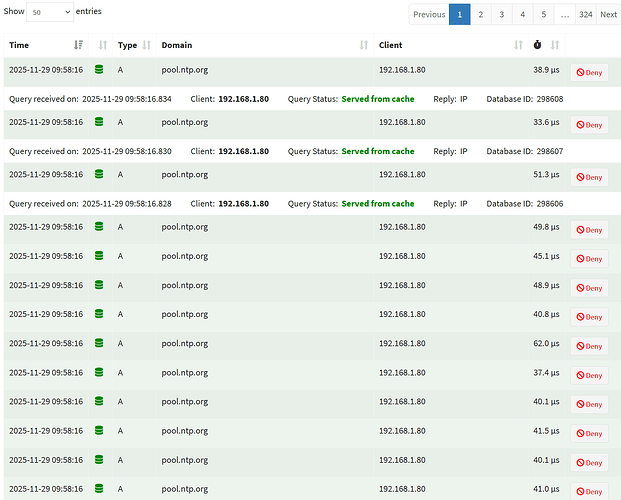

Checked the requests the filter make, nothing is blocked, but… millions of connections to pool.ntp.org :

image1721×1385 290 KB

One each 4ms, it saturate the RPI in no time.

I’ve blocked the IP if more than 500 requests per 60s, it resolve the RPI saturation, but still no connection.

I’ve created a NTP server on my LAN and redirected the requests to it : Not working, still a lot of requests from the air filter.

What should I check, do to make it connect again to manufacturer App. ?

2

Please upload a debug log and post just the token URL that is generated after the log is uploaded by running the following command from the Pi-hole host terminal:

sudo pihole -d

or if you run your Pi-hole as a Docker container:

docker exec -it <pihole-container-name-or-id> pihole -d

where you substitute <pihole-container-name-or-id> as required.

3

Here it is : https://tricorder.pi-hole.net/6nB5qEBn/

Don't know why but when I try to open this link I get a blank screen

4

Because you are not a Pi-hole team member.

To guarantee your privacy, only Pi-hole developers/moderators have access to the logs.

If you want to read you own log, check /var/log/pihole/pihole_debug.log.

5

The client is being rate limited by Pi-hole. It is saturating itself out of DNS service.

   2025-11-29 02:30:28.312 CET [753M] INFO: Rate-limiting 192.168.1.80 for at least 5 seconds
   2025-11-29 02:30:33.228 CET [753/T783] INFO: Ending rate-limitation of 192.168.1.80
   2025-11-29 02:45:05.537 CET [753/T781] INFO: Received 8/8 valid NTP replies from fr.pool.ntp.org
   2025-11-29 02:45:05.538 CET [753/T781] INFO: Time offset: -2.511399e+01 ms (excluded 1 outliers)
   2025-11-29 02:45:05.539 CET [753/T781] INFO: Round-trip delay: 2.274418e+01 ms (excluded 1 outliers)
   2025-11-29 03:00:37.905 CET [753M] INFO: Rate-limiting 192.168.1.80 for at least 6 seconds
   2025-11-29 03:00:43.767 CET [753/T783] INFO: Ending rate-limitation of 192.168.1.80
   2025-11-29 03:04:37.915 CET [753M] INFO: Rate-limiting 192.168.1.80 for at least 6 seconds
   2025-11-29 03:04:43.842 CET [753/T783] INFO: Ending rate-limitation of 192.168.1.80
   2025-11-29 03:38:02.730 CET [753M] INFO: Rate-limiting 192.168.1.80 for at least 1 second
   2025-11-29 03:38:03.446 CET [753/T783] INFO: Ending rate-limitation of 192.168.1.80
   2025-11-29 03:44:17.418 CET [753M] INFO: Rate-limiting 192.168.1.80 for at least 6 seconds
   2025-11-29 03:44:23.565 CET [753/T783] INFO: Ending rate-limitation of 192.168.1.80
   2025-11-29 03:45:05.764 CET [753/T781] INFO: Received 8/8 valid NTP replies from fr.pool.ntp.org
   2025-11-29 03:45:05.765 CET [753/T781] INFO: Time offset: -2.516347e+01 ms (excluded 0 outliers)
   2025-11-29 03:45:05.765 CET [753/T781] INFO: Round-trip delay: 1.907504e+01 ms (excluded 0 outliers)
   2025-11-29 03:58:11.975 CET [753M] INFO: Rate-limiting 192.168.1.80 for at least 2 seconds
6

Yes I know, if I don't stop it it saturate the Pi up to 90% memory and 100% CPU.
Creating a local NTP didn't solved the issue.
No idea what's wrong.

7

Is there a way to totally bypass pi-hole (and Unbound) for a MAC address and send requests directly to another DNS like 1.1.1.1 ?

8

Yes if Pi-hole were doing DHCP services for your LAN.
Then you can tag a MAC address and have a customized DNS server (1.1.1.1) pushed to that MAC via the embedded dnsmasq DHCP option below (MAC 0C:2F:B0:XX:XX:XX as an example):

dhcp-host=0C:2F:B0:XX:XX:XX,set:cloudflare
dhcp-option=tag:cloudflare,option:dns-server,1.1.1.1,1.0.0.1

Settings > DHCP Settings > Expert > All settings > Miscellaneous > misc.dnsmasq_lines

1 Like
9

Why don't you put your iot devices into a dedicated group that bypasses pihole?

10

That's what I tried too (if I understand well your comment), I've created a "no filter" group and assigned the filter to it, but not working.
Even when I disable blocking it's not working.
Pi-Hole is blocking my IoT filter for a reason I still don't understand.

11

Uih .... that's a purpose of such grouping.

It looks to me that there's a general issue in your configuration.
Let's see what support can advise to you.

12

Most probably, but where....
Tried to bypass Unbound too, also not working.

13

Queries would still register in Pi-hole and mangling the stats displayed on the GUI.
Plus it doesnt stop the device from being rate-limited.

TTL (Time To Live) for those records seem to be 130 seconds (how long it should stay cached on the client):

$ dig +noall +answer pool.ntp.org
pool.ntp.org.           130     IN      A       191.96.11.19
pool.ntp.org.           130     IN      A       5.200.6.34
pool.ntp.org.           130     IN      A       94.198.159.15
pool.ntp.org.           130     IN      A       172.233.38.176

If the device doesnt obey/honor the TTL, the device manufacturer should be contacted to report a bug.

EDIT: Oh for the correct absolute TTL, you have to ask the authoritative server(s):

$ dig +short pool.ntp.org ns
d.ntpns.org.
i.ntpns.org.
g.ntpns.org.
h.ntpns.org.
f.ntpns.org.
e.ntpns.org.
b.ntpns.org.
c.ntpns.org.
a.ntpns.org.

$ dig +norecurse +noall +answer @d.ntpns.org. pool.ntp.org
pool.ntp.org.           130     IN      A       45.138.55.60
pool.ntp.org.           130     IN      A       149.143.87.22
pool.ntp.org.           130     IN      A       185.51.192.61
pool.ntp.org.           130     IN      A       185.51.192.62
14

Queries would still register in Pi-hole and mangling the stats displayed on the GUI.
Plus it doesnt stop the device from being rate-limited.

I'm fairly certain that NTP isn't queried hundreds of times when a request receives a response, as many other services do.

And the fact that the requests are included in the statistics is actually harmless and not the core of the problem, which is that NTP isn't responding or can't be reached.

I'm curious to see what the solution will be.

15

This is what I obtain :

$ dig +noall +answer pool.ntp.org
pool.ntp.org. 128 IN A 162.159.200.123
pool.ntp.org. 128 IN A 45.13.105.44
pool.ntp.org. 128 IN A 82.67.62.62
pool.ntp.org. 128 IN A 5.196.76.84

$ dig +short pool.ntp.org ns
h.ntpns.org.
f.ntpns.org.
i.ntpns.org.
g.ntpns.org.
b.ntpns.org.
d.ntpns.org.
a.ntpns.org.
c.ntpns.org.
e.ntpns.org.

$ dig +norecurse +noall +answer @d.ntpns.org. pool.ntp.org
pool.ntp.org. 130 IN A 77.197.121.128
pool.ntp.org. 130 IN A 54.38.114.34
pool.ntp.org. 130 IN A 129.151.225.244
pool.ntp.org. 130 IN A 82.64.230.205

16

From the data available, I cant determine with 100% certainty if they are all from an NTP client.
But in the first screenshot, they are all green meaning they arn't blocked.
And even if one or all four of the NTP server IP's cant be reached, those DNS records should still stay cached on the client for another sync attempt instead of querying DNS again.
13 queries in one second from the screenshot isnt normal and most certainly wont look good on the GUI pie charts etc.
EDIT: Oh and the queries database file will grow huge.

17

And below ones?

dig @localhost pool.ntp.org

pihole-FTL ntp 94.198.159.11

18

$ dig @localhost pool.ntp.org

; <<>> DiG 9.20.15-1~deb13u1-Debian <<>> @localhost pool.ntp.org
; (2 servers found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 17506
;; flags: qr rd ra; QUERY: 1, ANSWER: 4, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; EDE: 3 (Stale Answer)
;; QUESTION SECTION:
;pool.ntp.org. IN A

;; ANSWER SECTION:
pool.ntp.org. 0 IN A 37.59.63.125
pool.ntp.org. 0 IN A 129.250.35.251
pool.ntp.org. 0 IN A 129.250.35.250
pool.ntp.org. 0 IN A 82.67.41.119

;; Query time: 8 msec
;; SERVER: ::1#53(localhost) (UDP)
;; WHEN: Tue Dec 02 13:28:56 CET 2025
;; MSG SIZE rcvd: 111

$ pihole-FTL ntp 94.198.159.11
Using NTP server: 94.198.159.11
........
Received 8/8 valid NTP replies from 94.198.159.11
Time offset: -3.446136e+00 ms (excluded 1 outliers)
Round-trip delay: 2.132177e+01 ms (excluded 1 outliers)

19

Doesnty look good.
Hold on!

20

Above it says the TTL is zero (0) seconds.
That would explain no caching of the DNS records on the device occurring.

If restart Pi-hole with below to clear its cache:

sudo systemctl restart pihole-FTL.service

And tail/follow the logs live with below:

sudo pihole tail

What log lines appear if query again with below in another shell session?

dig @localhost pool.ntp.org

Also output for below pls?

pihole query pool.ntp.org

EDIT: Also did you make any alterations to Pi-hole concerning TTL's?
Like some custom configuration of some sort?
Could you post output for below pls (might want to redact some)?

sudo cat /etc/pihole/dnsmasq.conf
