Help! Let me know what is wrong with my setup cause pi hole isn't working

[the.dza]

Hey everyone,

For years I enjoyed all of the benefits of pi hole then I went and did something stupid like attempt to update then thinking I screwed it up and then decided to erase my mini SD card for my raspberry PI zero W and start all over again. Well, I don't seem to know what I'm doing cause I have pi hole all set up, queries sneaking through and all the ads are now here.

In the "old days", I wouldn't be able to click the first "ad" links in a google search, got "Admiral" warnings when I would visit sites (CNBC) and just general see far lesser ads.

Today, none of that is happening and it's a totally different (bad) experience that I can't figure out.

So here is my set up:

Pi hole device

• Running on my raspberry pi W zero wirelessly on my network. IP address is 192.168.1.112. It's all upgraded to the current version.
• I've loaded it with blacklists from https://firebog.net/. Then done the gravity update thing.
• I've even manually added domains / URLs found from that AdamONE extension.
• When I set it up it came with that standard Michael "black list"
• I have ssh enabled and remote into it fine.

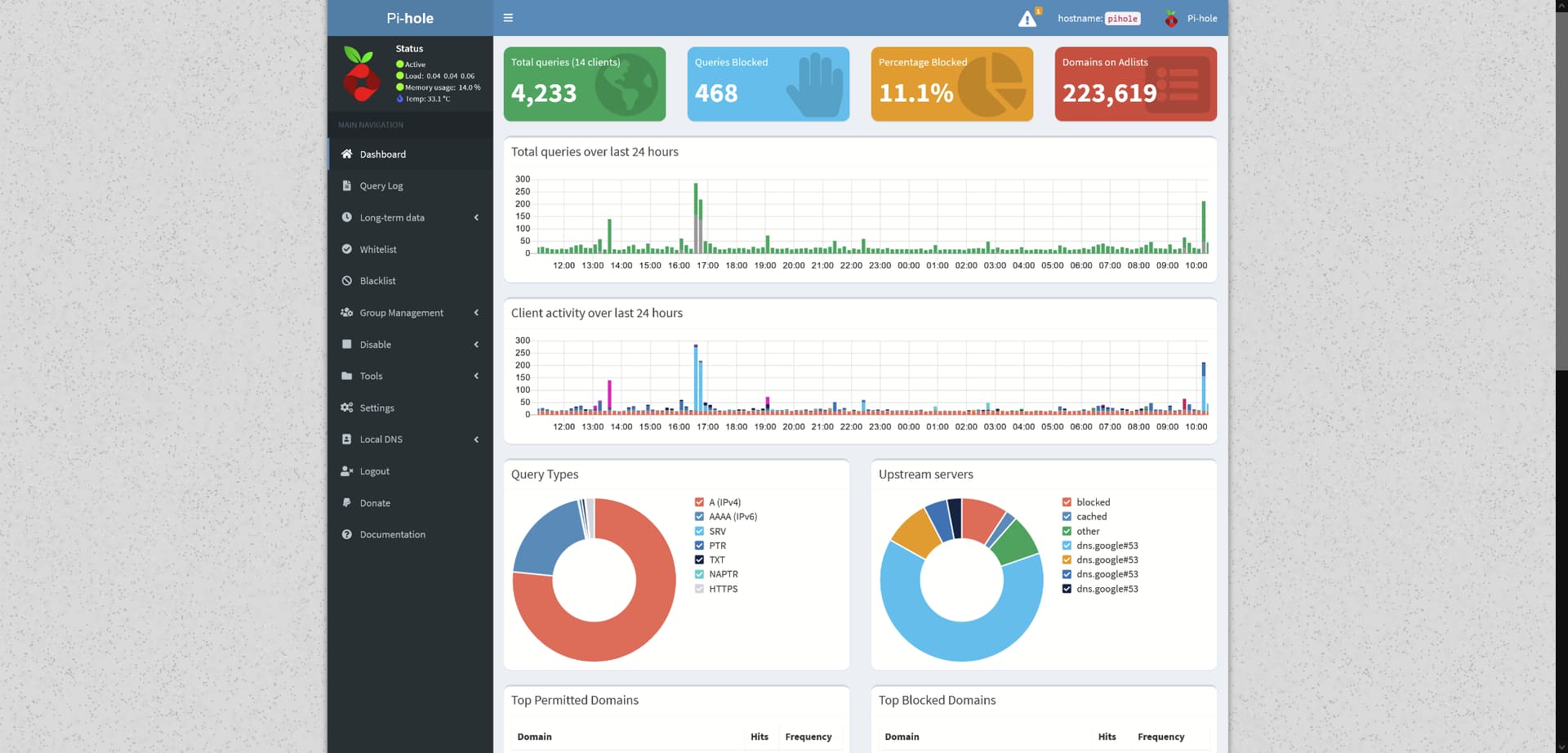

The stats seem to be misleading cause I find it hard to believe that it's stopping 11% but here is the home page

My router

• I should also mention that I upgraded my router to a Calix device which is commercial grade to help me with coverage across my house but has the basic DNS settings that I think are correct.
• This is the router GigaSpire | Calix Router | Calix GigaSpire
  So here is my

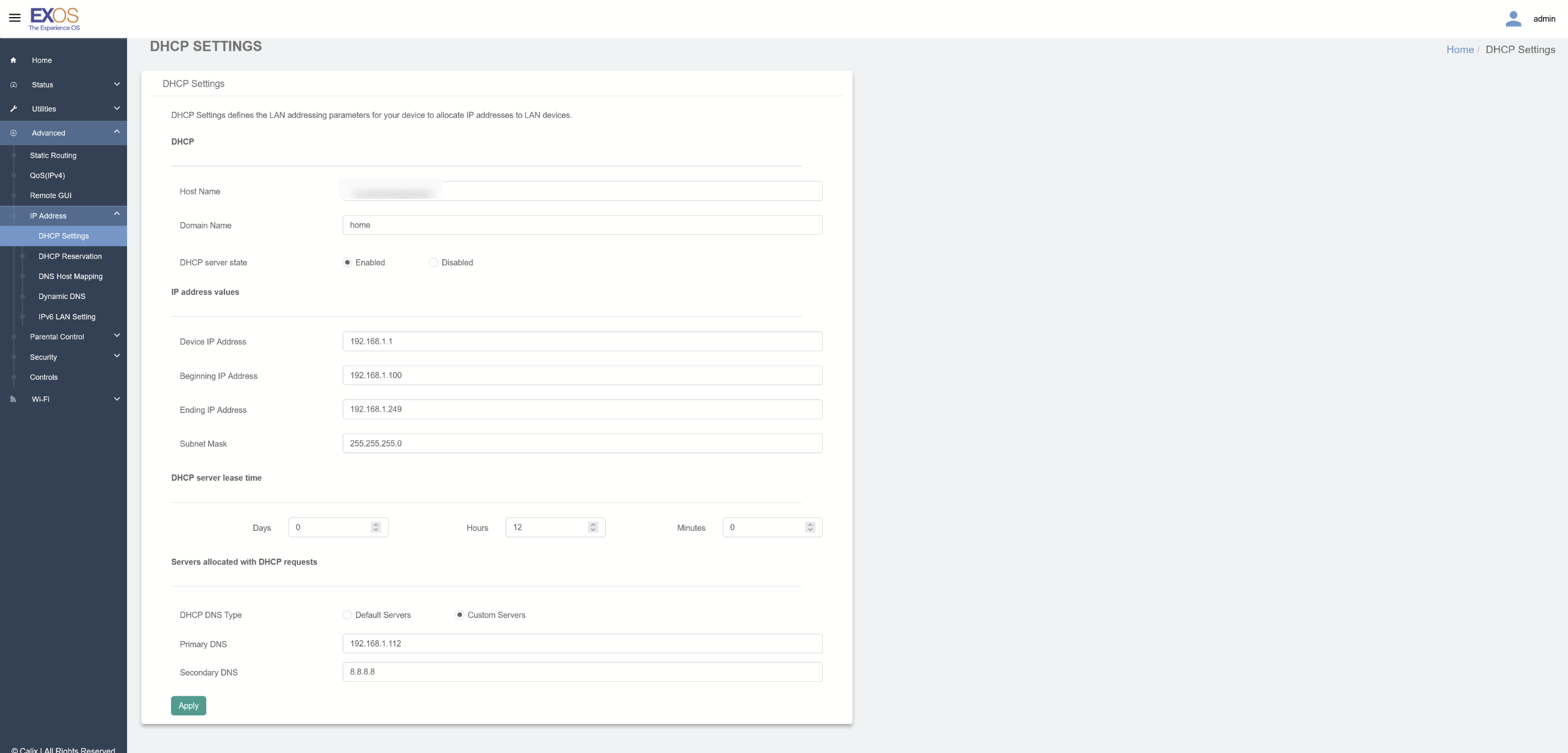

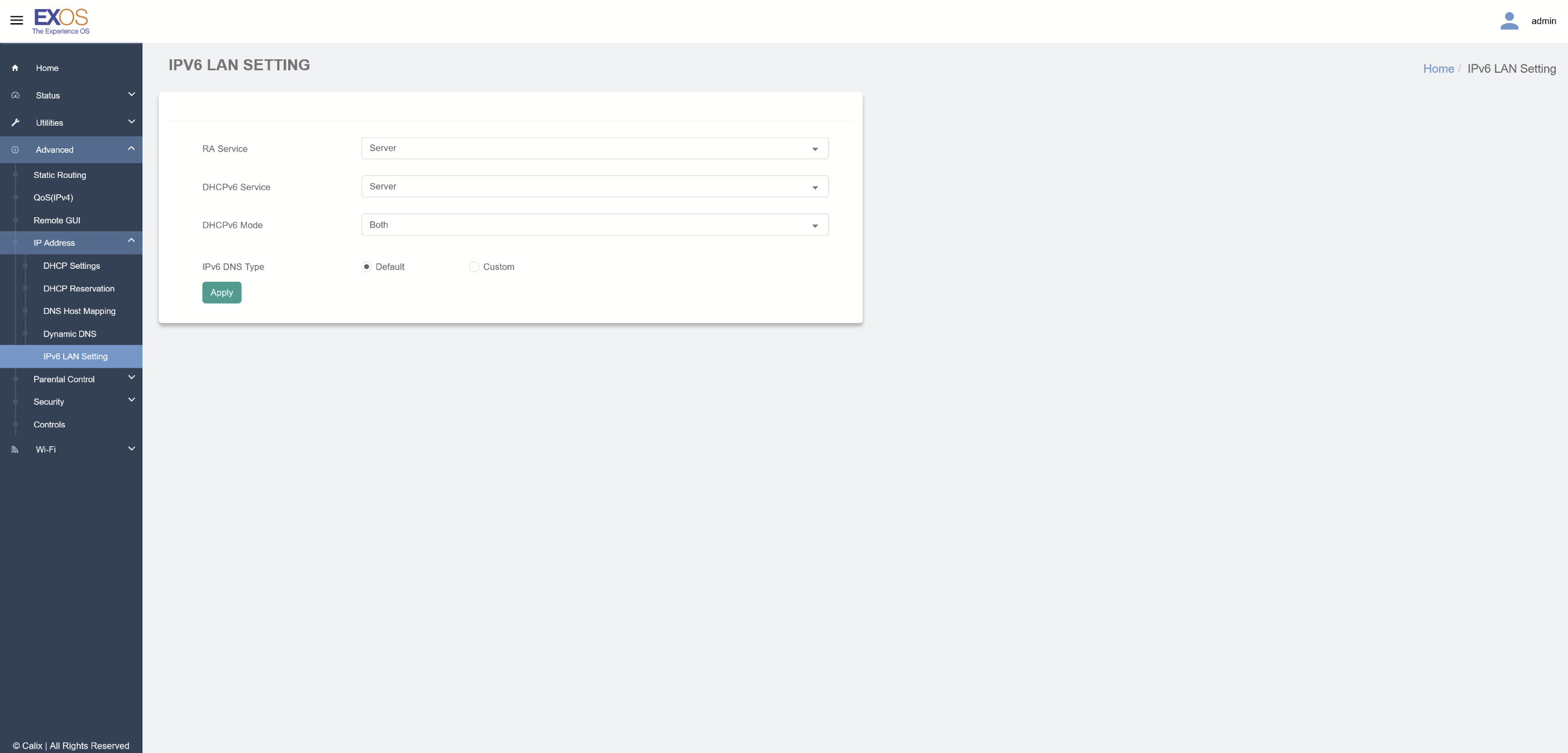

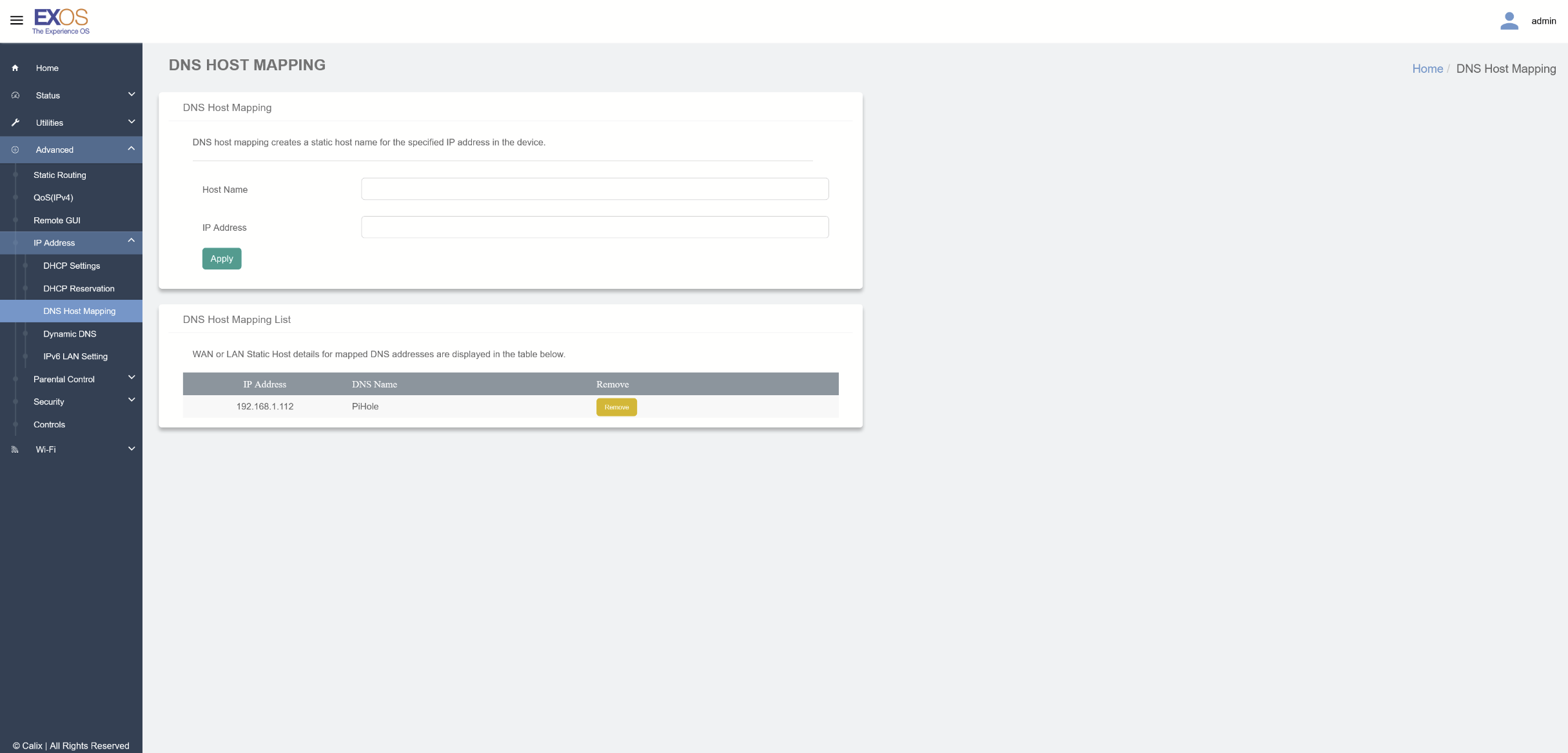

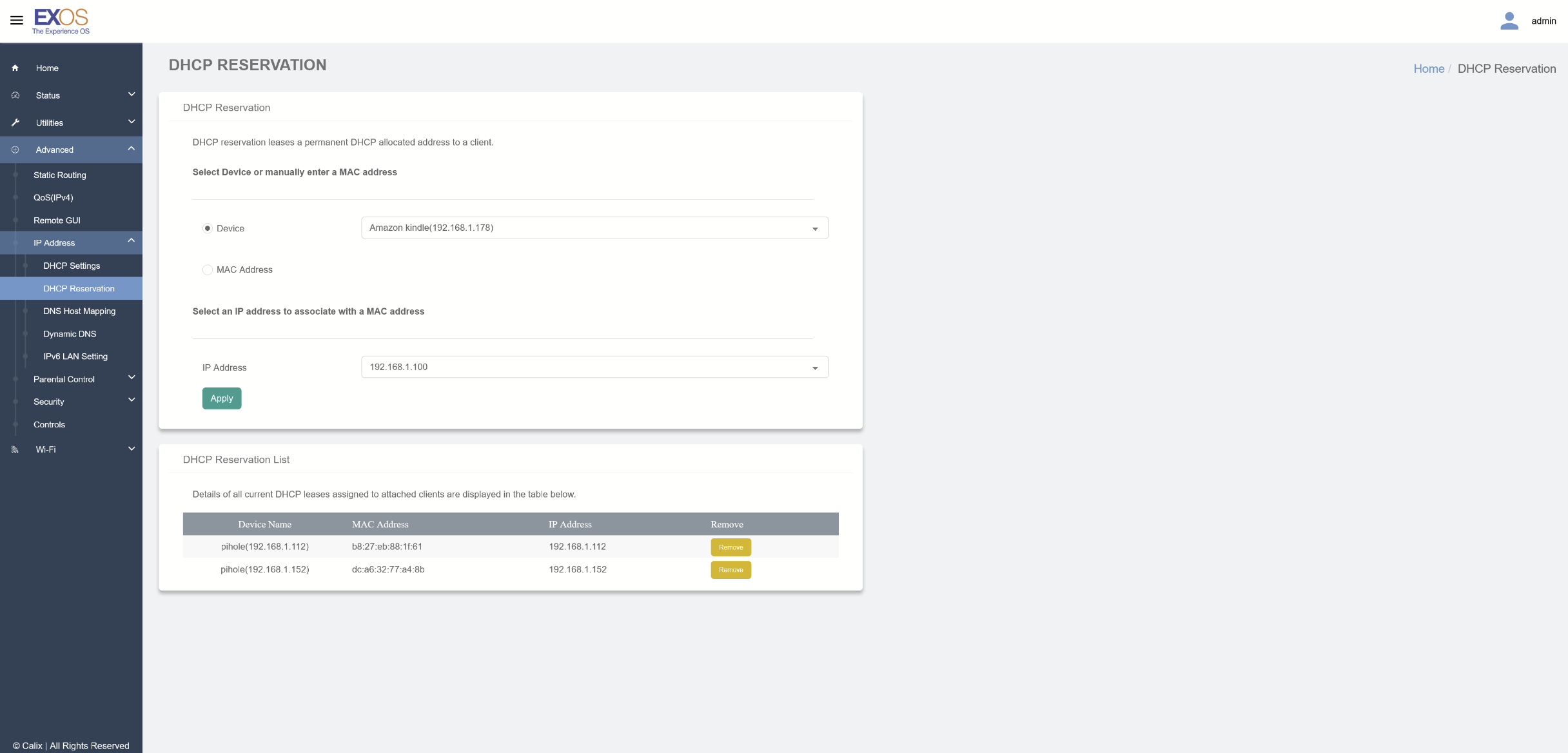

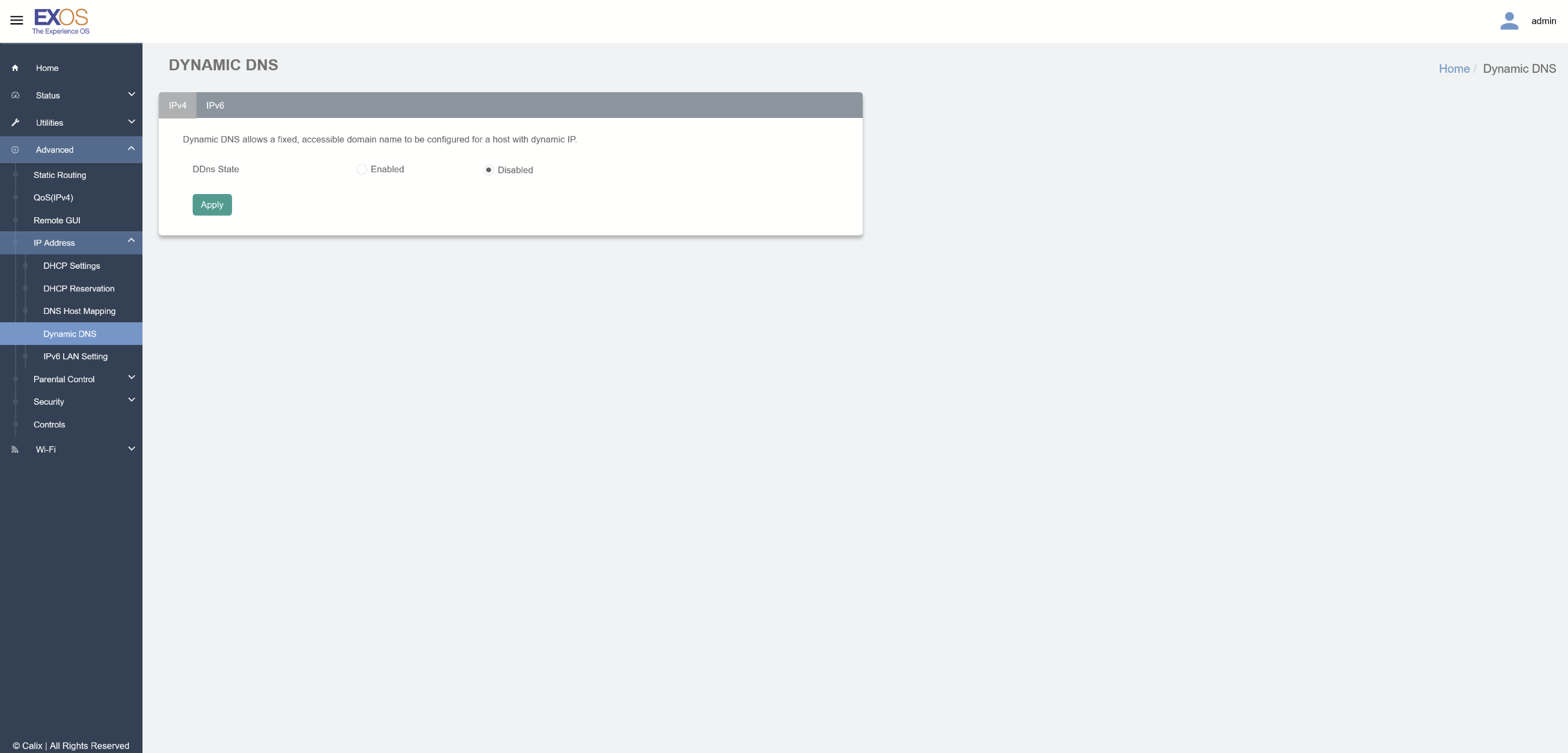

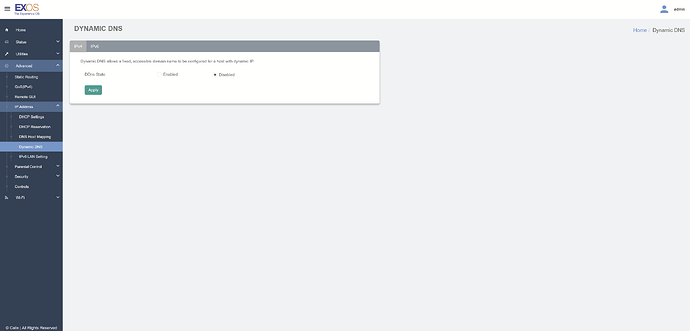

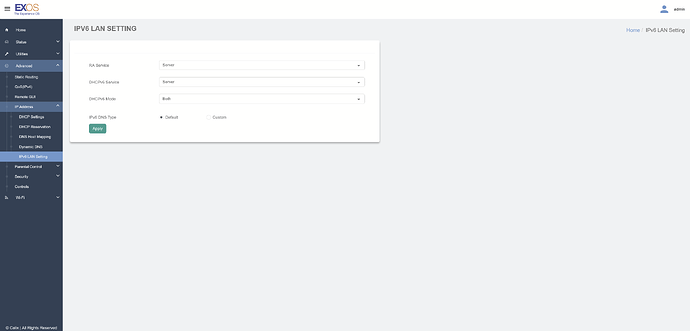

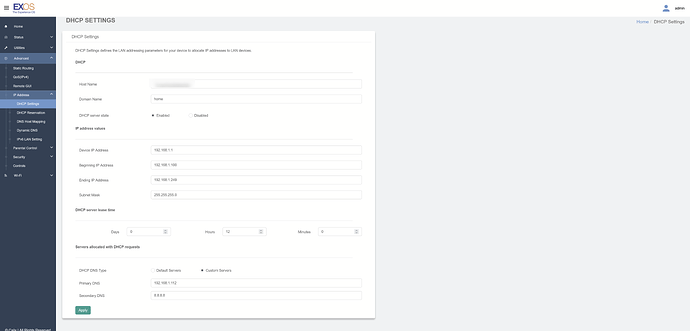

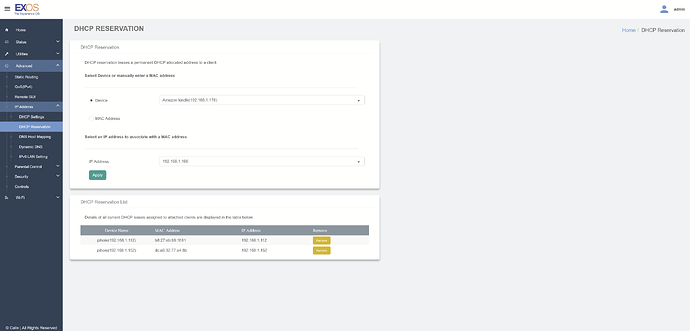

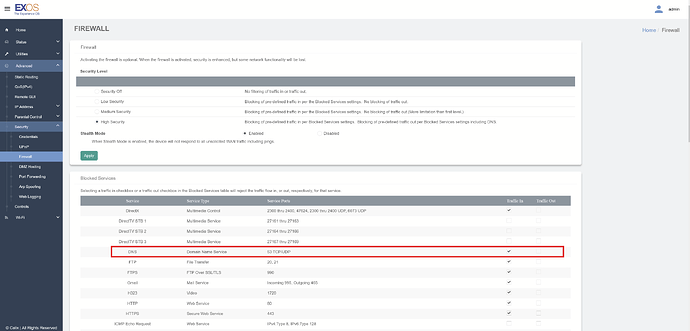

• Here are some of the DNS settings

Expected Behaviour:

I wish ads would get blocked again.

Actual Behaviour:

Ads are still coming through.

Debug Token:

https://tricorder.pi-hole.net/664Tx4Rf/

Thanks everyone!

Dza

[Blockhead]

Your router's second DNS address should be blank because when it is used, pi hole is bypassed. And second doesn't mean only used if first fails.

[the.dza]

Thanks for this. I've just removed the secondary DNS so I'll let you know how it goes, here are the current stats

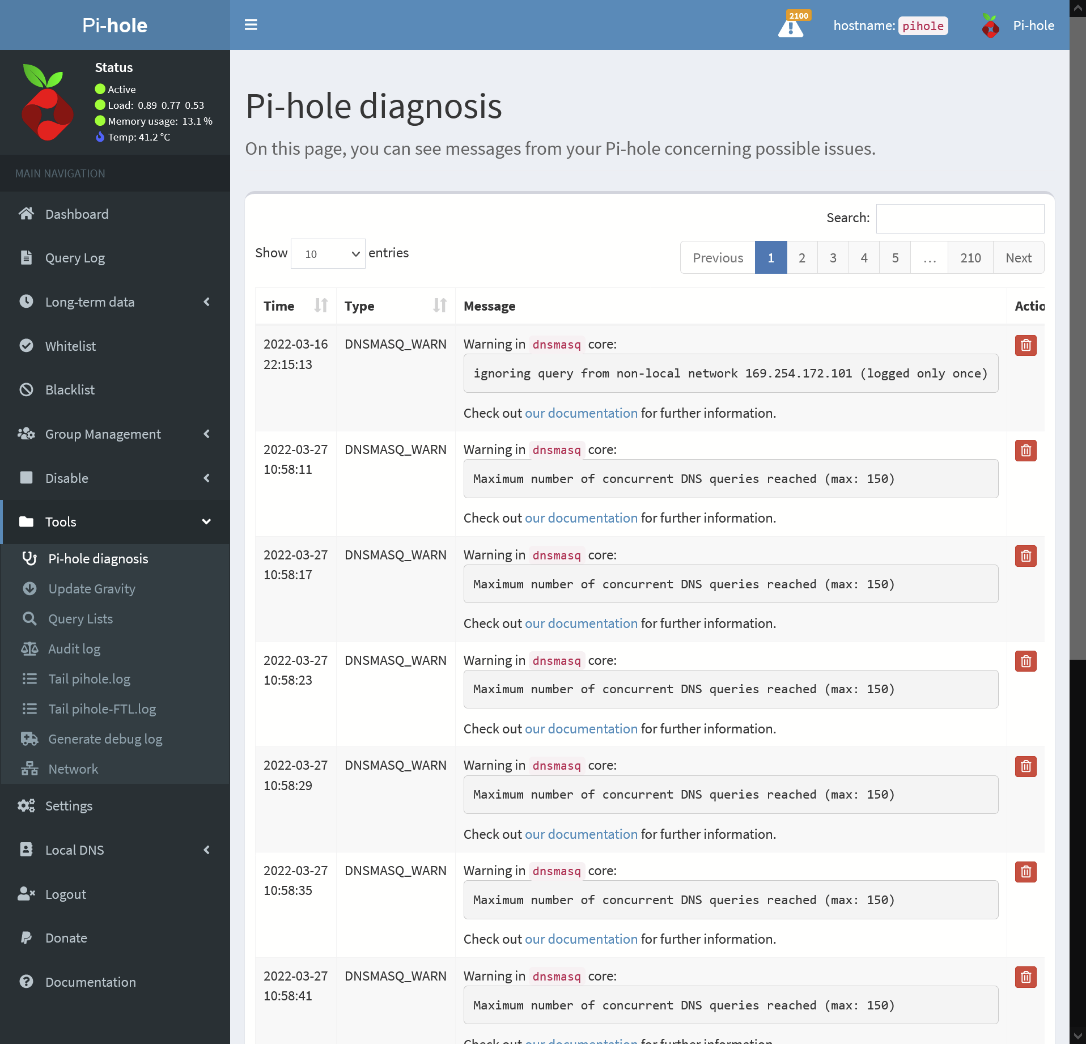

However, I'm getting a bunch of alerts it would appear, here is a snapshot

[Blockhead]

From the dash, one client seems to have a lot of those queries. You could start by checking that out. Also, another thread is discussing a large number of queries. Do you have conditional forwarding disabled, which could prevent circular queries?

If you don't find answers in from a search and you're still having trouble, you could run a pihole diagnosis from the dash and upload a debug token.
