Docker-compose admin UI not accessible via browser

Help
1

Hi,

I'm running a raspberry pi with Debian 11. Got the default docker-compose file from Github and I changed only the web port and the time zone. Local IP of the raspberry pi is 10.0.55.85

docker-compose:

version: "3"

# https://github.com/pi-hole/docker-pi-hole/blob/master/README.md

services:
  pihole:
    container_name: pihole
    image: pihole/pihole:latest
    # For DHCP it is recommended to remove these ports and instead add: network_mode: "host"
    ports:
      - "53:53/tcp"
      - "53:53/udp"
      - "67:67/udp"
      - "10080:80/tcp"
    environment:
      TZ: 'Europe/Berlin'
      WEBPASSWORD: 'securepass'
    # Volumes store your data between container upgrades
    volumes:
      - '/opt/docker/pihole/etc-pihole:/etc/pihole'
      - '/opt/docker/pihole/etc-dnsmasq.d:/etc/dnsmasq.d'
    #   https://github.com/pi-hole/docker-pi-hole#note-on-capabilities
    cap_add:
      - NET_ADMIN
    restart: unless-stopped # Recommended but not required (DHCP needs NET_ADMIN)

Expected Behaviour:

Opening http://10.0.55.85:10080/admin/ should redirect and show the admin page
Opening http://10.0.55.85:10080/admin/login.php should show the admin page

OS: Debian 11 on a rasp pi

Actual Behaviour:

In Chrome I always get the error "This site can't be reached" although a curl in terminal is working
I also tried the web interface in Safari and I get only a blank page

Don't know what's the issue I mean the compose file is default. I also change the DNS pointing to 10.0.55.85 but no chance to get the admin page.

2

Does this work from a different device (another computer or phone)?

3

Nope same behaviour. I tested Safari and Chrome on different MacBooks and on my iPhone no luck at all.

4

That's weird!
I've added an nginx reverse proxy with this config:

server {
	server_name pihole.example.com;
        listen 80;
        access_log /var/log/nginx/access.log speciallog;
        location / {
		proxy_pass http://172.29.0.2:80;
	}
}

It also works with my internal IP 10.0.55.85.

5

Any idea what could be the issue with pihole? Why isn't it possible to browse the admin UI directly via browser?

6

Here's something you can try:

  • Check if port 10080 is blocked by your firewall
  • Check if MTU is the same on all machines
  • Maybe try with a hello world HTTP server to see if you get the same problem? Use this image: https://hub.docker.com/r/strm/helloworld-http/
7

Hi,
well I've tested the connectivity with curl and nectat. Both working fine. So I guess something weird is being sent by lighttpd.
Even if I try to open http://10.0.55.85:10080/admin/ or http://10.0.55.85:10080/admin/login.php doesn't work. Btw I'm not using any firewall for my internal network.

8

Can you post the exact response from curl -I http://10.0.55.85:10080/admin/ and curl -I http://10.0.55.85:10080/?

Might also need to curl -IL if you are using redirects. I'm looking for the header information that is returned with those curl calls.

9

Can you also post a screenshot of the browser window including the URL?

10

Sorry for the late reply. I executed the curls on my local machine a macbook pro.

manuel@Manuels-MacBook-Pro ~ % curl -I http://10.0.55.85:10080/
HTTP/1.1 301 Moved Permanently
Location: /admin/
Date: Tue, 15 Aug 2023 13:47:00 GMT
Server: lighttpd/1.4.59

manuel@Manuels-MacBook-Pro ~ % curl -I http://10.0.55.85:10080/admin/
HTTP/1.1 302 Found
Expires: Thu, 19 Nov 1981 08:52:00 GMT
Cache-Control: no-store, no-cache, must-revalidate
Pragma: no-cache
Set-Cookie: PHPSESSID=4gkkkbqu9ompp2mh9mol9enqri; path=/; HttpOnly; SameSite=Strict
Location: login.php
Content-type: text/html; charset=UTF-8
X-Pi-hole: The Pi-hole Web interface is working!
X-Frame-Options: DENY
X-XSS-Protection: 0
X-Content-Type-Options: nosniff
Content-Security-Policy: default-src 'self' 'unsafe-inline';
X-Permitted-Cross-Domain-Policies: none
Referrer-Policy: same-origin
Date: Tue, 15 Aug 2023 13:47:18 GMT
Server: lighttpd/1.4.59

manuel@Manuels-MacBook-Pro ~ %

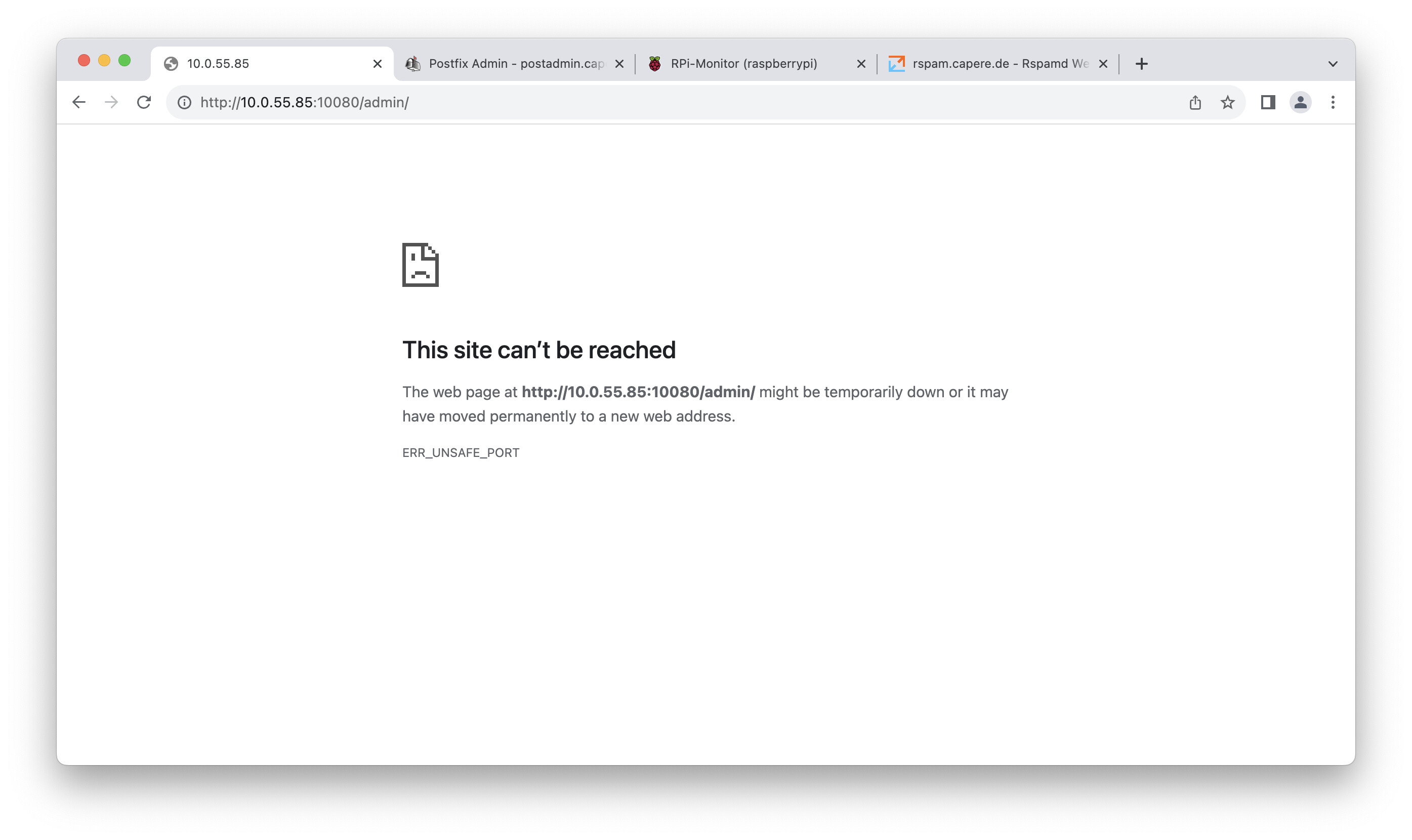

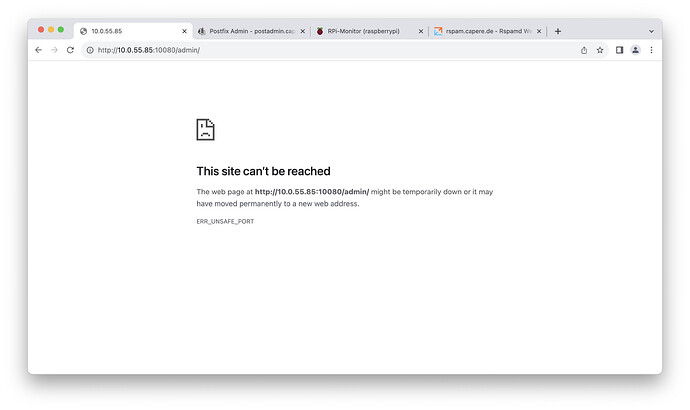

And the screenshot from chrome:

Screenshot 2023-08-15 at 15.47.48
Screenshot 2023-08-15 at 15.47.482790×1660 184 KB

As you can see the curl looks promising but no way to open the url in chrome or any other browser. Regardless which machine.

11

The curl shows that lighttpd is providing all of the content, headers and information that it is set up to do. So the issue isn't there, Pi-hole is fully functional. (Note the X-Pi-hole header for confirmation.)

I think your issue is with the browser or the underlying OS. Note the very last line of the page display: ERR_UNSAFE_PORT which is Chrome telling you that it is blocking your access to http on port 10080. There's a few options that show up from a quick web search on that error, how you wish to address it is up to you.

1 Like
12

...just read about the ALPACA attack....this seems to be related to port 10080 what a shame...so problem solved

13

If you'd stick with port 10080, you'd have to take it up with G**gle's developers then:

They are the ones deciding which ports to consider unsafe:

// The general list of blocked ports. (...)
(...)
const int kRestrictedPorts[] =  = {
    1,      // tcpmux
(...)
    10080,  // Amanda
};

(source: Chromium /net/base/port_util.cc)
