Comments in pihole-FTL.conf

I have a lot of comments in my pihole-FTL.conf, mainly to identify undocumented settings or point to topics where the setting is introduced / explained

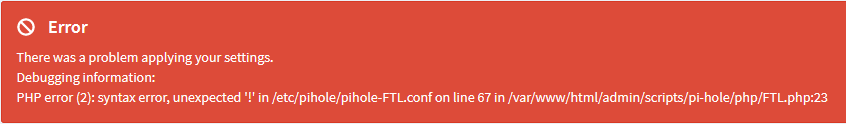

one of my comments triggered a php error on the settings page

## decrepated !!!

  • pihole-FTL uses '#' as comment sign
  • php uses ';' as comment sign (there are other options - '//', '/* */')

workaround:

  • remove '!!!' from comment, other chars may possibly trigger this error
  • use '#;' as comment in pihole-FTL, thus satisfying both pihole-FTL and php

Actually, FTL does not care about #. Instead, everything FTL cannot parse as valid config setting is ignored. So using ; everywhere is fine as well. Prepending with ä would equally work, too, etc.

Additional hint: Pi-hole v6.0 will change the config file format to TOML. The existing pihole-FTL.conf file will be automatically rewritten into a TOML document. Existing comments will be lost but the new file will contain comments for everything, for instance:

# This file is managed by pihole-FTL
#
# Do not edit the file while FTL is
# running or your changes may be overwritten
#
# Last update: 2021-06-10 12:09:06

[dns]
  # How should FTL reply to blocked queries?
  # Possible values are: [ "NULL", "IP-NODATA-AAAA", "IP", "NXDOMAIN" ]
  blockingmode = "NULL"

  # Should FTL walk CNAME paths?
  CNAMEdeepInspect = true

  # Should _esni. subdomains be blocked by default?
  blockESNI = true

  # Should FTL analyze possible ECS information to obtain client IPs hidden behind NATs?
  EDNS0ECS = true

  # Should FTL hide queries made by localhost?
  ignoreLocalhost = false

  [dns.ipBlocking]
    # Use a specific IPv4 address in IP blocking mode
    # Possible values are: <valid IPv4 address> or empty string ("")
    IPv4 = ""

    # Use a specific IPv6 address in IP blocking mode
    # Possible values are: <valid IPv6 address> or empty string ("")
    IPv6 = ""

  [dns.rateLimit]
    # How many queries are permitted...
    count = 0 ### CHANGED, default = 1000

    # ..in the set interval before rate-limiting?
    interval = 0 ### CHANGED, default = 60

[resolver]
  # Should FTL try to resolve IPv4 addresses to hostnames?
  resolveIPv4 = true

  # Should FTL try to resolve IPv6 addresses to hostnames?
  resolveIPv6 = true

  # Try to obtain client names from the network table
  networkNames = true

  # How (and if) hourly PTR lookups should be made
  # Possible values are: [ "IPV4_ONLY", "ALL", "UNKNOWN", "NONE" ]
  refresh = "IPV4_ONLY"

[database]
  # Should FTL load information from the database on startup to be aware of the most recent history?
  DBimport = true

  # How much history should be imported from the database [seconds]? (max 24*60*60 = 86400)
  maxHistory = 86400

  # How long should queries be stored in the database [days]?
  maxDBdays = 365

  # How often do we store queries in FTL's database [seconds]?
  DBinterval = 60

  [database.network]
    # Should FTL anaylze the local ARP cache?
    parseARP = true

    # How long should IP addresses be kept in the network_addresses table [days]?
    expire = 365

[http]
  # Does local clients need to authenticate to access the API?
  localAPIauth = true

  # Should FTL insert extra spaces to prettify the API output?
  prettyJSON = false

  # How long should a session be considered valid after login [seconds]?
  sessionTimeout = 300

  # On which domain is the web interface served?
  # Possible values are: <valid domain>
  domain = "pi.hole"

  # Webserver access control list.
  # Possible values are: <valid ACL>
  acl = "+0.0.0.0/0"

  # Ports to be used by the webserver
  # Possible values are: list of <[ip_address:]port>
  port = "8080,[::]:8080"

  [http.paths]
    # Server root on the host
    # Possible values are: <valid path>
    webroot = "/var/www/html"

    # Sub-directory of the root containing the web interface
    # Possible values are: <valid subpath>, both slashes are needed!
    webhome = "/admin/"

[files]
  # The location of FTL's log file
  # Possible values are: <any writable file>
  log = "/var/log/pihole-FTL.log"

  # The location of FTL's PID file
  # Possible values are: <any writable file>
  pid = "/run/pihole-FTL.pid"

  # The location of FTL's long-term database
  # Possible values are: <any FTL database>
  database = "/etc/pihole/pihole-FTL.db"

  # The location of Pi-hole's gravity database
  # Possible values are: <any gravity database>
  gravity = "/etc/pihole/gravity.db"

  # The database containing MAC -> Vendor information for the network table
  # Possible values are: <any macvendor database>
  macvendor = "/etc/pihole/macvendor.db"

  # The config file of Pi-hole
  # Possible values are: <any setupVars file>
  setupVars = "/etc/pihole/setupVars.conf"

  # The log file used by the webserver
  # Possible values are: <any writable database>
  HTTPinfo = "/var/log/pihole/HTTP_info.log"

  # The log file used by the dynamic interpreter PH7
  # Possible values are: <any writable file>
  PH7error = "/var/log/pihole/PH7.log"

[misc]
  # Privacy level
  privacyLevel = 0

  # Set niceness of pihole-FTL (can be disabled by setting to -999)
  nice = -30 ### CHANGED, default = -10

  # Artificially delay FTL's startup (0 to 300 seconds)
  delayStartup = 0

[debug]
  # Temporarily enable all debug flags
  all = false

  # Enable extra logging of database actions
  database = false

  # Enable extra logging of detected interfaces
  networking = false

  # Enable extra logging of shared memory lock actions
  locks = false

  # Print extensive query information
  queries = true ### CHANGED, default = false

  # Print flags of queries received by the DNS hooks
  flags = true ### CHANGED, default = false

  # Print information about shared memory buffers
  shmem = true ### CHANGED, default = false

  # Print information about garbage collection
  gc = false

  # Print information about ARP table processing
  arp = false

  # Enable extra logging of regex matching details
  regex = false

  # Enable extra logging of API activities
  api = true ### CHANGED, default = false

  # Print information about overTime memory operations
  overtime = false

  # Enable extra logging of query status changes
  status = true ### CHANGED, default = false

  # Print information about capabilities granted to the pihole-FTL process
  caps = false

  # Enable extra logging in dnsmasq's log routine
  dnsmasq_lines = false

  # Print vector operation details
  vectors = false

  # Extensive information about hostname resolution like which DNS servers are used
  resolver = true ### CHANGED, default = false

  # Print EDNS(0) debugging information
  edns0 = false

  # Enable extra client detail logging
  clients = false

  # Print aliasclient details
  aliasclients = false

  # Log information about processed internal events
  events = true ### CHANGED, default = false

  # Enable logging of script helper activity
  helper = false

  # Print config parsing details
  config = true ### CHANGED, default = false

You can see that FTL will automatically add comments to changed values to highlight that they were changed and also mentioning what the default value would have been. The file above is what my current Pi-hole v6.0 development machine uses. The format is by no means fixed and may change until we're ready for public testing.

Please file a bug in the doc repo if you encounter undocumented configuration settings.

don't think this is a good idea (using anything else but a leading '#')

reason, scripts don't like this...
from query.sh

piholeDir="/etc/pihole"

# Source pihole-FTL from install script
pihole_FTL="${piholeDir}/pihole-FTL.conf"
if [[ -f "${pihole_FTL}" ]]; then
  source "${pihole_FTL}"
fi

result (tested change on single line, using '//')

/etc/pihole/pihole-FTL.conf: line 32: //GRAVITYDB=/etc/pihole/gravity.db: No such file or directory

using '#;' doesn't cause any problems.

I see. However, sourceing external files in scripts is dangerous as malicious code can be inserted and runs at the permissions of the running script.
