Thanks for the info on HSTS. I had a go at testing it out and I believe there are different scenarios where HSTS gets triggered in my current browser (Chrome Version 90.0.4430.93).
So for example if start by entering "google.com" in the url bar, the browser first performs a GET using HTTP (extracts are from dev tools network tab: Link Address, Request Headers, Response Headers):
Link Address=http://google.com/
>> GET / HTTP/1.1
>> Host: google.com
>> Connection: keep-alive
>> Pragma: no-cache
>> Cache-Control: no-cache
>> DNT: 1
>> Upgrade-Insecure-Requests: 1
>> User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/90.0.4430.93 Safari/537.36
>> Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
>> Accept-Encoding: gzip, deflate
>> Accept-Language: en-US,en;q=0.9
>> Cookie: HSID=...; OGPC=...:; SID=....; SEARCH_SAMESITE=...; SIDCC=...
<< HTTP/1.1 301 Moved Permanently
<< Location: http://www.google.com/
<< Content-Type: text/html; charset=UTF-8
<< BFCache-Opt-In: unload
<< Date: Sun, 23 May 2021 09:10:51 GMT
<< Expires: Tue, 22 Jun 2021 09:10:51 GMT
<< Cache-Control: public, max-age=2592000
<< Server: gws
<< Content-Length: 219
<< X-XSS-Protection: 0
<< X-Frame-Options: SAMEORIGIN
It is in the second request that redirects from HTTP to HTTPS (I think HSTS is triggered here):
Link Address=http://www.google.com/
>> GET / HTTP/1.1
>> DNT: 1
>> Upgrade-Insecure-Requests: 1
>> User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/90.0.4430.93 Safari/537.36
>> Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
<< HTTP/1.1 307 Internal Redirect
<< Location: https://www.google.com/
<< Non-Authoritative-Reason: HSTS
I can see a similar behavior happening when I try "amazon.com" and "facebook.com".
The second behavior which I believe HSTS is being triggered from the start is when I use a one of the previous tested domains with a "www" prefix, the browser is immediately creating a TLS connection (supposedly) and adding the HTTPS prefix to the url with first request being the below:
Link Address=https://www.google.com/
>> authority: www.google.com
>> pragma: no-cache
>> cache-control: no-cache
>> sec-ch-ua: " Not A;Brand";v="99", "Chromium";v="90", "Google Chrome";v="90"
>> sec-ch-ua-mobile: ?0
>> dnt: 1
>> upgrade-insecure-requests: 1
>> user-agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/90.0.4430.93 Safari/537.36
>> accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
>> x-client-data: ....
>> sec-fetch-site: none
>> sec-fetch-mode: navigate
>> sec-fetch-user: ?1
>> sec-fetch-dest: document
>> accept-language: en-US,en;q=0.9
>> cookie: HSID=...; SSID=...; APISID=...; SAPISID=...; __Secure-3PAPISID=...; OGPC=...; SID=...; __Secure-3PSID=...; SEARCH_SAMESITE=...; OTZ=...;...
<< alt-svc: h3-29=":443"; ma=2592000,h3-T051=":443"; ma=2592000,h3-Q050=":443"; ma=2592000,h3-Q046=":443"; ma=2592000,h3-Q043=":443"; ma=2592000,quic=":443"; ma=2592000; v="46,43"
<< bfcache-opt-in: unload
<< cache-control: private, max-age=0
<< content-encoding: br
<< content-length: 38005
<< content-type: text/html; charset=UTF-8
<< date: Sun, 23 May 2021 09:50:00 GMT
<< expires: -1
<< server: gws
<< set-cookie: 1P_JAR=2021-05-23-09; expires=Tue, 22-Jun-2021 09:50:00 GMT; path=/; domain=.google.com; Secure; SameSite=none
<< set-cookie: OTZ=; expires=Mon, 01-Jan-1990 00:00:00 GMT; path=/; domain=www.google.com
<< set-cookie: OTZ=; expires=Mon, 01-Jan-1990 00:00:00 GMT; path=/; domain=.www.google.com
<< set-cookie: OTZ=; expires=Mon, 01-Jan-1990 00:00:00 GMT; path=/; domain=google.com
<< set-cookie: OTZ=; expires=Mon, 01-Jan-1990 00:00:00 GMT; path=/; domain=.google.com
<< set-cookie: SIDCC=...; expires=Mon, 23-May-2022 09:50:00 GMT; path=/; domain=.google.com; priority=high
<< set-cookie: __Secure-3PSIDCC=...; expires=Mon, 23-May-2022 09:50:00 GMT; path=/; domain=.google.com; Secure; HttpOnly; priority=high; SameSite=none
<< strict-transport-security: max-age=31536000
<< x-frame-options: SAMEORIGIN
<< x-xss-protection: 0

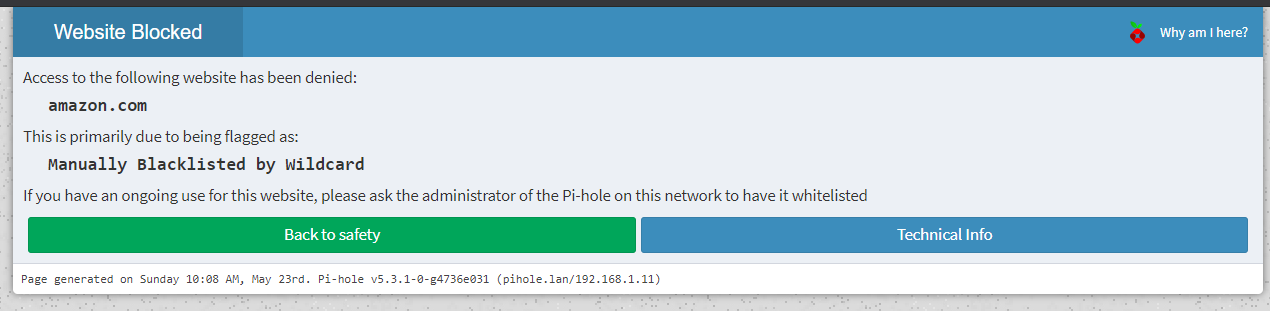

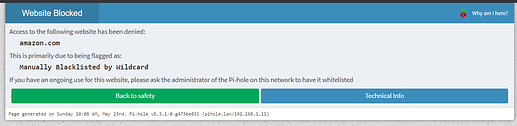

Nevertheless, if the browser would directly start using HTTPS instead of HTTP, in my opinion it would still be clearer for the user to eventually (after bypassing some ssl warnings if needed) see the pihole "blocked page" instead of some browser error that needs a higher technical understanding:
On a side note, I realized that pi-hole lighttpd needs to be re-configured to expose SSL port for the host as a start to support showing the blocked page with HTTPS.
