Feedback for "Allow defining clients by their MAC address, host name and networking interface"

jfb · June 5, 2020, 7:44pm

You can select a block of text, then apply the format tool </> from the top of the reply window. This will format the block of text as "preformatted text" and remove URLs, put in a monospace font, allow scrolling, etc.

yubiuser · June 5, 2020, 7:45pm

Read carefully

10.4.0.99 vs. 10.0.4.64/26

mgg · June 5, 2020, 7:46pm

Hi fjb,
just did that on my iPad, but maybe to thik fingers

jfb · June 5, 2020, 7:47pm

Formatting on an iPad is tougher than on a desktop. Icons are smaller, harder to select a block, etc.

yubiuser · June 5, 2020, 7:48pm

Did you checkout the web as well?

pihole checkout web new/mac_client

mgg · June 5, 2020, 7:48pm

Hi man,
need new glasses also... ;-(
I have seen an other typo in the /27 definition.

Thanks for the hint !

mgg · June 5, 2020, 7:50pm

Yes, just did the web checkout also, only pihole is on master.
As you described it at the beginning of the thread.

mgg · June 5, 2020, 7:52pm

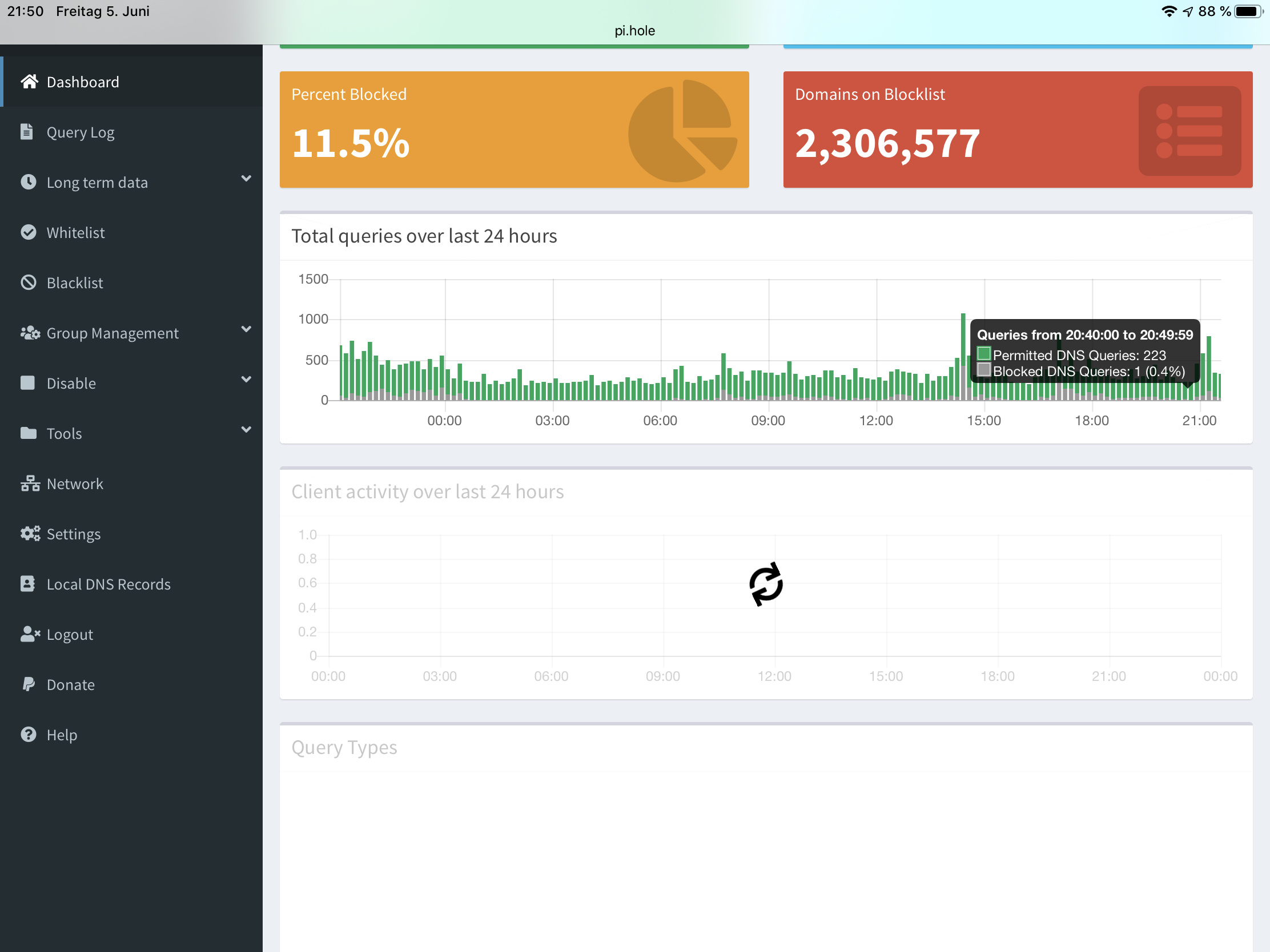

The circle is running all time long

yubiuser · June 5, 2020, 7:54pm

Have you tried restarting pihole-FTL? Do you see any errors in /var/log/pihole-FTL.log?

mgg · June 5, 2020, 8:00pm

No, there are no error in the ftl.log
But in the lighttpd error.log i have the following:


2020-06-05 21:53:34: (mod_fastcgi.c.421) FastCGI-stderr: PHP Notice:  Undefined index: PORTFILE in /var/www/html/admin/scripts/pi-hole/php/FTL.php on line 39
2020-06-05 21:53:34: (mod_fastcgi.c.421) FastCGI-stderr: PHP Warning:  file_get_contents(): Filename cannot be empty in /var/www/html/admin/scripts/pi-hole/php/FTL.php on line 39
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr: Array
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr: (
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:     [default-light] => Array
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:         (
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [0] => Pi-hole default theme (light, default)
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [1] =>
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [2] => default-light
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [3] => minimal
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [4] => blue
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:         )
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:     [default-dark] => Array
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:         (
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [0] => Pi-hole midnight theme (dark)
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [1] => 1
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [2] => default-dark
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [3] => polaris
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [4] => polaris
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:         )
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:     [default-dark2] => Array
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:         (
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [0] => Pi-hole afternoon theme (dark)
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [1] => 1
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [2] => default-dark
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [3] => futurico
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:             [4] => futurico
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr:         )
2020-06-05 21:53:35: (mod_fastcgi.c.421) FastCGI-stderr: )

Will do a restart and report

mgg · June 5, 2020, 8:03pm

After reboot the same (pihole restartdns)
Checked the version


pihole -v
  Pi-hole version is v5.0 (Latest: v5.0)
  AdminLTE version is new/mac_clients v5.0-132-geb3c672 (Latest: v5.0)
  FTL version is new/mac_clients vDev-843c4ab (Latest: v5.0)

DL6ER · June 5, 2020, 8:05pm

Please try force-refreshing your browser’s cache (typically achieved by Ctrl+F5), not sure how to do it on an iPad.

yubiuser · June 5, 2020, 8:06pm

I've seen that error before and Promo pushed an fix for this already some time ago.

github.com/pi-hole/web

Remove an error log output that was presumably leftover from debugging

pi-hole:devel ← pi-hole:tweak/notAnError

opened 04:02PM - 18 May 20 UTC

PromoFaux

+8 -4

**By submitting this pull request, I confirm the following:** - [x] I have r…ead and understood the [contributors guide](https://github.com/pi-hole/pi-hole/blob/master/CONTRIBUTING.md), as well as this entire template. - [x] I have made only one major change in my proposed changes. - [ ] I have commented my proposed changes within the code. - [x] I have tested my proposed changes, and have included unit tests where possible. - [x] I am willing to help maintain this change if there are issues with it later. - [x] I give this submission freely and claim no ownership. - [x] It is compatible with the [EUPL 1.2 license](https://opensource.org/licenses/EUPL-1.1) - [x] I have squashed any insignificant commits. ([`git rebase`](http://gitready.com/advanced/2009/02/10/squashing-commits-with-rebase.html)) --- **What does this PR aim to accomplish?:** With this line, this gets printed to the error log every time the page is loaded, looks to just be debug output, I might be wrong! ``` 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: Array 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: ( 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [default-light2] => Array 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: ( 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [0] => Pi-hole default theme (light, default) 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [1] => 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [2] => default-light 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [3] => minimal 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [4] => blue 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: ) 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [default-dark] => Array 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: ( 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [0] => Pi-hole midnight theme (dark) 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [1] => 1 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [2] => default-dark 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [3] => polaris 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [4] => polaris 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: ) 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [default-dark2] => Array 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: ( 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [0] => Pi-hole afternoon theme (dark) 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [1] => 1 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [2] => default-dark 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [3] => futurico 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: [4] => futurico 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: ) 2020-05-18 16:57:14: (mod_fastcgi.c.421) FastCGI-stderr: ) ```

mgg · June 5, 2020, 8:07pm

I will check how to on iPad and come back

DL6ER · June 5, 2020, 8:08pm

Sure, the flush for the spinner, not the error log message.

mgg · June 5, 2020, 8:15pm

Hi DL6ER,

that worked! so easy, when doing it right...
Another question, where can I find the message table in the GUI?
The function you added to show duplicate entries.

just to share if for interest:

iPad Safari Chache löschen
Nur den Cache leeren

Gehen Sie zu den Einstellungen.
Wählen Sie „Safari“.
Tippen Sie auf „Erweitert“.
Wählen Sie „Website-Daten“.
Tippen Sie auf „Alle Website-Daten entfernen“.

DL6ER · June 5, 2020, 8:31pm

Tools -> Pi-hole diagnostics.

I just merged the most recent development changes into the web branch, you may have to update.

mgg · June 5, 2020, 8:39pm

You are amasing !
Thank you guys for your help.
You are doing a realy great job

greats
Markus

mgg · June 6, 2020, 7:03am

Hi folks,

I checked my FTL.log this morning and I am wondering about the following.
The client 10.4.0.4 has connect this morning the first time after I gave him an static lease within dhcp with a different ip.
I changed my Groupconfig so the new ip is set to group 0.
These config changes did I yesterday, so everything was in place when the client connects.

Now I saw that the regex whitelist entry (I only have one) is not enabled for that client, although it is for group 0.
The selects for the regex entries are missing.

I put the log of another client with group 0 to show the difference concerning the regex entry.

Another difference, for me is the 10.0.1.62 was init at startup while the 10.4.0.4 established a new connection due runtime. Maybe this helps to get the code position evaluated.

Other Client


[2020-06-06 01:17:16.988 8378] Reloading clinet groups after 8201 seconds
[2020-06-06 01:17:16.988 8378] Finalizing gravity statements for 10.0.1.62
[2020-06-06 01:17:16.988 8378] Initializing gravity statements for 10.0.1.62
[2020-06-06 01:17:16.988 8378] Querying gravity database for client with IP 10.0.1.62...
[2020-06-06 01:17:16.989 8378] SQL: Comparing 10.0.1.62 vs. 10.4.0.0/24 (subnet 255.255.255.0) - NO MATCH
[2020-06-06 01:17:16.989 8378] SQL: Comparing 10.0.1.62 vs. 10.4.0.3 (subnet 255.255.255.255) - NO MATCH
[2020-06-06 01:17:16.989 8378] SQL: Comparing 10.0.1.62 vs. 10.4.0.4 (subnet 255.255.255.255) - NO MATCH
[2020-06-06 01:17:16.989 8378] --> No record for 10.0.1.62 in the client table
[2020-06-06 01:17:16.990 8378] gravityDB_open(): Preparing vw_whitelist statement for client 10.0.1.62
[2020-06-06 01:17:16.990 8378] get_client_querystr: SELECT EXISTS(SELECT domain from vw_whitelist WHERE domain = ? AND group_id IN (0));
[2020-06-06 01:17:16.990 8378] gravityDB_open(): Preparing vw_gravity statement for client 10.0.1.62
[2020-06-06 01:17:16.990 8378] get_client_querystr: SELECT EXISTS(SELECT domain from vw_gravity WHERE domain = ? AND group_id IN (0));
[2020-06-06 01:17:16.991 8378] gravityDB_open(): Preparing vw_blacklist statement for client 10.0.1.62
[2020-06-06 01:17:16.991 8378] get_client_querystr: SELECT EXISTS(SELECT domain from vw_blacklist WHERE domain = ? AND group_id IN (0));
[2020-06-06 01:17:16.992 8378] Regex blacklist: Querying groups for client 10.0.1.62: "SELECT id from vw_regex_blacklist WHERE group_id IN (0);"
[2020-06-06 01:17:16.993 8378] Regex whitelist: Querying groups for client 10.0.1.62: "SELECT id from vw_regex_whitelist WHERE group_id IN (0);"
[2020-06-06 01:17:16.993 8378] Regex whitelist: Enabling regex with DB ID 255 for client 10.0.1.62

And the log snip for the 10.4.0.4


[2020-06-06 01:54:02.577 8378] Initializing gravity statements for 10.4.0.4
[2020-06-06 01:54:02.577 8378] Querying gravity database for client with IP 10.4.0.4...
[2020-06-06 01:54:02.578 8378] SQL: Comparing 10.4.0.4 vs. 10.4.0.0/24 (subnet 255.255.255.0) - !! MATCH !!
[2020-06-06 01:54:02.578 8378] SQL: Comparing 10.4.0.4 vs. 10.4.0.0/24 (subnet 255.255.255.0) - !! MATCH !!
[2020-06-06 01:54:02.578 8378] SQL: Comparing 10.4.0.4 vs. 10.4.0.3 (subnet 255.255.255.255) - NO MATCH
[2020-06-06 01:54:02.578 8378] SQL: Comparing 10.4.0.4 vs. 10.4.0.4 (subnet 255.255.255.255) - !! MATCH !!
[2020-06-06 01:54:02.578 8378] SQL: Comparing 10.4.0.4 vs. 10.4.0.4 (subnet 255.255.255.255) - !! MATCH !!
[2020-06-06 01:54:02.578 8378] SQL: Comparing 10.4.0.4 vs. 10.4.0.4 (subnet 255.255.255.255) - !! MATCH !!
[2020-06-06 01:54:02.579 8378] --> Found record for 10.4.0.4 in the client (ID 26)
[2020-06-06 01:54:02.579 8378] Querying gravity database for client 10.4.0.4 (getting groups)
[2020-06-06 01:54:02.579 8378] Gravity database: Client 10.4.0.4 found. Using groups [0].
[2020-06-06 01:54:02.579 8378] gravityDB_open(): Preparing vw_whitelist statement for client 10.4.0.4
[2020-06-06 01:54:02.579 8378] get_client_querystr: SELECT EXISTS(SELECT domain from vw_whitelist WHERE domain = ? AND group_id IN (0));
[2020-06-06 01:54:02.580 8378] gravityDB_open(): Preparing vw_gravity statement for client 10.4.0.4
[2020-06-06 01:54:02.580 8378] get_client_querystr: SELECT EXISTS(SELECT domain from vw_gravity WHERE domain = ? AND group_id IN (0));
[2020-06-06 01:54:02.580 8378] gravityDB_open(): Preparing vw_blacklist statement for client 10.4.0.4
[2020-06-06 01:54:02.580 8378] get_client_querystr: SELECT EXISTS(SELECT domain from vw_blacklist WHERE domain = ? AND group_id IN (0));
[2020-06-06 01:54:02.581 8378] domain_in_list("wbs02-ws.withings.net", 0xd781f0, whitelist): 0
[2020-06-06 01:54:02.581 8378] Regex whitelist (DB ID 255) "(\.|^)diehl\.com$" NOT ENABLED for client 10.4.0.4
[2020-06-06 01:54:02.581 8378] domain_in_list("wbs02-ws.withings.net", 0xca3460, blacklist): 0
[2020-06-06 01:54:02.582 8378] domain_in_list("wbs02-ws.withings.net", 0xd78930, gravity): 0
[2020-06-06 01:54:02.582 8378] **** forwarded wbs02-ws.withings.net to 127.0.0.1 (ID 6740, /root/project/src/dnsmasq/forward.c:549)

mgg · June 6, 2020, 8:14am

Hi,
I just played around a little bit and changed my group definition.
And after the reinit with


[2020-06-06 10:06:20.221 8378] Received: Real-time signal 0 (34 -> 0)

the regex is enabled


[2020-06-06 10:06:20.553 8378] Querying gravity database for client with IP 10.4.0.4...
[2020-06-06 10:06:20.553 8378] SQL: Comparing 10.4.0.4 vs. 10.4.0.0/24 (subnet 255.255.255.0) - !! MATCH !!
[2020-06-06 10:06:20.553 8378] SQL: Comparing 10.4.0.4 vs. 10.4.0.0/24 (subnet 255.255.255.0) - !! MATCH !!
[2020-06-06 10:06:20.553 8378] SQL: Comparing 10.4.0.4 vs. 10.4.0.0/28 (subnet 255.255.255.240) - !! MATCH !!
[2020-06-06 10:06:20.553 8378] SQL: Comparing 10.4.0.4 vs. 10.4.0.0/28 (subnet 255.255.255.240) - !! MATCH !!
[2020-06-06 10:06:20.554 8378] SQL: Comparing 10.4.0.4 vs. 10.4.0.0/28 (subnet 255.255.255.240) - !! MATCH !!
[2020-06-06 10:06:20.554 8378] --> Found record for 10.4.0.4 in the client (ID 27)
[2020-06-06 10:06:20.554 8378] Querying gravity database for client 10.4.0.4 (getting groups)
[2020-06-06 10:06:20.554 8378] Gravity database: Client 10.4.0.4 found. Using groups [0].
[2020-06-06 10:06:20.554 8378] Regex blacklist: Querying groups for client 10.4.0.4: "SELECT id from vw_regex_blacklist WHERE group_id IN (0);"
[2020-06-06 10:06:20.554 8378] Regex whitelist: Querying groups for client 10.4.0.4: "SELECT id from vw_regex_whitelist WHERE group_id IN (0);"
[2020-06-06 10:06:20.554 8378] Regex whitelist: Enabling regex with DB ID 255 for client 10.4.0.4

So it looks to me like there is the difference in the code (when a new client connects at runtime the regex is not evaluated)

Further I checked the group membership re-checking function DL6ER implemented. When I understand it right then there should have been a reload for the client at around 01:57.
But I don‘t see an reload for 10.4.0.4 in the log.
I paste the whole output:


pi@dns-pi:~ $ grep Reloading /var/log/pihole-FTL.log -A3
[2020-06-06 00:03:50.561 8378] Reloading clinet groups after 3795 seconds
[2020-06-06 00:03:50.561 8378] Finalizing gravity statements for 10.0.1.254
[2020-06-06 00:03:50.561 8378] Initializing gravity statements for 10.0.1.254
[2020-06-06 00:03:50.561 8378] Querying gravity database for client with IP 10.0.1.254...
--
[2020-06-06 00:18:28.916 8378] Reloading clinet groups after 4673 seconds
[2020-06-06 00:18:28.916 8378] Finalizing gravity statements for 10.0.0.112
[2020-06-06 00:18:28.917 8378] Initializing gravity statements for 10.0.0.112
[2020-06-06 00:18:28.917 8378] Querying gravity database for client with IP 10.0.0.112...
--
[2020-06-06 00:23:04.425 8378] Reloading clinet groups after 4949 seconds
[2020-06-06 00:23:04.425 8378] Finalizing gravity statements for 10.0.0.177
[2020-06-06 00:23:04.426 8378] Initializing gravity statements for 10.0.0.177
[2020-06-06 00:23:04.426 8378] Querying gravity database for client with IP 10.0.0.177...
--
[2020-06-06 00:30:58.534 8378] Reloading clinet groups after 5423 seconds
[2020-06-06 00:30:58.535 8378] Finalizing gravity statements for 10.0.0.236
[2020-06-06 00:30:58.535 8378] Initializing gravity statements for 10.0.0.236
[2020-06-06 00:30:58.535 8378] Querying gravity database for client with IP 10.0.0.236...
--
[2020-06-06 00:42:09.823 8378] Reloading clinet groups after 6094 seconds
[2020-06-06 00:42:09.823 8378] Finalizing gravity statements for 10.0.0.234
[2020-06-06 00:42:09.823 8378] Initializing gravity statements for 10.0.0.234
[2020-06-06 00:42:09.823 8378] Querying gravity database for client with IP 10.0.0.234...
--
[2020-06-06 01:17:16.988 8378] Reloading clinet groups after 8201 seconds
[2020-06-06 01:17:16.988 8378] Finalizing gravity statements for 10.0.1.62
[2020-06-06 01:17:16.988 8378] Initializing gravity statements for 10.0.1.62
[2020-06-06 01:17:16.988 8378] Querying gravity database for client with IP 10.0.1.62...
